| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P10-6442HD-7TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Kaby Lake 7th Gen I3-7100U I5-7200U I7-7500U / Celeron® 3865U/3965U | RAM: | 1*DDR4 Socket Max 32GB |
|---|---|---|---|
| Display: | HDMI+DP | Serial Ports: | 6 *COM |
| USB: | 8* USB | Ethernet: | 2* Gigabit LAN |
| Dimension: | 209.4*122.6*70.6mm | Power: | DC12V Power Supply |
| Highlight: | 8USB Industrial Mini PC,I5-7200U Industrial Mini PC,II3-7100U ndustrial PC Mini |
||

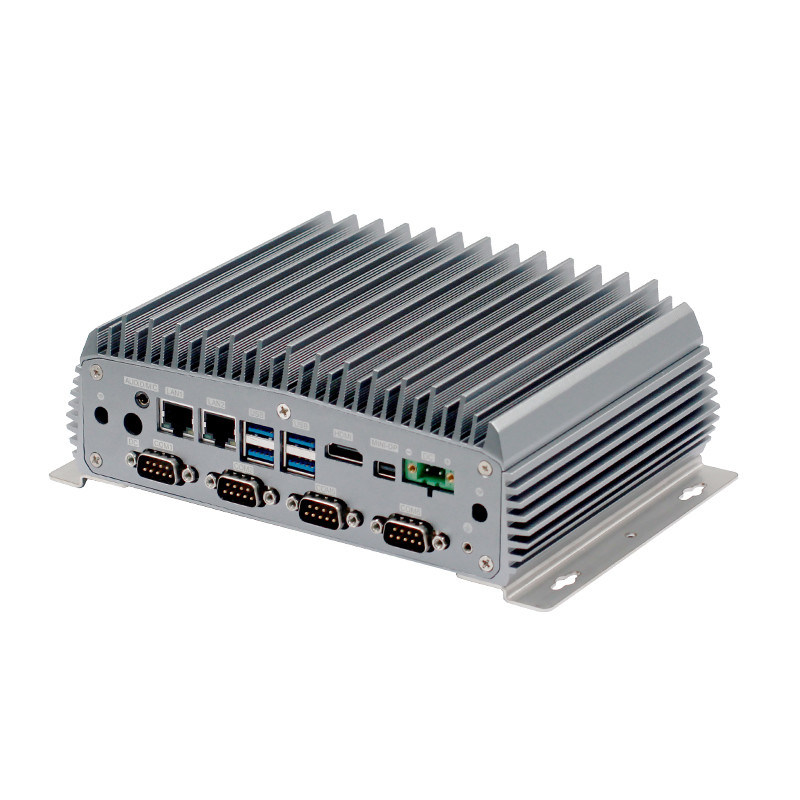

Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U X86 Industrial mini Pc 6COM 2LAN DP port Wide voltage DC power
Notice:
When you inquiry , you can choose the following Model
IPC-P10-6442HD-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor
IPC-P10-6442HD-7TH-3965U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 2.2GHz Processor
IPC-P10-6442HD-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor
IPC-P10-6442HD-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor
IPC-P10-6442HD-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor
Intel® Kaby Lake 7th gen i3-7100U/ i5-7200U/ i7-7500U /Celeron® 3865U/3965U X86 Industrial mini Pc 6COM 2LAN DP port Wide voltage DC power
Key features
Integrated Intel® Core™ Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U / Celeron® 3865U/3965U
1*DDR4 SODIMM 260 Socket Support MAX 32GB DDR4 RAM
Support HDMI+DP Synchronous or asynchronous display
1*DP++
1*HDMI
4*USB2.0, 4*USB3.1
2*Gigabit LAN
6*COM
1*SATA3.0
1* onboard SSD
DC 9-36V power supply
Size: 209.4*122.6*70.6mm
Support Intel AMT remote management technology
Specifications
| Processor | Integrated Intel® Core™ Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U / Celeron® 3865U/3965U |
| Chipset | Intel® Kaby Lake-u serial SOC |
| Ram socket | 1*DDR4 SODIMM 260 Socket,Support MAX 32GB DDR4 RAM |
| Network | 1*Intel I211AT,1*Intel I219-LM Gigabit Ethernet |
| Audio | Onboard HDA ALC662 |
| Storage |
1*SATA3.0 1* onboard SSD 1*Mini-SATA (choose one of onboard SSD or Mini SATA) |
| Rear panel interface |
2*LAN 1*HDMI 1*DP++ 4*COM(COM1 and 2 can be selected as RS232 or RS485 through cap skipping and BIOS, and com5 and 6 are RS232) 4*USB3.1 1*LINE-OUT/MIC IN 2*WIFI Antenna interface 1*DC |
| Front panel interface |
1 * quick switch button 1 * reset button 1 * power indicator 1 * hard disk indicator 4*USB2.0 2*COM RS232(COM3 can be selected as RS422 / RS485 through BIOS, and COM4 can be selected as RS232 or RS485 through cap skipping and BIOS) 1*GPIO |
| Chassis | Silver |
| Size | 209.4*122.6*70.6mm |
| Operating system | Windows7/Windows 8/Windows8.1 /Windows10/linux |
| Power Type | DC12V power supply |
| Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
