| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P18-6422VH-BT-E3845 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Bay Trail J1800 / J1900 / E3845 | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | HDMI+VGA | Serial Ports: | 6 *COM |
| USB: | 5*USB2.0, 1*USB3.0 | Ethernet: | 2* Gigabit LAN |
| Dimension: | 185.2*194*63.5mm | Power: | DC 12V Power Supply |
| Highlight: | Industrial Mini PC 2LAN,J1800 Industrial Mini PC,J1900 industrial fanless pc |
||
Intel® Bay Trail J1800 / J1900 / E3845 Fanless Industrial Mini PC 2 LAN 6 COM embedded computer
Notice
When you inquiry , you can choose the following Model :
IPC-P18-6422VH-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
IPC-P18-6422VH-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
IPC-P18-6422VH-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
Intel® Bay Trail J1800 / J1900 / E3845 Fanless Industrial Mini PC 2 LAN 6 COM embedded computer
Key features
Integrated Intel® Atom ® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
Onboard 2GB/4GB DDR3
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
5*USB2.0, 1*USB3.0
2*Gigabit LAN
6*COM
1* standard SATAII port
1*Mini-PCIe M-SATA Scoket
Single input DC power supply,12V-DC,+/-5%
Size: 185.2*194*63.5mm
Specifications
| Processor | CPU | Integrated Intel® Bay Trail J1800 / J1900 / E3845 Processor |
| CPU Package | BGA | |
| Chipset | Baytrail-D/I/M Processor | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Single Channel DDR3 1066/1333/1600MHz |
| Capacity | Onboard 2GB/4GB DDR3 | |
| Video | Graphic controller | Intel HD Graphics |
| HDMI | HDMI maximum resolution(1920*1080) | |
| VGA | VGA maximum resolution(2048*1536) | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2*Realtek RTL8111E-V PCI-E Gigabit Ethernet LAN,RJ45 ports |
| Radio | Controller | Onboard Realtek HD ALC662 chipset,provide 6 channels output (line-in,line-out,Mic) |
| Hardware monitor | Watchdog & Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |

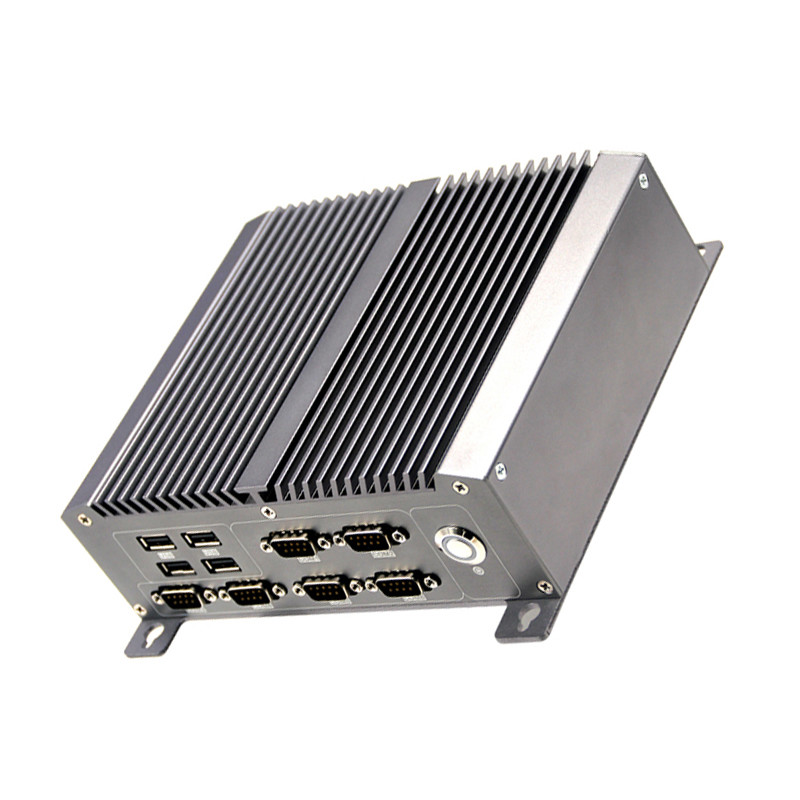

| Front I / O | Ports |
5*RS232, 1*RS422/RS485 4*USB2.0 1*Power switch |

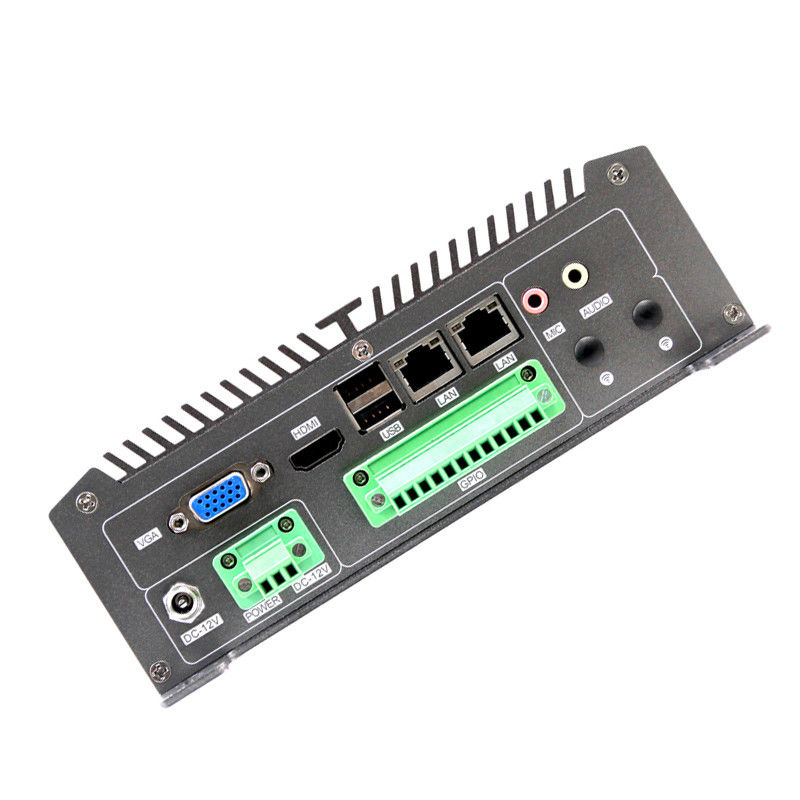

| Rear I / O | Ports |
1*USB2.0, 1*USB3.0 2*LAN 1*MIC 1*Audio 1*VGA 1*HDMI 1*DC power interface |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Extended bus | Mini-PCle | 1*Mini-PCIe socket,support PCIe,USB device |
| Storage | SATA | 1*SATA2.0 support 2.5 inch HDD |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Gray |
| Size | 185.2*194*63.5mm | |
| Material | 6063 |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
