| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P18-6422VH-4TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Haswell Dual Core I3-4010U / I5-4200U / I7-4500U | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | HDMI+VGA | Serial Ports: | 6 *COM |
| USB: | 2*USB3.0, 4*USB2.0 | Ethernet: | 2* Gigabit LAN |
| Dimension: | 185.2*194*63.5mm | Power: | DC 12V Power Supply |
| Highlight: | Mini PC 2 Lan Embedded,Mini PC 2 Lan 6COM,I3 Fanless Embedded Computers |
||
Intel® 4th gen Haswell dual core i3 i5 i7 X86 Industrial embedded PC 6 COM 2 LAN computer
Notice :
When you inquiry , you can choose the following Model :
IPC-P18-6422VH-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
IPC-P18-6422VH-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
IPC-P18-6422VH-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor
Intel® 4th gen Haswell dual core i3-4010U / i5-4200U / i7-4500U X86 Fanless Industrial Mini PC 6 COM 2 LAN computer
Key features
Integrated Intel® Core™ Haswell dual core i3-4010U / i5-4200U / i7-4500U processor
Onboard 2GB/4GB DDR3
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
1* standard SATAII port
1*Mini-PCIe M-SATA Scoket
Single input DC power supply,12V-DC,+/-5%
Size: 185.2*194*63.5mm
Package : Neutral-Packing ,Outer package size:315mm*276mm*132mm.G.W. 2.1Kgs
Advantage:
1.All aluminium shell,good at heat dissipation
2.Compact embedded system design;Fanless,completely mute.
3.Sealed design,dust-proof;shock-proof,very steady.
4.Support Gigabit Ethernet and WIFI.
5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.
Specifications
| Processor | CPU | Integrated Intel® Core™ Haswell dual core i3-4010U / i5-4200U / i7-4500U processor |
| CPU Package | BGA1168 | |
| Chipset | INTEL Haswell/Bordwell U SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333/1600MHz,maximum up to 16GB. |
| Capacity | Onboard 2GB/4GB DDR3 | |
| Video | Graphic controller | Intel® HD Graphics 4400 |
| HDMI | Resolution maximum:1920*1200 | |
| VGA | Resolution maximum:2048*1536 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2*RTL8111E-VL,10/100/1000Mbps,2x 1000M RJ45 LAN |
| Radio | Controller | Onboard Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF |
| Hardware monitor | Watchdog & Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |

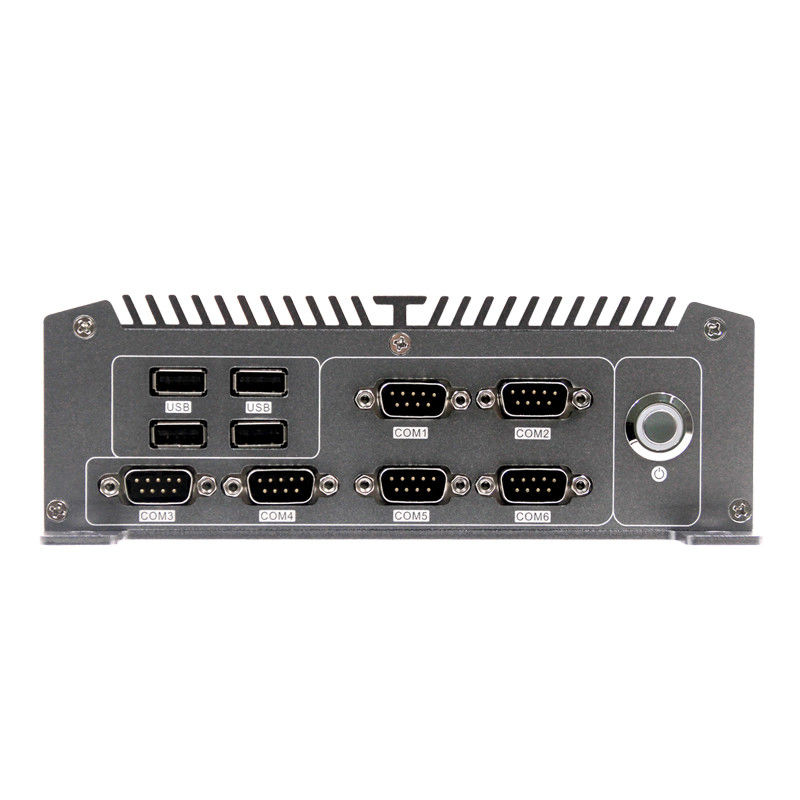

| Front I / O | Ports |
5*RS232, 1*RS422/RS485 4*USB2.0 1*Power switch |

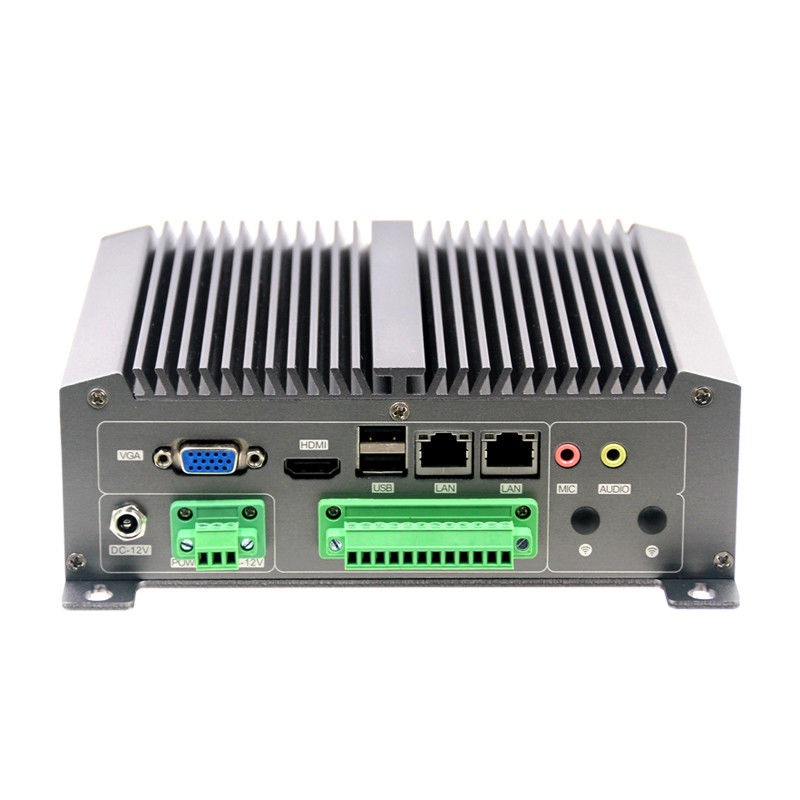

| Rear I / O | Ports |
2*USB3.0 2*LAN 1*MIC 1*Audio 1*VGA 1*HDMI 1*DC power interface |
| GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
| Extended bus | Mini-PCle | 1*Mini-PCIe socket,support PCIe,USB device |
| Storage | SATA | 1*SATA2.0 support 2.5 inch HDD |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Gray |
| Size | 185.2*194*63.5mm | |
| Material | 6063 |
