| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P15-6441VH-3TH-I7 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Core™ Ivy Bridge I7-3517U Processor | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | HDMI+VGA | Serial Ports: | 6 *COM |
| USB: | 8* USB | Ethernet: | 1* Gigabit LAN |
| Dimension: | 235*200*56.5mm | Power: | DC 12V Power Supply |
| Highlight: | I7-3517U Industrial Mini PC,Industrial Mini PC 8USB,Fanless 12v mini pc |
||

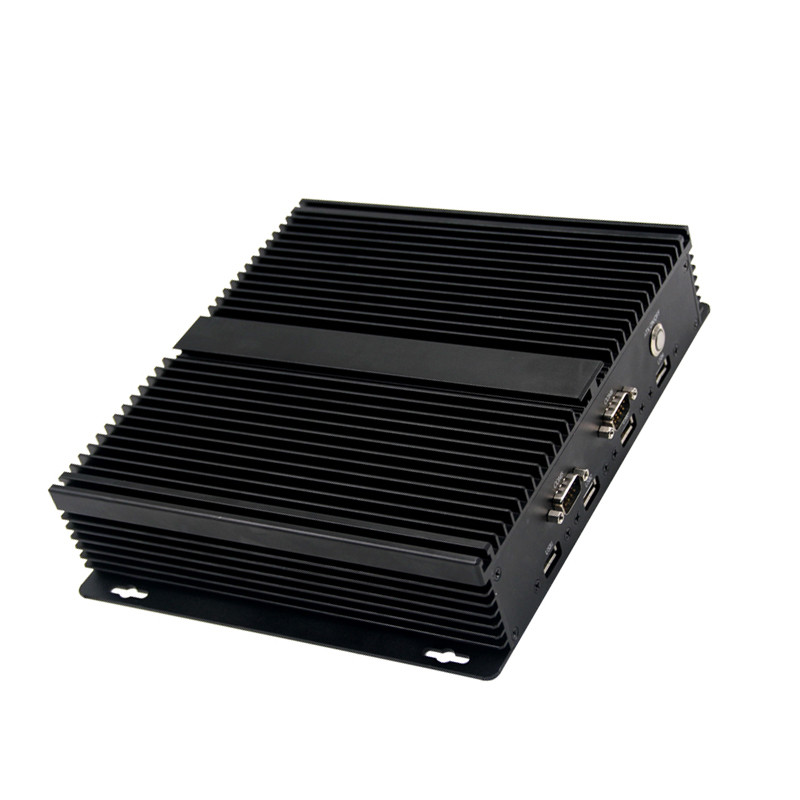

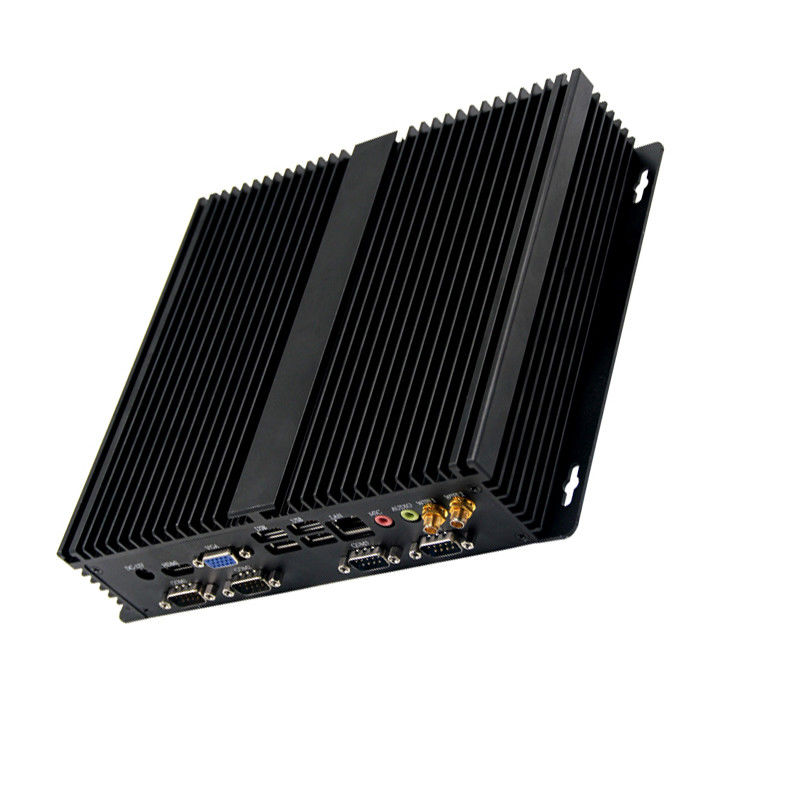

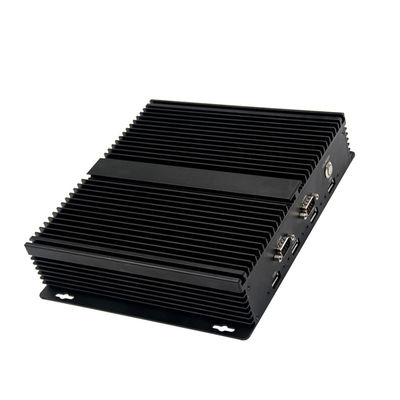

Intel® Ivy Bridge dual core i7-3517U Fanless Industrial Mini PC 8 USB 6COM computer
Key features
Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual core 4 threads 1.9~3.0Ghz
Onboard 2GB/4GB DDR3
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
4*USB3.0, 4*USB2.0
1*Gigabit LAN
6*COM
4* standard SATAII port
1*Mini-PCIe M-SATA Scoket
Single input DC power supply,12V-DC,+/-5%
Size: 235*200*56.5mm
Specifications
| Processor | CPU | Integrated Intel® Core™ Ivy Bridge i7-3517U Processor dual core 4 threads 1.9~3.0Ghz |
| CPU Package | BGA | |
| Chipset | Intel® HM77/HM76 Express Chipset Optional. | |
| BIOS | AMIEFI32MB SMT/DIP-SPI Flash ROM | |
| RAM | Technology framework | DDR3 memorz.y,1066/1333/1600MH |
| Capacity | Onboard 2GB/4GB DDR3 | |
| Video | Graphic controller | Intel® HD Graphics 4000 |
| HDMI | 1*HDMI | |
| VGA | 1*VGA | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Radio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Hardware monitor | Watchdog & Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Front I / O | Ports |
4*COM(COM3 AND COM4 IS RS422/RS485) 4*USB 1*POW-ON/OFF(switch)indicator light |
| Rear I / O | Ports |

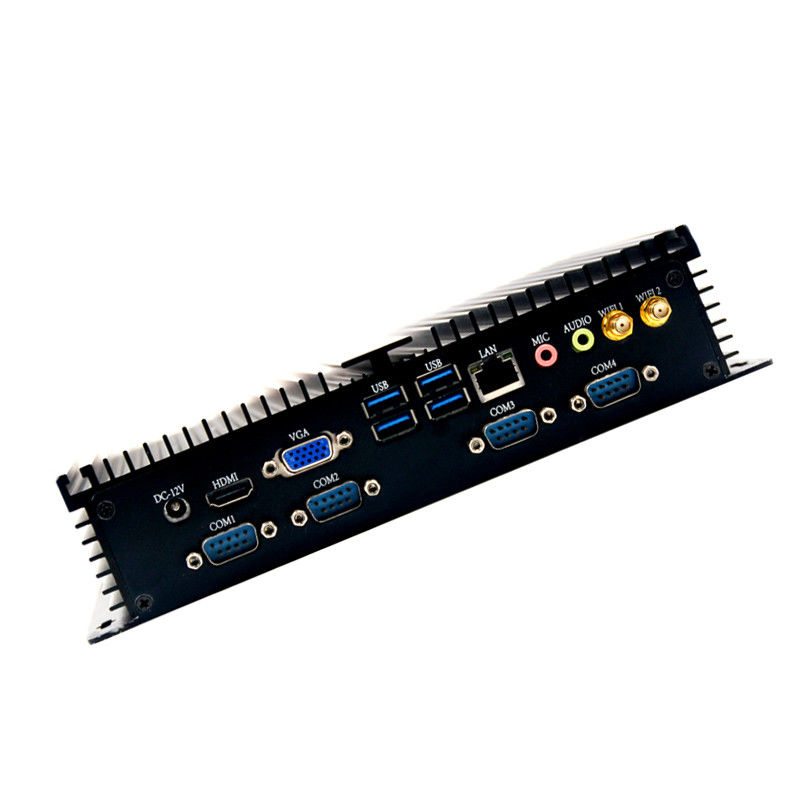

1*VGA 1*HDMI 4*USB3.0 1*LAN 1*line out 1*mic in 2*COM(RS232) 1*DC 1*Phoenix Terminals 3PIN power interface |
| Extended bus | Mini-PCle |
2*Mini-PCIE socket for WIFI/3G 1*SIM card slot for 3G |
| Storage | SATA | 4*SATA |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Black |
| Size | 235*200*56.5mm |
