| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P13-6422VH-BRW-N3160 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Braswell N3160 Quad Cores | RAM: | Onboard 2GB/4GB DDR3 |
|---|---|---|---|
| Display: | H-D-M-I+VGA | Serial Ports: | 6 *COM |
| USB: | 6* USB | Ethernet: | 2* Gigabit LAN |
| Dimension: | 236*176*85mm | Power: | DC12V Power Supply |
| Highlight: | N3160 Industrial Mini PC,Industrial Mini PC 6COM,Fanless dual lan mini pc |
||
Intel® Braswell N3160 quad cores Fanless Industrial Mini PC dual LAN 6COM embedded computer
Key features
Intel® Celeron® Braswell N3160 quad cores 4 threads 1.60~2.24Ghz
Onboard 2GB/4GB DDR3
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
1* standard SATAIII port
1*Mini- SATA Scoket
Single input DC 12V power supply
Size: 236*176*85mm
Specifications
| Processor | CPU | Intel® Celeron® Braswell N3160 quad cores 4 threads 1.60~2.24Ghz |
| CPU Package | BGA | |
| Chipset | Intel Braswell single chip | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Single Channel DDR3 1066/1333MHz |
| Capacity | Integrated 2GB/4GB DDR3 | |
| RAM Socket | 1 slot can be added, maximum 8GB memory expansion | |
| Video | Graphic controller | Intel® HD Graphics |
| VGA | VGA supports a maximum resolution of 2048x1536 | |
| HDMI | The maximum resolution supports 2560×1600 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2 * RTL8111E Gigabit Ethernet |
| Radio | Controller | Rui Qi HD ALC662 audio decoding (left and right channels + microphone) |
| Hardware monitor | Watchdog & Timer | 0-255 seconds, providing watchdog routines |
| Cooler | The default is no fan (optional fan) | |

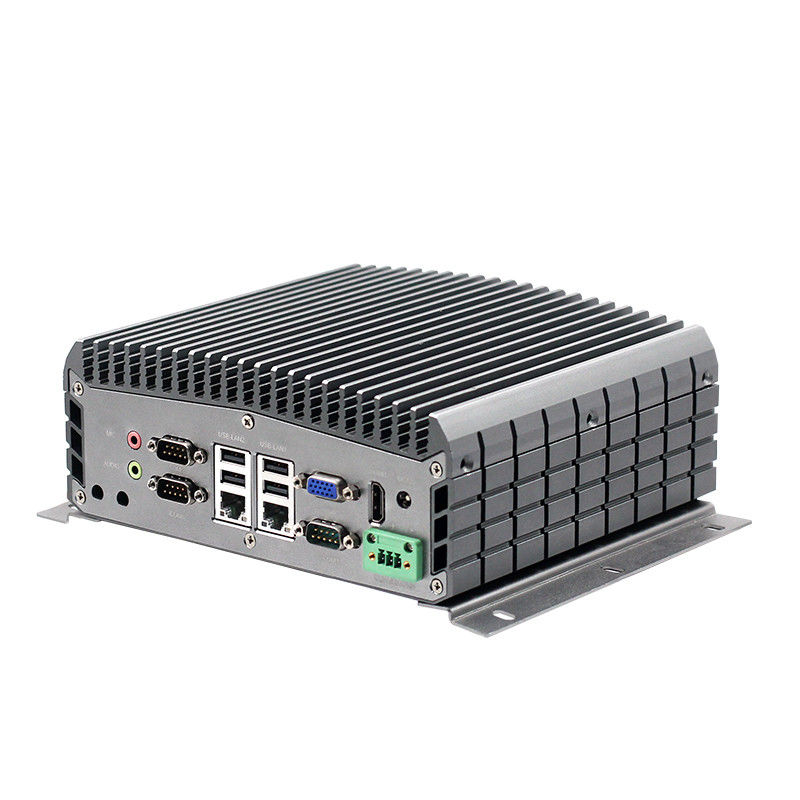

| Front I / O | Ports |
2*LAN 1*HDMI 1*VGA 3*COM(RS232) 4*USB2.0 1*DC 1*MIC-IN 1*LINE-OUT 2*WIFI antenna interface |
| Rear I / O | Ports |

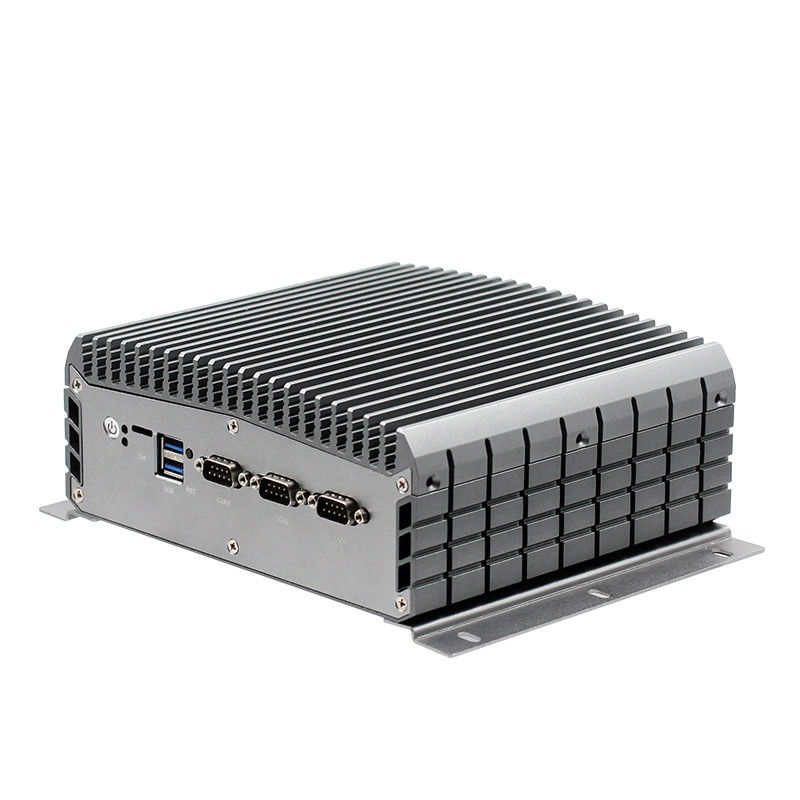

1*fast switch button 1*power indicator 1* hard disk indicator 2*USB3.0 3*COM(1*RS22,2*RS422/485 or 3*RS232) 1*SIM socket |
| Extended bus | Mini-PCle | 1*Mini-PCIe slot supporting PCIe and USB devices |
| Storage | SATA | 1*standard SATAIII interface, maximum transfer rate 6Gb/s (and SATA_HDD interface select one) |
| M-SATA | 1*M-SATA Scoket, support SANDISK protocol, maximum transmission rate 6gb/s | |
| NGFF | 1*NGFF interface (support WIFI and 3G/4G module) | |
| Power Supply | Power Type | DC12V power supply |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Silver |
| Size | 236*176*85mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
