| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P11-4423VH-11TH-6305 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Tiger Lake 6305 Processor | RAM: | Onboard 4G/8G/16G DDR4 Ram |
|---|---|---|---|
| Display: | H-D-M-I+VGA | Serial Ports: | 4 *COM |
| USB: | 6* USB | Ethernet: | 3* Gigabit LAN |
| Dimension: | 300*156*78mm | Power: | DC 9-36V Wide Voltage Power Supply |
| Highlight: | 3LAN Embedded Mini Computer,4COM Embedded Mini Computer,Embedded mini fanless computer |
||
Intel® 11 Gen Tiger Lake 6305 cpu Fanless embed mini computer 4COM 3LAN Wide voltage DC power
Key features
Integrated Intel® Celeron® Tiger Lake 6305 Processor 2 core 2 threads 1.8Ghz
Onboard 4G/8G/16G DDR4 Ram
1*DDR4 SO-DIMM Ram socket,Max support 32GB
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
4*USB2.0, 2*USB3.1
3*Gigabit LAN
4*COM
1*SATA_HDD
1*Mini SATA
1*NGFF(KEY-M) support PCIE X4 NVME hard disk
DC 9-36V power supply
Size: 300*156*78mm
Specifications
| Processor | CPU | Integrated Intel® Celeron® Tiger Lake 6305 Processor 2 core 2 threads 1.8Ghz |
| CPU Package | BGA | |
| Chipset | Intel® Tiger Lake serial SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Dual Channel DDR4 2400/2666/3200MHz |
| Capacity | Onboard 4G/8G/16G DDR4 Ram | |
| Ram Socket | 1*DDR4 SO-DIMM Ram socket,Max support 32GB | |
| Video | Graphic controller | Intel® UHD Graphics |
| HDMI | HDMI2.0 supports a maximum resolution of 4096*2304@60Hz | |
| VGA | VGA supports a maximum resolution of 2048x1536 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller |
2*intel I211 or I210 lan card 1*I219-LM lan card |
| Radio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
| Hardware monitor | Watchdog & Timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum fan radiator (supports automatic and manual fan speed adjustment) | |

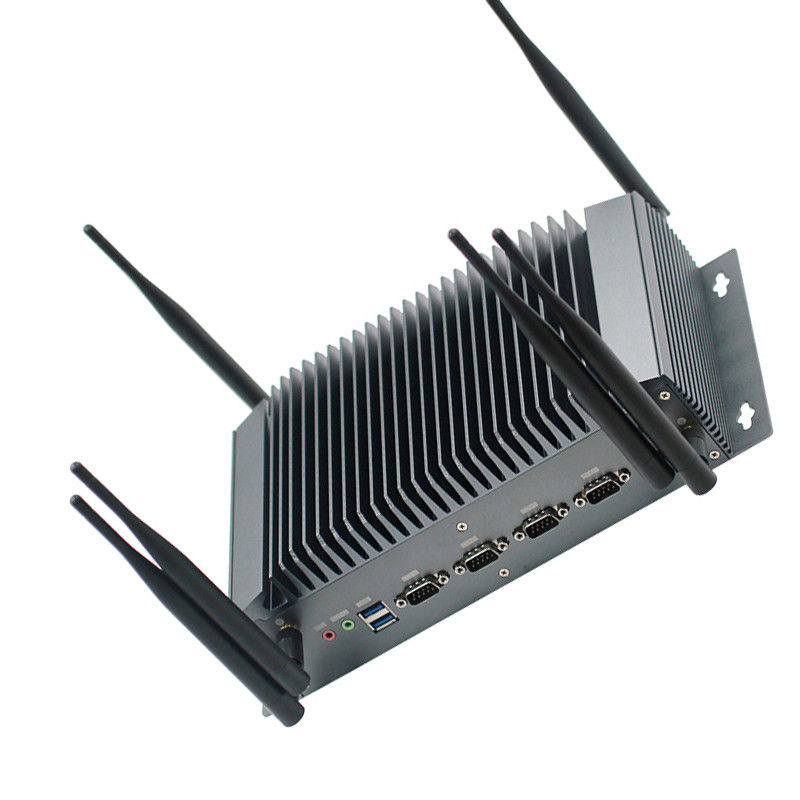

| Front I / O | Ports |
1*power switch 2*USB3.1(GEN2) 1*LINE OUT 1*MIC IN 4*COM 4*WIFI/4G/5G antenna interface |

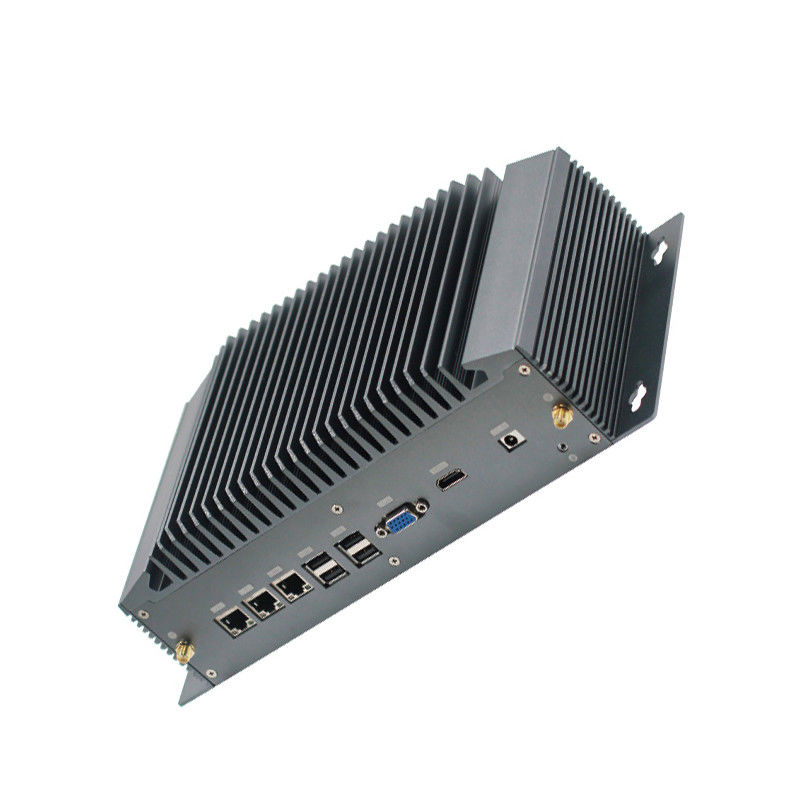

| Rear I / O | Ports |
3*LAN 1*HDMI 1*VGA 4*USB2.0 1*DC 2*WIFI/4G/5Gantenna interface |
| Extended bus | NGFF(KEY-E) | 1*NGFF port(KEY E ) |
| NGFF(KEY-B) | 1*NGFF port(KEY-B)Support 5G module | |
| Storage | SATA | 1*SATA_HDD hard disk,maximum transfer rate 6Gb/s |
| M-SATA | 1*mSATA socket support SANDISK protocol, maximum transfer rate 6Gb/s | |
| NGFF(KEY-M) | Support PCIE X4 NVME Hard disk | |
| Power Supply | Power Type | DC 9-36V power supply(a power supply with rated power above 80W is required) |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Gray |
| Size | 300*156*78mm |
