| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P08-6621VH-AP-J4205 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Pentium® Apollo Lake J4205 Quad Core | RAM: | Onboard 2G\4G DDR3 Memory |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 8* USB |
| Ethernet: | 1* Gigabit LAN | Display: | 1*VGA , 1*H-D-M-I |
| Dimension: | 209.4*122.5*70.6mm | Power: | Wide Votage DC 8-36V Power Supply |
| Highlight: | Industrial Mini PC 1LAN,Fanless Industrial Mini PC,6COM Fanless Mini Computer |
||
Intel® J4205 Apollo Lake quad core Fanless mini computer 6COM 1 LAN port Wide voltage DC power
Key features
Integrated Intel® Pentium® Processor Apollo Lake J4205 quad core 4 threads 1.5~2.6Ghz
Onboard 2G4G DDR3 memory
Can add one Ram socket , max to be 8GB Ram
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
6*USB2.0, 2*USB3.0
1*Gigabit LAN
6*COM
1*SATA3.0
1*Mini-SATA
Wide votage DC 8-36V Power supply
Size: 209.4*122.5*70.6mm
Specifications
| Processor | Integrated Intel® Pentium® Processor Apollo Lake J4205 quad core 4 threads 1.5~2.6Ghz |
| Chipset | Intel Apollo lakel single chipset |
| Ram socket |
Onboard 2GB4GB DDR3memory Can add one Ram socket , max to be 8GB Ram |
| Network | Onboard 1 Gigabit LAN |
| Audio | Onboard HDA ALC662 |
| Storage |
1*SATA3.0 1*onboard SSD 1*Mini-SATA (onboard SSD or Mini-SATA for alternative) |

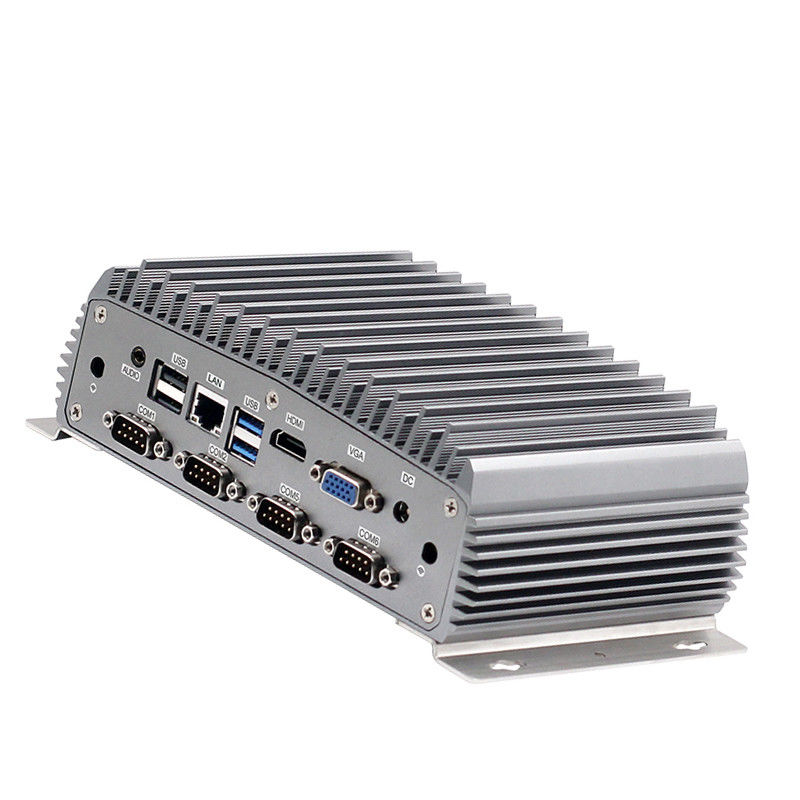

| Rear panel interface |
1*LAN 1*HDMI 1*VGA 4*COM(RS232) 2*USB2.0 2*USB3.0 1*DC 1*LINE-OUT 2*WIFI antenna interface |

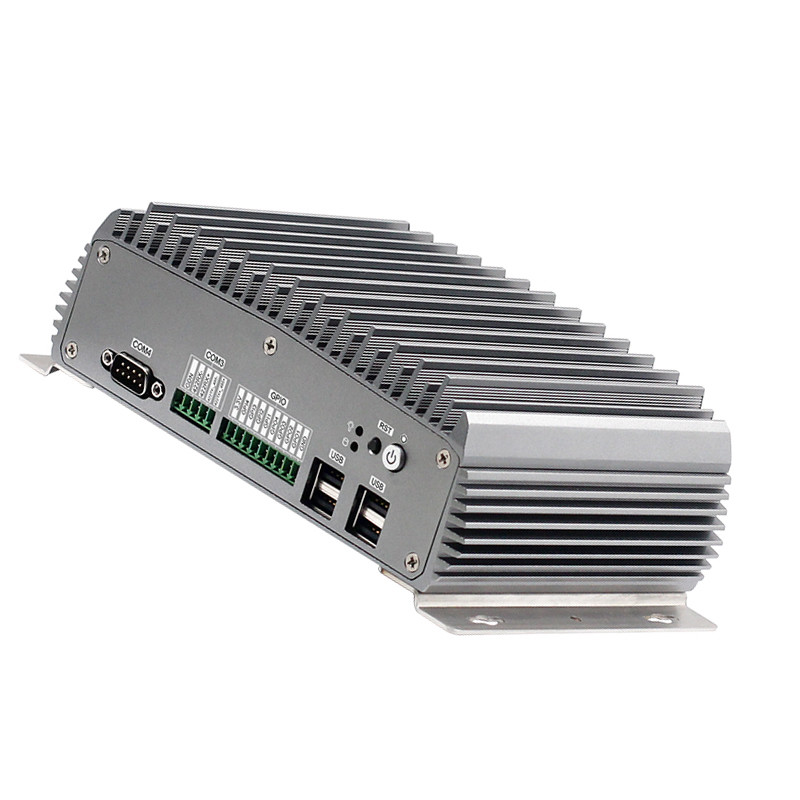

| Front panel interface |
1* fast switch button 1* power indicator 1* hard disk indicator 4*USB2.0 1*COM(RS232) 1*COM(RS422/485Phoenix terminal interface ) 1*GPIO |
| Chassis | Silver |
| Size | 209.4*122.5*70.6mm |
| Operating system | Windows7/Windows 8/Windows8.1 /Windows10/linux |
| Power Type | Wide votage DC 8-36V Power supply |
| Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing |
About shipping
1.Delivery Time:1 ~ 3 Days for one sample, 4~10 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
