| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P07-2422VHX4-8TH-I7 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Kaby Lake R I7-8550U Quad Cores | RAM: | 2*DDR4 SODIMM 260 Socket |
|---|---|---|---|
| Serial Ports: | 2 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | Display: | 1*VGA , 1*H-D-M-I |
| PCIe X4: | 2* PCIe X4 Slots | Dimension: | 153*197*212.5mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | 2NIC Industrial Mini PC,Industrial Mini PC Embedded,2COM industrial embedded pc |
||

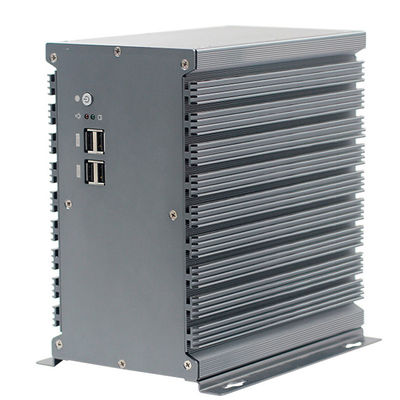

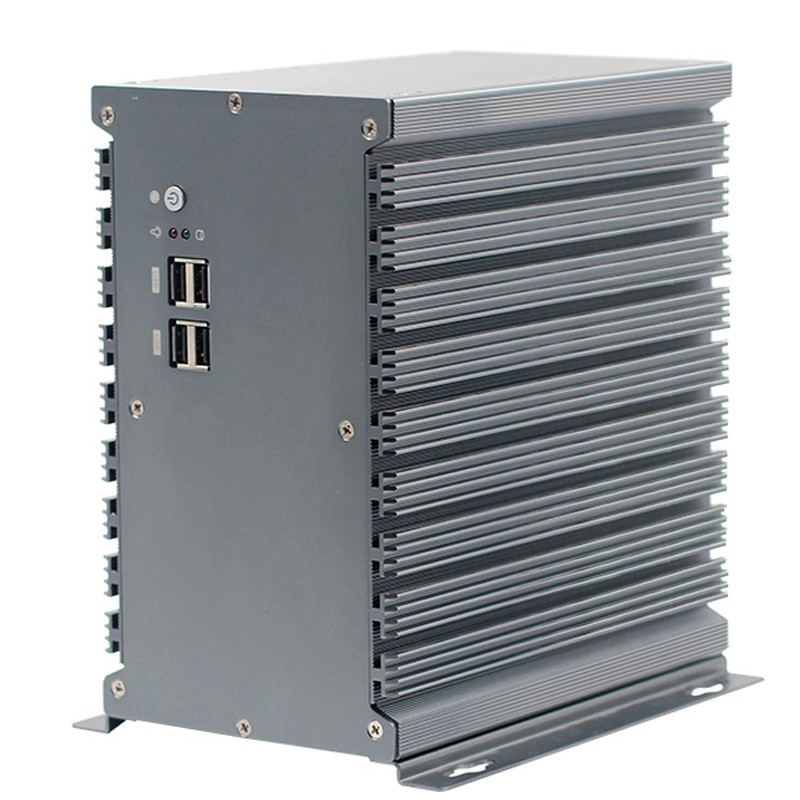

Intel® 8th generation i7-8550U quad core industrial embedded pc 2 NIC 2 COM 2 pcie x4
Key features
Integrated Intel® Core™ Kaby Lake R i7-8550U quad cores 8 threads 1.8~4.0Ghz Processor
2*DDR4 SODIMM 260 Socket
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
2*COM
2*pcie x4
1* standard SATAIII port
1*Mini SATA Scoket
DC 12V power supply
Size: 153*197*212.5mm
Specifications
| Processor | Integrated Intel® Core™ Kaby Lake R i7-8550U quad cores 8 threads 1.8~4.0Ghz Processor |
| Chipset | Intel Kaby Lake R --u series |
| Memory Slot | 2*DDR4 SODIMM 260 Socket |
| Network Card | 2*Intel I211 Giabit network card onboard |
| Audio | HDA ALC662 onboard |
| save setting |
1*SATA3.0 1*MSATA |
| Color | Silvery Grey |
| Panel port |
1*switch 1*HDD indicator 1*Power Indicator 4*USB2.0 |

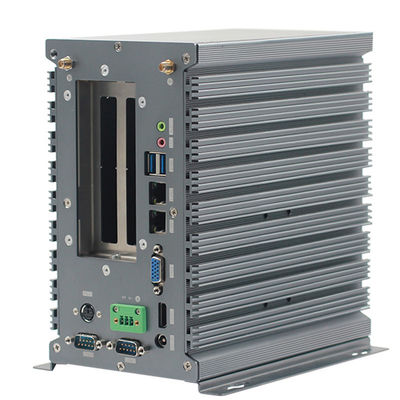

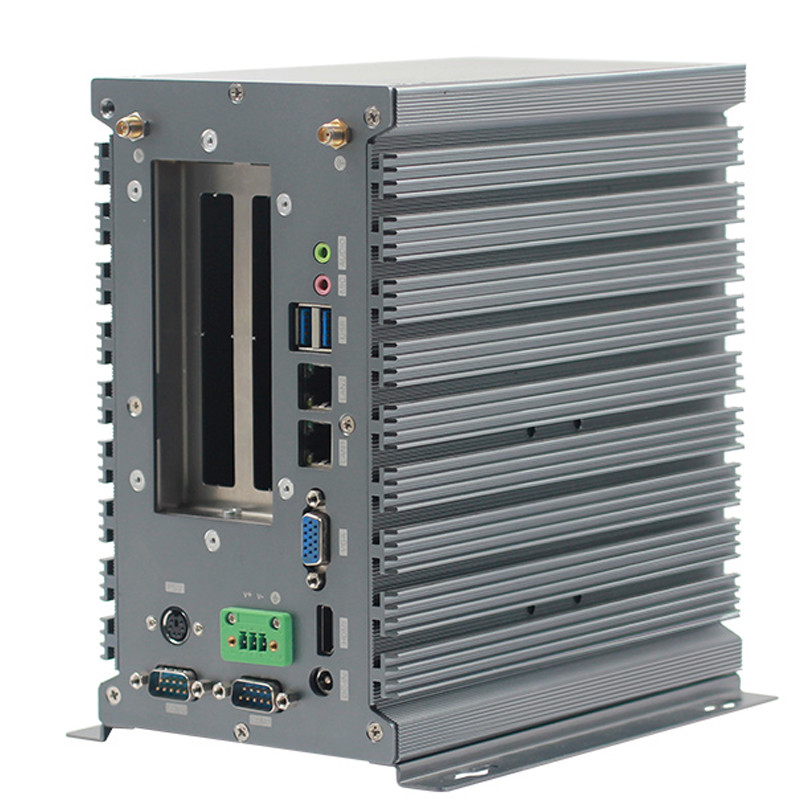

| Back panel port |
2*LAN 1*HDMI 1*VGA 2*COM 1*DC 1*Phoenix terminal power port 1*MIC-IN 1*LINE-OUT 2*USB3.0 1*PS/2 2*WIFI Antenna port Expansion port interface(Matching adapter card1:support 2*PCI Matching adapter card2:support 2*pcie x4(x2bandwidth)or matching adapter card3 is selected by Jump resistance:support 1*PCIEX4(X4bandwidth)+1*PCI matching adapter card4:support 1*PCIEX4(X2bandwidth)+1*PCI |
| Size | 153*197*212.5mm |
