| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P06-6711VH-BT-J1800 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Processor Bay Trail J1800 | RAM: | 1*DDR3 Up To 8GB |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 8* USB |
| Ethernet: | 1* Gigabit LAN | Display: | 1*VGA , 1*H-D-M-I |
| Dimension: | 214.5*200*52 Mm | Power: | DC 12V Power Supply |

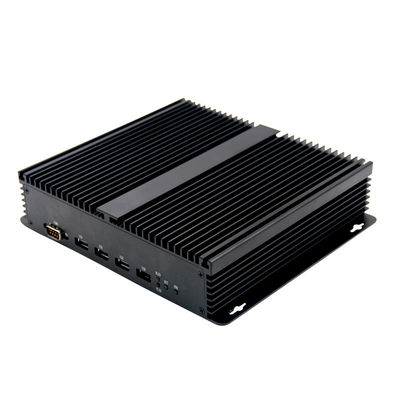

Celeron® Bay Trail J1800 Fanless Industrial Mini PC 6COM 1LAN VGA HDMI display computer
Key features
Integrated Intel® Celeron® Processor Bay Trail J1800 dual core 2 threads2.41~2.58Ghz
Single Chaneel 1*DDR3 1333/1600MHz,Max support 8G
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
7*USB2.0, 1*USB3.0
1*Gigabit LAN
6*COM
DC12V power supply(optional)
Size: 214.5*200*52 mm
Specifications
| Basic information | Name | Emedded Core4 Fanless Mini PC |
| Color | Black | |
| Size | 214.5*200*52 mm | |
| Material | 6063 | |
| Motherboard | Chipset | Intel single chispet |
| CPU | Integrated Intel® Celeron® Processor Bay Trail J1800 dual core 2 threads2.41~2.58Ghz | |
| Memory | Single Chaneel l *DDR3 1333/1600MHz,Max support 8G | |
| Graphic card | Intel HD Graphics | |
| Sound | Integrated Realtek ALC662 HD | |
| Storage | HDD | 2.5inch laptop hard disk |
| SSD | SSD | |
| EMMC | 32/64/128G(optional ) | |
| Interface | Display output | 1*HDMI |
| 1*VGA | ||
| Internet Output | 1*Intel I211 Lan Port | |
| USB | 7*USB2.0 1*USB3.0 | |
| Front I / O interface | 1*power supply | |
| 1*Reset switch | ||
| 1*Hard disk and Power led light | ||
| 1*COM | ||
| 4*USB2.0 | ||
| Rear I / O connector | 5*COM(COM3 for RS422/485) | |
| 3*USB2.0, 1*USB3.0 | ||
| 1*LAN | ||
| 1*MIC | ||
| 1*AUDIO | ||
| 1*DC-12V interface | ||
| 1*VGA | ||
| 1*HDMI | ||
| Operating system | Operating system | Windows7/Windows 8/Windows8.1 /Windows10/linux |
| Power Supply | Power Type | DC12V power supply |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing |
