| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P05-6422VHDP-4TH-I7 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ I7-4700MQ Quad Core | RAM: | Integrated 2GB/4GB DDR3L |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | Display: | 1*DP, 1*VGA , 1*H-D-M-I |
| Dimension: | 273.4*160*99.2mm | Power: | DC 12V Power Supply |
Intel® 4th generation i7-4700MQ X86 Fanless Industrial Mini PC 2LAN 6COM LPT DP port
Key features
Intel® Core™ i7-4700MQ Processor Quad cores 8 threads 2.4~3.4Ghz
Integrated 2GB/4GB DDR3L
Support VGA+HDMI+DP Synchronous or asynchronous display
1*VGA,1*HDMI, 1*DP
1*LPT
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
1* SATA3.0
1*Mini- SATA Scoket
Support DC 12V power supply

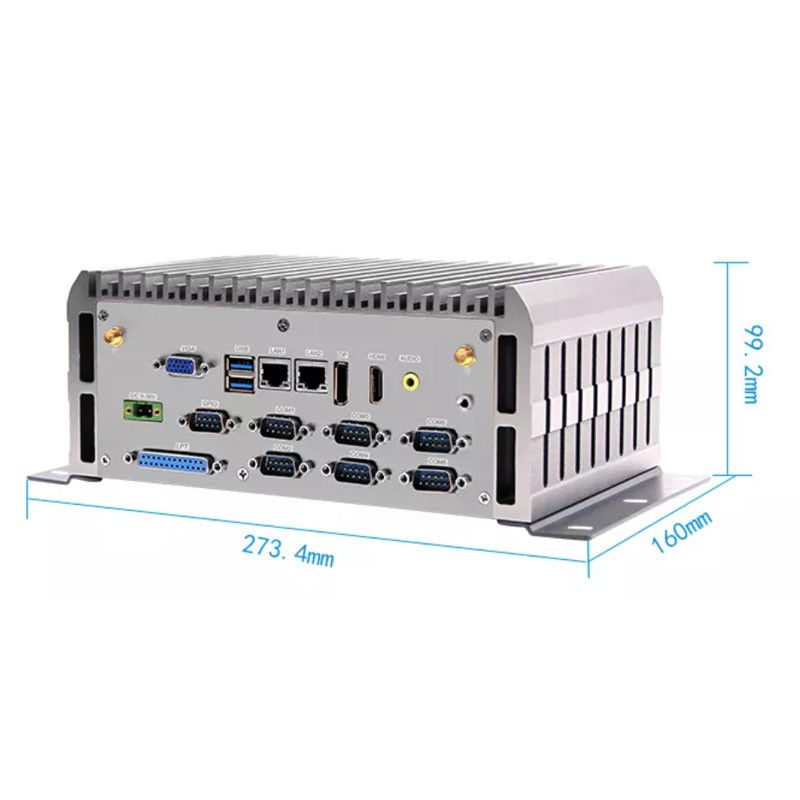

Size: 273.4*160*99.2mm
Specifications
| Size | 273.4*160*99.2mm |
| Processor | Intel® Core™ i7-4700MQ Processor Quad cores 8 threads 2.4~3.4Ghz |
| Chipset | QM87/HM86/HM87 high speed chipset |
| Memory socket |
Onboard 2GB/4GB DDR3L ram can add one memory slot, max can be 12GB |
| Network | Onboard 2*Intel I211 Gigabit Ethernet |
| Vedio | Onboard HDA ALC662 |
| Storage |
1*SATA3.0 1*SATA_HDD 1*Mini-SATA |
| Color | Sliver |

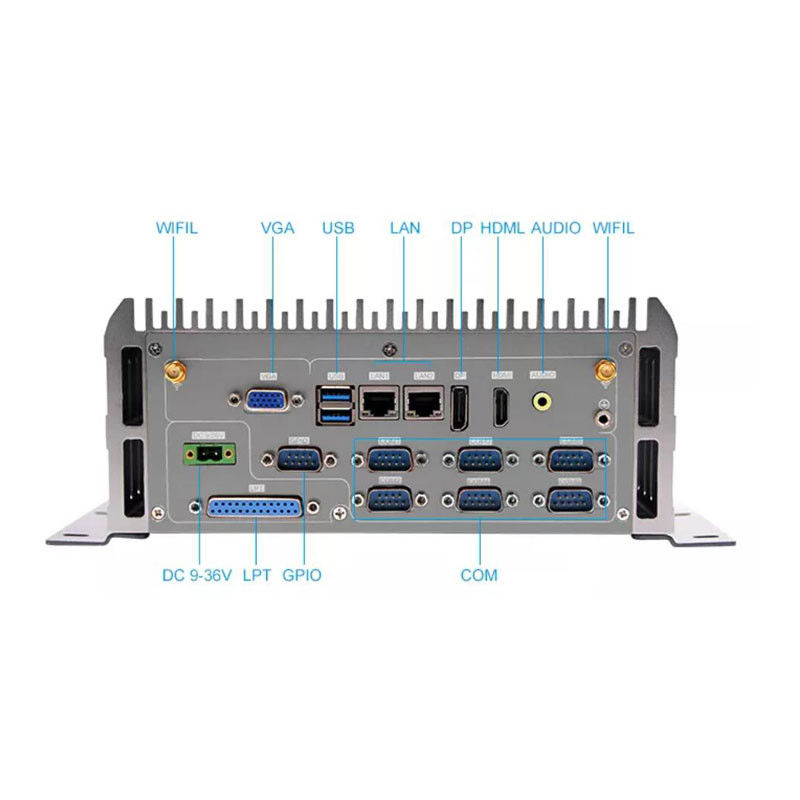

| Front I/O interface |
2*LAN 1*HDMI 1*VGA 1*DP 1*DC 5*RS232 1*RS422/RS485 1*LPT 1*DC 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface |

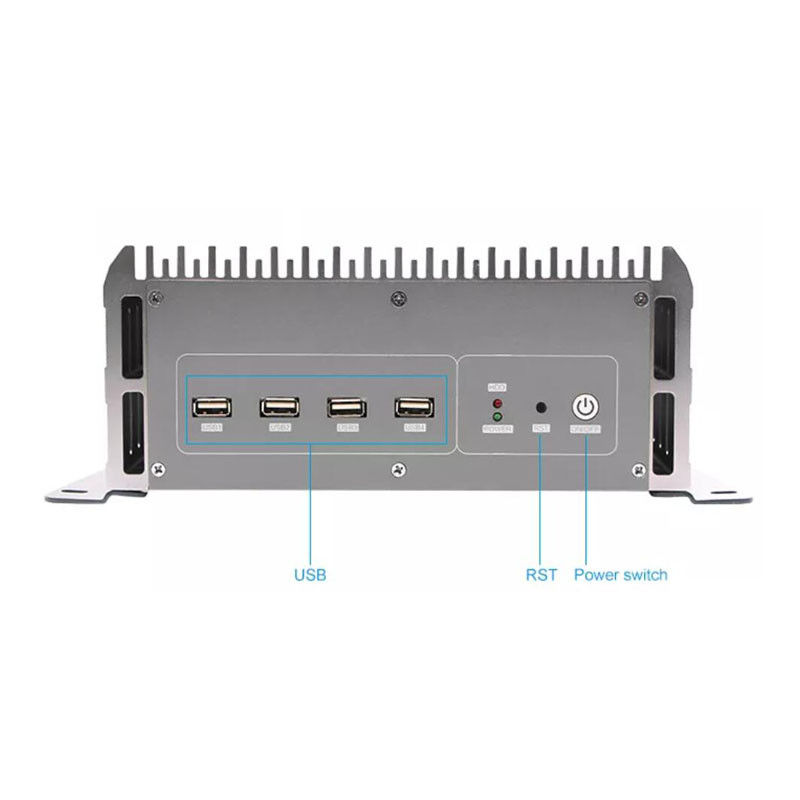

| Bear I/O interface |
4*USB2.0 1*power light 1*hard disk light 1* reset button 1* Switch button with indicator light |
| OS | Win7 Win10 Linux |
| Standard Equipment |
1*12V 5A adapter 1* power cable |
| Package | Neutral packaging, carton size Net weight 2.85kg |
