| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P03-6422VH-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Intel® 8th Generation I3-8130U / I5-8250U / I7-8550U | RAM: | Support 2 *DDR4 Socket |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | GPIO: | 1*GPIO |
| Dimension: | 241.8 * 196.5 * 64mm | Power: | DC 12V Power Supply |
Notice:
When you inquiry , you can choose the following Model
IPC-P03-6422VH-8TH-I3 Integrated Intel® Kaby Lake R i3-8130U dual cores 4 threads 2.2~3.4GHz Processor, 4 MB Intel® Smart Cache
IPC-P03-6422VH-8TH-I5 Integrated Intel® Kaby Lake R i5-8250U quad cores 8 threads1.6~3.4GHz Processor, 6 MB Intel® Smart Cache
IPC-P03-6422VH-8TH-I7 Integrated Intel® Kaby Lake R i7-8550U quad cores 8 threads1.8~4.0GHz Processor, 8 MB Intel® Smart Cache
Intel® 8th generation i3-8130U / i5-8250U / i7-8550U 2 LAN 6 serial port industry mini PC computer
Key features
Integrated Intel® 8th generation i3-8130U / i5-8250U / i7-8550U Processor
Support 2 *DDR4 SODIMM 260 Socket
Integrated Intel UHD 620 Graphics
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
6*COM
1*GPIO
1* standard SATAIII port
1*Mini SATA Scoket
DC 12V power supply
Size: 241.8 * 196.5 * 64mm
Specifications
| Processor | CPU |
Integrated Intel® 8th generation i3-8130U / i5-8250U / i7-8550U Processor |
| CPU package | BGA | |
| Chipset | Intel® Kaby lake R-U serial SOC | |
| BIOS | EFI BIOS | |
| Ram | Technology framework | Dual channel DDR4 2133Mhz |
| Socket | 2 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller |
Intel® UHD Graphics 620 (I3-8130U Graphics card graphics card model is related to CPU) |
| VGA | VGA supports maximum Resolution 2048x1536 | |
| (HDMI) | Maximum Resolution support (HDMI) 1.4 , 4096*2304@30HZ support 4K display | |
| Double display support | Support (HDMI)+VGA synchronous or Asynchronous display | |

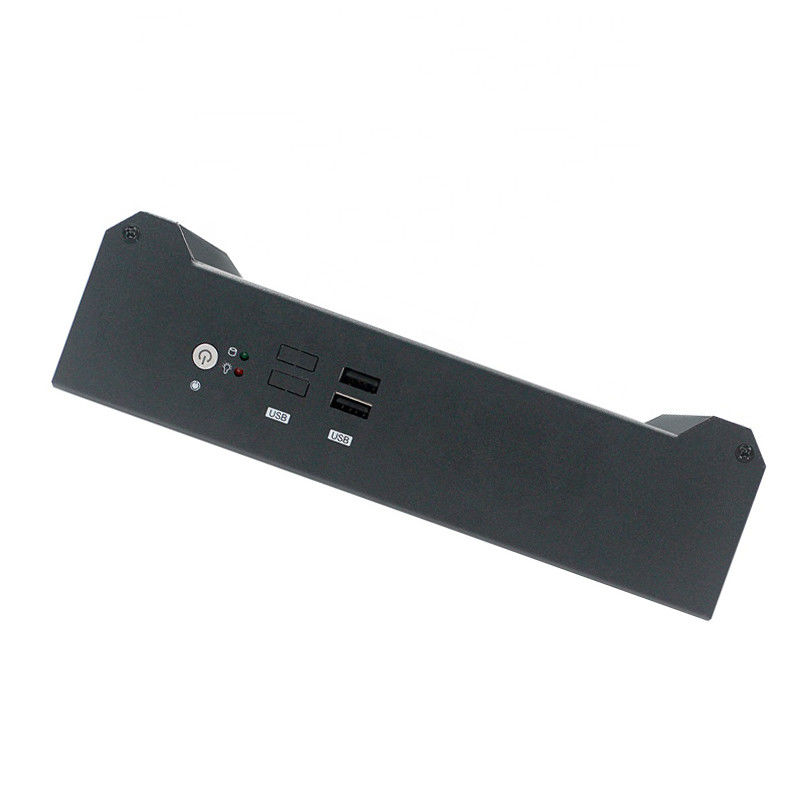

| Front panel | Ports | 4*USB2.0 1* switch button 1* Reset button 1* Hard disk indicator |

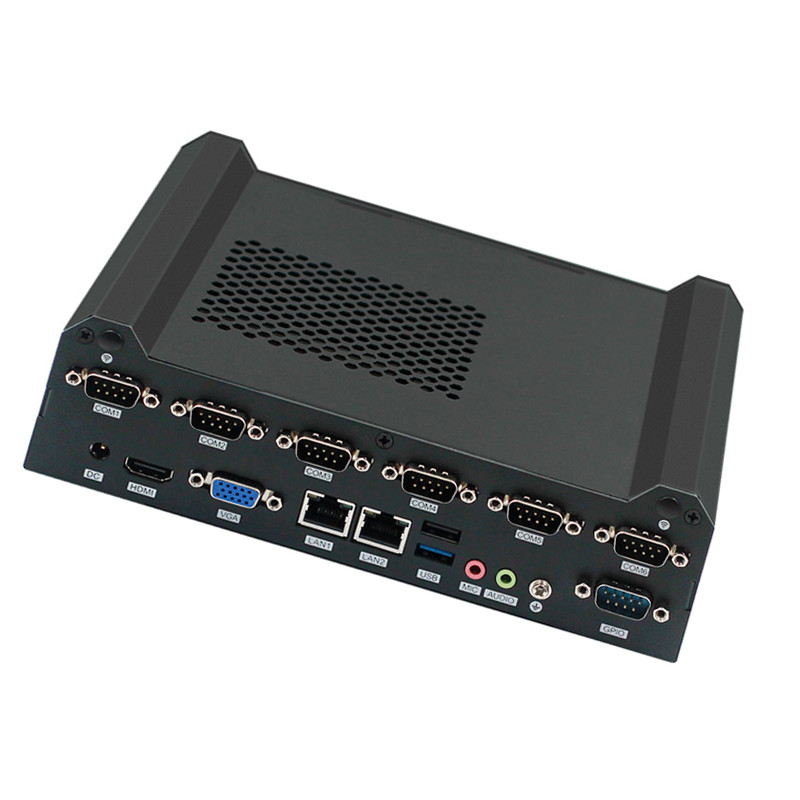

| Rear panel | Ports | 2*LAN 1*HDMI 1*VGA 6*COM 1*GPIO 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface |
| Network | controller | 2*Intel I211AT(when I / O interface is 4 USB, only 1 Intel I211AT card) |
| Audio | controller | Ruiyu HD ALC662 Audio Decoding (left and right microphone) |
| storage | SATA | 1 standard SATAIII interface, maximum transmission rate 6Gb/s |
| M-SATA | 1* Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s(Choose one of M-SATA and SATA1 interfaces.) | |
| Extended bus | Mini-PCle | 2 Mini-PCIe slots supporting PCIe and USB devices(When the USB89 pin header is available, only the PCIE protocol module is supported.) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provides watchdog routines |
| Cooler | Aluminum with fan radiator (support automatic and manual fan speed adjustment) | |
| Power Supply | Power supply type | DC 12V power supply |
| work environment | working temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| dimension | 241.8*196.5*64mm | |
| System | Windows7 Windows10 Linux |
Applications:
Industrial production control
Industrial manufacture
Mini pc motherboard
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
