| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P03-6422VH-6TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ I3-6100U / I5-6200U / I7-6500U / Celeron® 3855U | RAM: | Support 2 *DDR4 Socket |
|---|---|---|---|
| COM: | 6 *COM | USB: | 6* USB |
| Network: | 2* Gigabit LAN | GPIO: | 1*GPIO |
| Size: | 241.8 * 196.5 * 64mm | Power: | DC 12V Power Supply |
Notice:
When you inquiry , you can choose the following Model
IPC-P03-6422VH-6TH-3855U Integrated Skylake Intel® Celeron® 3855U Processor Dual core 2 threads 1.6Ghz processor
IPC-P03-6422VH-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
IPC-P03-6422VH-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor
IPC-P03-6422VH-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor
6 COM 2 NIC industrial mini PC 6th Gen Intel® Skylake dual core i3-6100U / i5-6200U / i7-6500U / Celeron® 3855U embedded computer
Key features
Integrated Intel® Core™ i3-6100U / i5-6200U / i7-6500U / Celeron® 3855U Processor
Support 2 *DDR4 SODIMM 260 Socket
Integrated Intel HD 520 Graphics
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
6*COM
1*GPIO
1* standard SATAIII port
1*Mini SATA Scoket
DC 12V power supply
Size: 241.8 * 196.5 * 64mm
Specifications
| Processor | CPU | Integrated Intel® Core™ i3-6100U / i5-6200U / i7-6500U / Celeron® 3855U Processor |
| CPU package | BGA | |
| Chipset | Intel® Skylake-U SOC | |
| BIOS | EFI BIOS | |
| Ram | Technology framework | Dual channel DDR4 2133Mhz |
| Socket | 2 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Intel HD Graphics 520(I3-6100U Graphics card);Graphics card type is related to CPU |
| VGA | VGA supports maximum Resolution 2048x1536 | |
| (HDMI) | Maximum Resolution support (HDMI) 1.4U 4096U 2304HZ support 4K display | |
| Double display support | Support (HDMI)+VGA synchronous or Asynchronous display | |

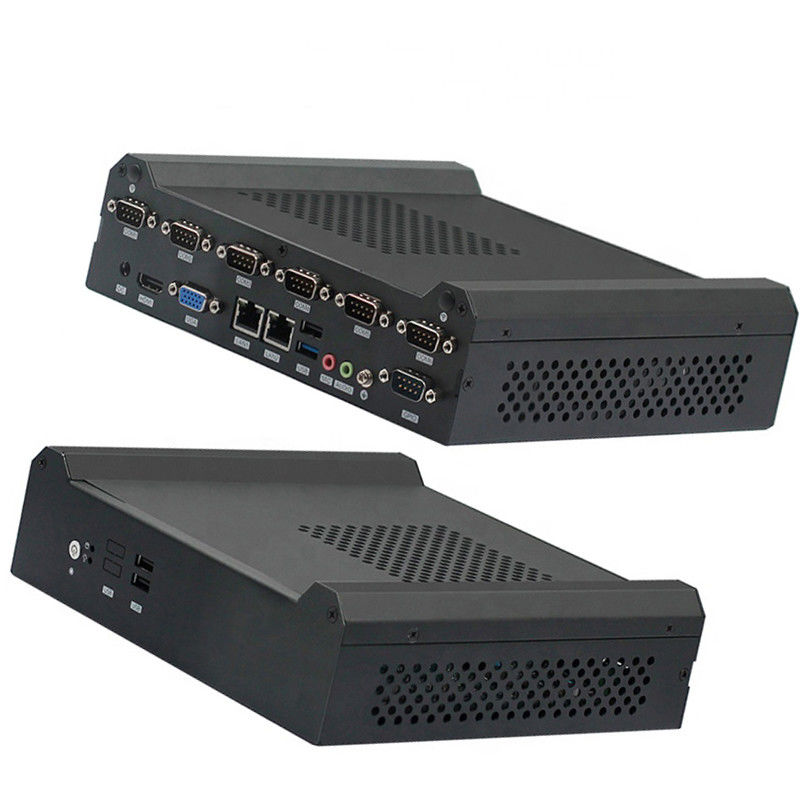

| Front panel | Ports | 4*USB2.0 1* switch button 1* Reset button 1* Hard disk indicator |

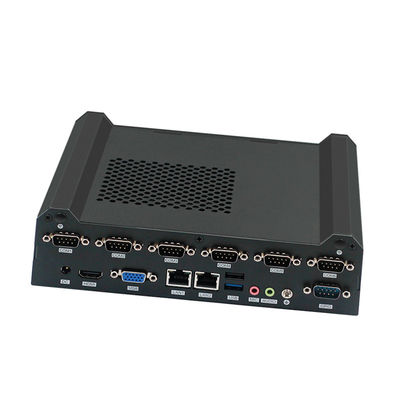

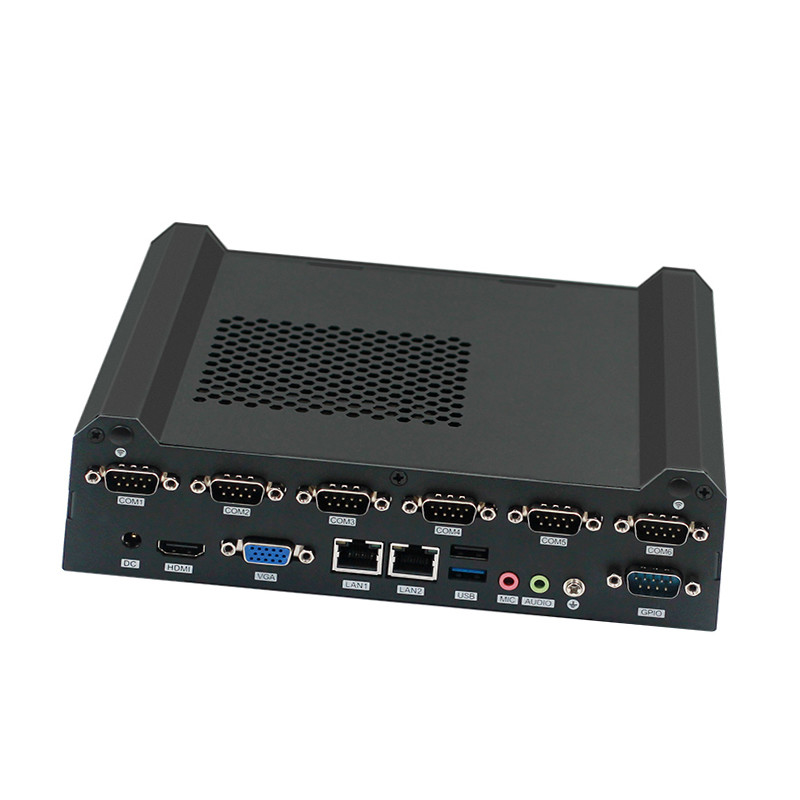

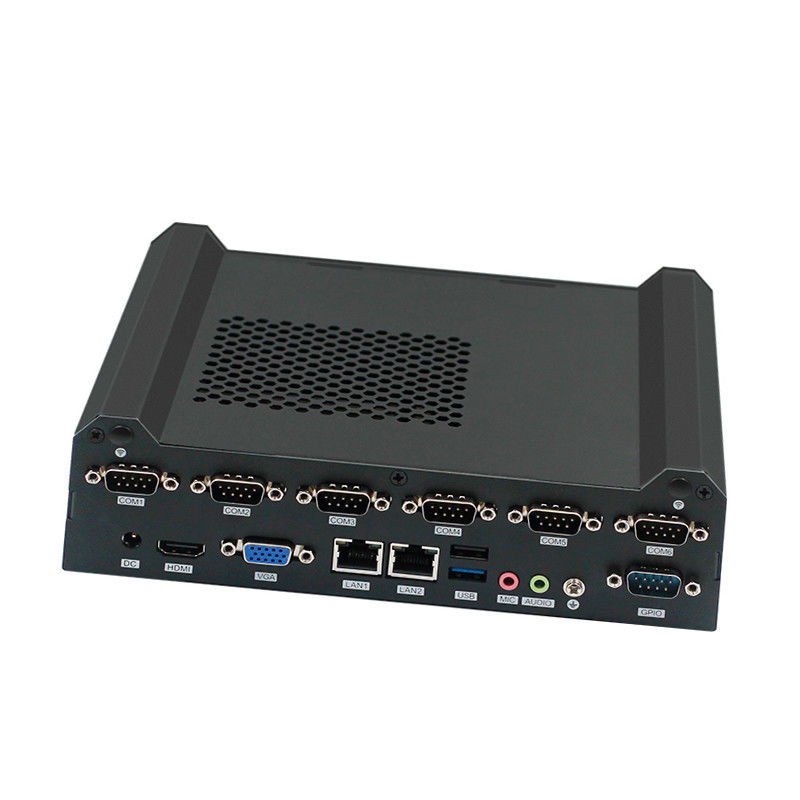

| Rear panel | Ports | 2*LAN 1*HDMI 1*VGA 6*COM 1*GPIO 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface |
| Network | controller | 2*Intel I211AT(when I / O interface is 4 USB, only 1 Intel I211AT card) |
| Audio | controller | Ruiyu HD ALC662 Audio Decoding (left and right microphone) |
| storage | SATA | 1 standard SATAIII interface, maximum transmission rate 6Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s(Choose one of M-SATA and SATA1 interfaces.) | |
| Extended bus | Mini-PCle | 2 Mini-PCIe slots supporting PCIe and USB devices(When the USB89 pin header is available, only the PCIE protocol module is supported.) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provides watchdog routines |
| Cooler | Aluminum with fan radiator (support automatic and manual fan speed adjustment) | |
| Power Supply | Power supply type | DC 12V power supply |
| work environment | working temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| dimension | 241.8*196.5*64mm | |
| System | Windows7 Windows10 Linux |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
