| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P03-6422VH-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ I3-3110M / I5-3210M / I7-3610M | RAM: | Support 1*DDR3 Up To 8GB |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | GPIO: | 1*GPIO |
| Dimension: | 241.8 * 196.5 * 64mm | Power: | DC 12V Power Supply |
Notice :
When you inquiry , you can choose the following Model :
IPC-P03-6422VH-3TH-i3 , Integrated Intel® Core™ Ivy Bridge i3-3110M dual cores 4 threads 2.4Ghz processor
IPC-P03-6422VH-3TH-i5 , Integrated Intel® Core™ Ivy Bridge i5-3210M dual cores 4 threads 2.5~3.1Ghz processor
IPC-P03-6422VH-3TH-I7, Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3~3.3Ghz
Ivy Bridge Intel® Core™ i3-3110M / i5-3210M / i7-3610M dual core industrial mini computer 6 serial port 2 NIC DC power
Key features
Integrated Ivy Bridge Intel® Core™ i3-3110M / i5-3210M / i7-3610M Processor
Support 1*DDR3 SODIMM 204 Socket,max support 8GB
Intel HD Graphics 4000
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
6*COM
1*GPIO
1* standard SATAIII port
1*Mini SATA Scoket
DC 12V power supply
Size: 241.8 * 196.5 * 64mm
Specifications
| Processor | CPU | Integrated Ivy Bridge Intel® Core™ i3-3110M / i5-3210M / i7-3610M Processor |
| CPU package | RPGA988 | |
| Chipset | HM77or QM77 | |
| BIOS | EFI BIOS | |
| Ram | Technology framework |
Singel channel DDR3 1066/1333/1600MHz |
| Socket | 1*DDR3 SODIMM 204 Socket,max support 8GB | |
| Video | Graphic controller | Intel HD Graphics 4000 |
| VGA | VGA supports maximum Resolution 2048x1536 | |
| (HDMI) | HDMI supports maximum resolution of 1920x1080 | |
| Double display support | Support (HDMI)+VGA synchronous or Asynchronous display | |

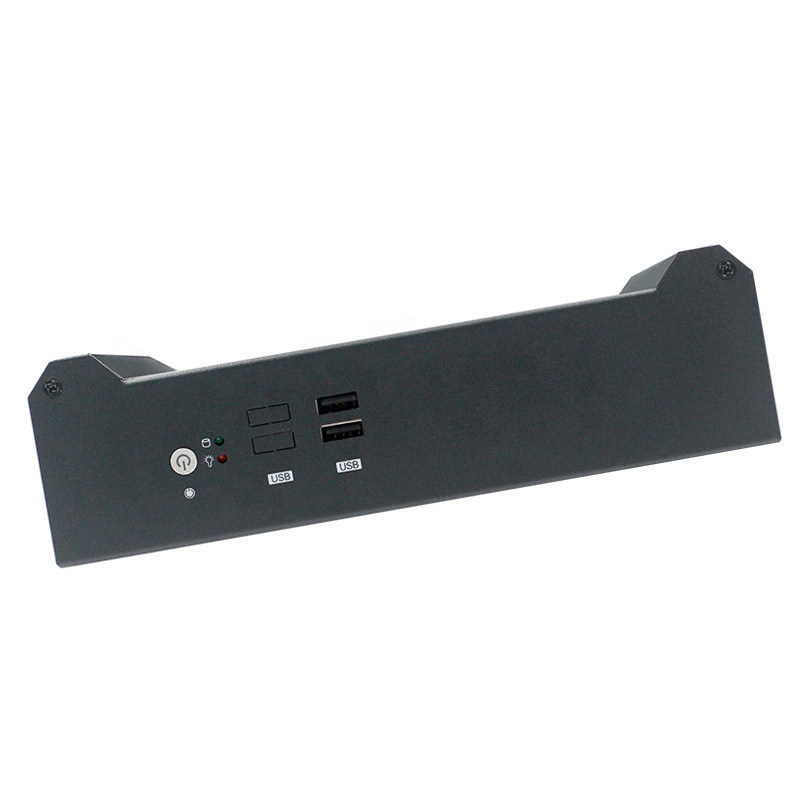

| Front panel | Ports | 4*USB2.0 1* switch button 1* Reset button 1* Hard disk indicator |
| Rear panel | Ports | 2*LAN 1*HDMI 1*VGA 6*COM 1*GPIO 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface |
| Network | controller | 2*RTL8111H Gigabit LAN |
| Audio | controller | Ruiyu HD ALC662 Audio Decoding (left and right microphone) |
| storage | SATA | 1 standard SATAIII interface, maximum transmission rate 6Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s(Choose one of M-SATA and SATA1 interfaces.) | |
| Extended bus | Mini-PCle | 2 Mini-PCIe slots supporting PCIe and USB devices(When the USB89 pin header is available, only the PCIE protocol module is supported.) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provides watchdog routines |
| Cooler | Aluminum with fan radiator (support automatic and manual fan speed adjustment) | |
| Power Supply | Power supply type | DC 12V power supply |
| work environment | working temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| dimension | 241.8*196.5*64mm | |
| System | Windows7 Windows10 Linux |
Industrial pc Applications
Industrial production control
Industrial manufacture
Automatic control equipment
POS machine
Queuing machine
Vending machine
Cashier computer
Bank ATM machine
Kiosk
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
HTPC to built your own home theater center
Office work
Training centers
