| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P03-6422VH-2TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Intel® Core™ I3-2310M / I5-2410M / I7-2620M | RAM: | Support 1*DDR3 Up To 8GB |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | GPIO: | 1*GPIO |
| Dimension: | 241.8 * 196.5 * 64mm | Power: | DC 12V Power Supply |
Notice :
When you inquiry , you can choose the following Model :
IPC-P03-6422VH-2TH-I3 , Integrated Intel® Core™ Sandy Bridge i3-2310M Processor dual cores 4 threads 2.1Ghz
IPC-P03-6422VH-2TH-I5 , Integrated Intel® Core™ Sandy Bridge i5-2410M Processor dual cores 4 threads 2.3~2.9Ghz
IPC-P03-6422VH-2TH-I7, Integrated Intel® Core™ Sandy Bridge i7-2620M Processor dual cores 4 threads 2.7~3.4Ghz
Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor industrial computer 6 COM 2 LAN mini pc DC power
Key features
Integrated Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor
Support 1*DDR3 SODIMM 204 Socket,max support 8GB
Intel HD Graphics 3000
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
6*COM
1*GPIO
1* standard SATAIII port
1*Mini SATA Scoket
DC 12V power supply
Size: 241.8 * 196.5 * 64mm
Specifications
| Processor | CPU |
Integrated Intel® Core™ i3-2310M / i5-2410M / i7-2620M Processor |
| CPU package | RPGA988 | |
| Chipset | HM77or QM77 | |
| BIOS | EFI BIOS | |
| Ram | Technology framework |
Singel channel DDR3 1066/1333/1600MHz |
| Socket | 1*DDR3 SODIMM 204 Socket,max support 8GB | |
| Video | Graphic controller | Intel HD Graphics 3000 |
| VGA | VGA supports maximum Resolution 2048x1536 | |
| (HDMI) | HDMI supports maximum resolution of 1920x1080 | |
| Double display support | Support (HDMI)+VGA synchronous or Asynchronous display | |

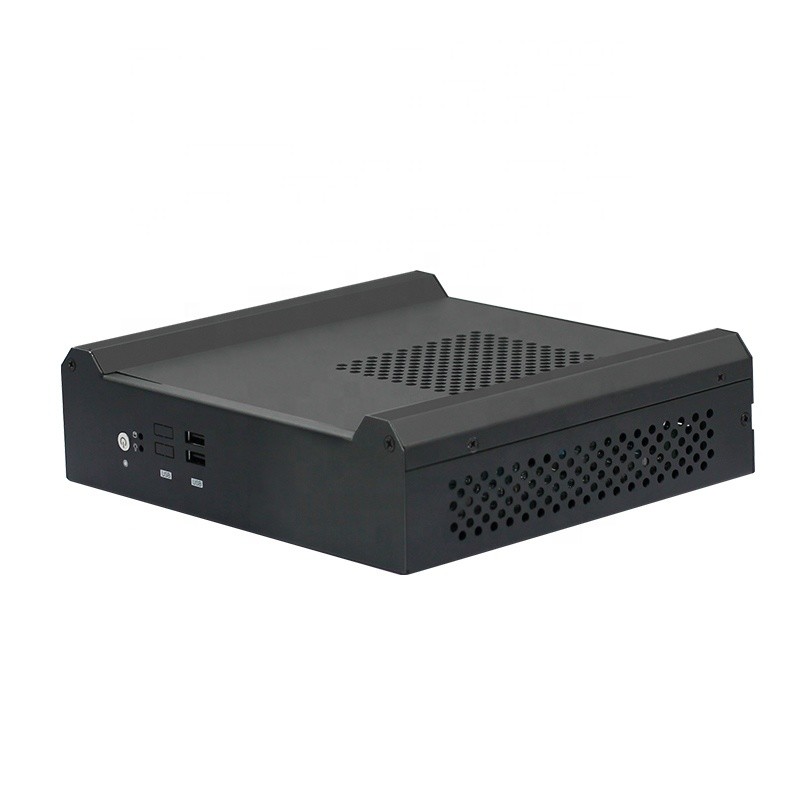

| Front panel | Ports | 4*USB2.0 1* switch button 1* Reset button 1* Hard disk indicator |

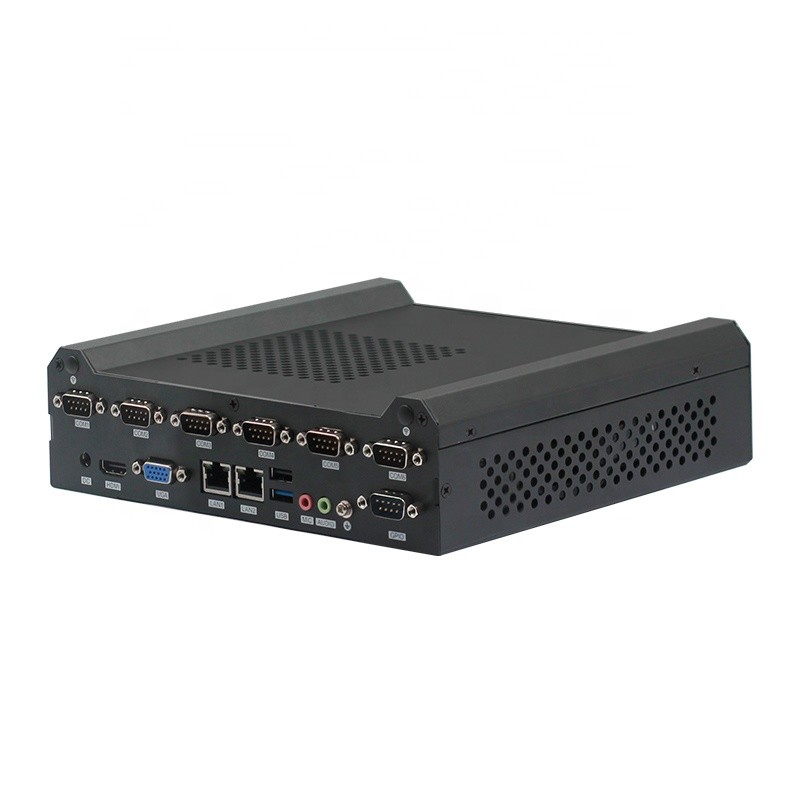

| Rear panel | Ports | 2*LAN 1*HDMI 1*VGA 6*COM 1*GPIO 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*WIFI Antenna interface |
| Network | controller | 2*RTL8111H Gigabit LAN |
| Audio | controller | Ruiyu HD ALC662 Audio Decoding (left and right microphone) |
| storage | SATA | 1 standard SATAIII interface, maximum transmission rate 6Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s(Choose one of M-SATA and SATA1 interfaces.) | |
| Extended bus | Mini-PCle | 2 Mini-PCIe slots supporting PCIe and USB devices(When the USB89 pin header is available, only the PCIE protocol module is supported.) |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provides watchdog routines |
| Cooler | Aluminum with fan radiator (support automatic and manual fan speed adjustment) | |
| Power Supply | Power supply type | DC 12V power supply |
| work environment | working temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| dimension | 241.8*196.5*64mm | |
| System | Windows7 Windows10 Linux |
