| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P02-6422VHLPT-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Processor J1900 Quad Cores | RAM: | Onboard 2GB/4GB DDR3L |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | LPT: | 1*LPT |
| Dimension: | 219.4 X 165 X 70.5mm | Power: | Single Input DC 12V Power Supply |

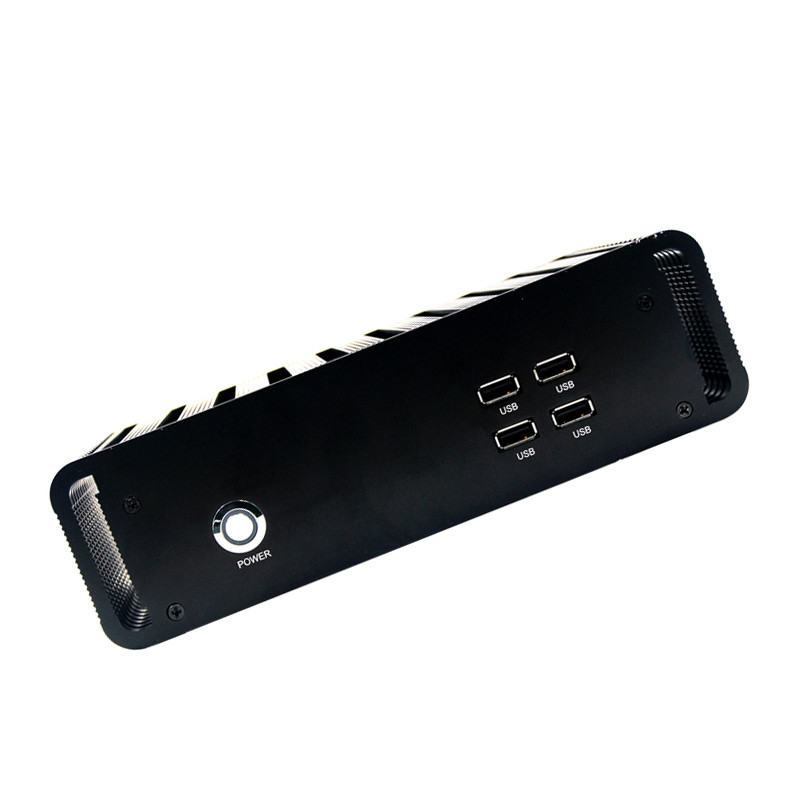

Quad Core J1900 Fanless Industrial Mini PC 6COM 2 gigabit LAN LPT port
Key features
Integrated Intel® Celeron® Processor J1900 quad cores 4 threads 2.00~2.42Ghz
Single channel DDR3L 1066/1333MHz
Integrated 2GB/4GB DDR3L
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
1*LPT
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
2* standard SATAII
1*Mini- SATA Scoket
Onboard 16/32/64G SSD/SATA(Optional)
Support DC 8-36V wide voltage supply
Size: 219.4 x 165 x 70.5mm
Specifications
| Processor | CPU | Integrated Intel® Celeron® Processor J1900 quad cores 4 threads 2.00~2.42Ghz |
| CPU Package | BGA | |
| Chipset | Baytrail-I/D/M Processor | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Single channel DDR3L 1066/1333MHz |
| Capacity | Integrated 2GB/4GB DDR3L | |
| Socket | 1x RAM slot ,max. 4GB RAM(Optional) | |
| Video | Graphic controller | Intel® HD Graphics |
| VGA | VGA Maximum resolution2048x1536 | |
| HDMI | HDMI Maximum resolution 1920x1080 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2*Intel I211Gigabit Ethernet LAN,RJ45 ports |
| Radio | Controller | Realtek HD ALC662 Audio((line-in,line-out,Mic) |
| Hardware monitor | Watchdog & Timer | 0-255second, Sample code optional |
| Cooler | Aluminum alloy heat sink with fan(fanless optional) | |
| Front I / O | Ports |
1*VGA 1*HDMI 2*USB3.0 2*LAN 6*COM 1*LPT 1*MIC 1*Audio |
| Rear I / O | Ports | 4*USB 2.0 |
| Extended bus | Mini-PCle | 2*Mini-PCIE socket for WIFI/3G |
| Storage | SATA | 2*standard SATAII |
| M-SATA | 1*Mini SATA socket for SSD | |
| SSD | Onboard 16/32/64G SSD/SATA(Optional) | |
| Power Supply | Power Type | Support DC 8-36V wide voltage supply |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Black |
| Size | 219.4 x 165 x 70.5mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
