| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P02-6422VHLPT-4TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Integrated Intel® Haswell 4th I3-4010U / I5-4200U / I7-4500U | Memory: | Integrated 2GB/4GB DDR3L |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Network: | 2* Gigabit LAN | LPT: | 1*LPT |
| Dimension: | 219.4 X 165 X 70.5mm | Power: | Single Input DC 12V Power Supply |
Notice :
When you inquiry , you can choose the following Model :
IPC-P02-6422VHLPT-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
IPC-P02-6422VHLPT-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
IPC-P02-6422VHLPT-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

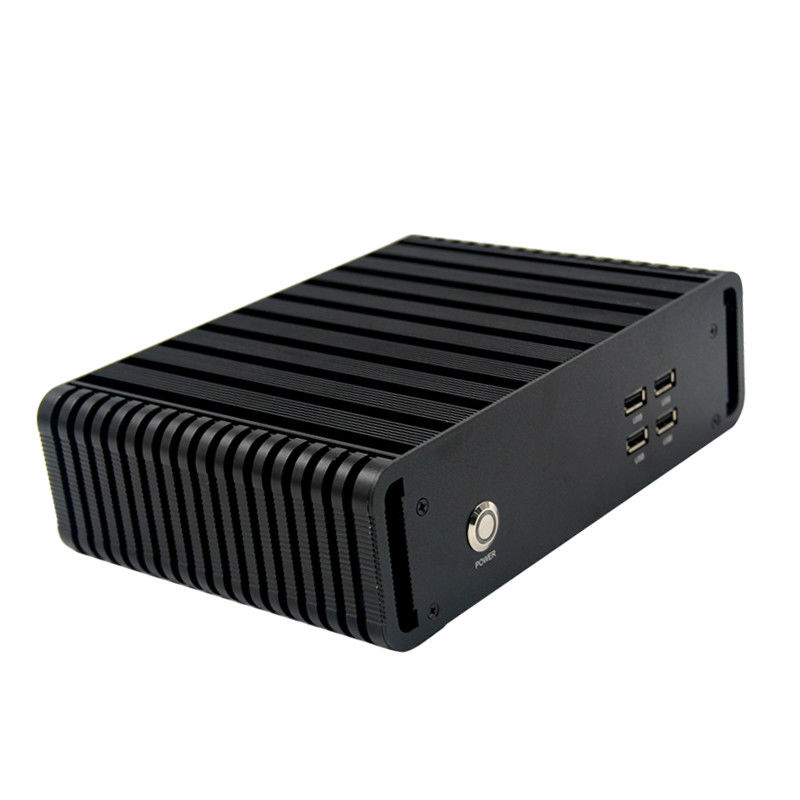

Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U Fanless Industrial Mini PC 6COM 2LAN LPT computer
Key features
Integrated Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U
Single channel DDR3L 1066/1333/1600MHz
Integrated 2GB/4GB DDR3L
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
1*LPT
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
2* standard SATAII
1*Mini- SATA Scoket
Onboard 16/32/64G SSD/SATA(Optional)
Single input DC power supply ,DC12V5A/7A
Size: 219.4 x 165 x 70.5mm
Specifications
| Processor | CPU | Integrated Intel® Haswell 4th i3-4010U / i5-4200U / i7-4500U |
| CPU Package | BGA1168 | |
| Chipset | INTEL Haswell U SOC | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Single channel DDR3L 1066/1333/1600MHz |
| Capacity | Integrated 2GB/4GB DDR3L | |
| Socket | Can add a Ram socket,max support 8GB Ram | |
| Video | Graphic controller | Intel® HD Graphics 4400 |
| VGA | VGA Maximum resolution2048x1536 | |
| HDMI | Resolution maximum:1920*1200 | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | 2*RTL8111E-V Gigabit network card, RJ45 interface |
| Radio | Controller | Realtek ALC662 HD AUDIO,Line-out, Mic-in onboard power amplifier(6W 8Ω)SPDIF |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan | |

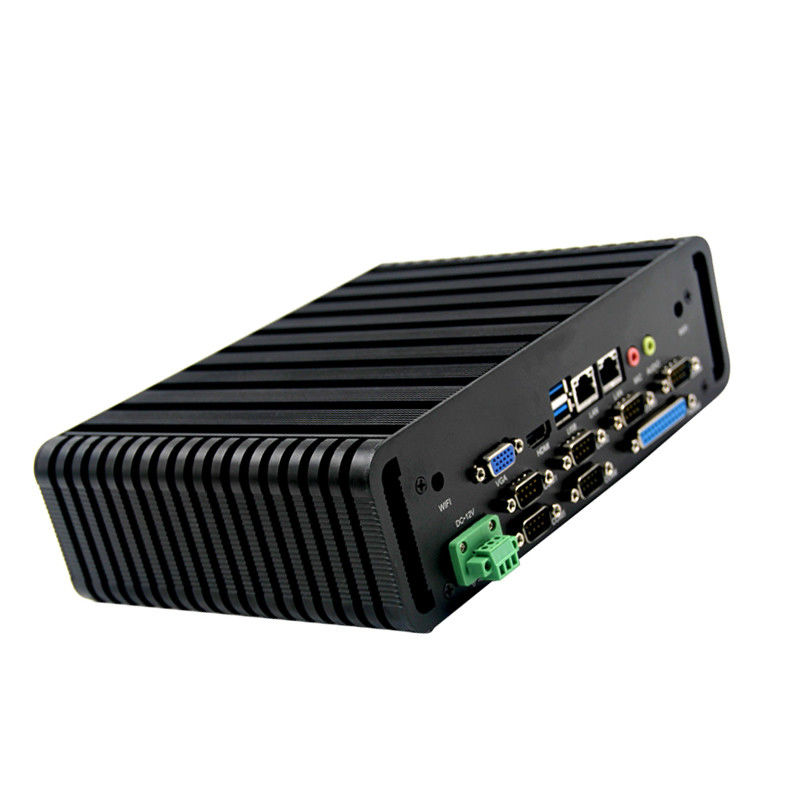

| Front I / O | Ports |
1*VGA 1*HDMI 2*USB3.0 2*LAN 6*COM 1*LPT 1*MIC 1*Audio |
| Rear I / O | Ports | 4*USB 2.0 |
| Extended bus | Mini-PCle | 1*miniPCIE socket ,supported PCIE and USB device |
| Storage | SATA | 2*standard SATAII |
| M-SATA | 1*Mini SATA socket for SSD | |
| Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Black |
| Size | 219.4 x 165 x 70.5mm |
