| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P02-6422VHLPT-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Ivy Bridge I3-3110M / I5-3210M / I7-3610QM / Celeron® 1037U | RAM: | 1*DDRⅢ UP TO 8GB |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | LPT: | 1*LPT |
| Dimension: | 219.4 X 165 X 70.5mm | Power: | Single Input DC 12V Power Supply |
Notice :
When you inquiry , you can choose the following Model :
IPC-P02-6422VHLPT-3TH-1037U , Integrated Celeronl® Ivy Bridge 1037U dual cores 4 threads 1.8Ghz processor
IPC-P02-6422VHLPT-3TH-i3 , Integrated Intel® Ivy Bridge i3-3110M dual cores 4 threads 2.4Ghz processor
IPC-P02-6422VHLPT-3TH-i5 , Integrated Intel® Ivy Bridge i5-3210M dual cores 4 threads 2.5~3.1Ghz processor
IPC-P02-6422VHLPT-3TH-I7 Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3~3.3Ghz
Intel® 3th Gen Ivy Bridge i3-3110M / i5-3210M / i7-3610QM / Celeron® 1037U Fanless Industrial Mini PC 6COM 2LAN LPT computer
Key features
Integrated Intel® Ivy Bridge i3-3110M / i5-3210M / i7-3610QM / Celeron® 1037U
1*DDRⅢ 800/1066/13333 SODIMM socket. maximum up to 8GB
Support VGA+HDMI Synchronous or asynchronous display
1*VGA
1*HDMI
1*LPT
2*USB3.0, 4*USB2.0
2*Gigabit LAN
6*COM
2* standard SATAII
1*Mini- SATA Scoket
Single input DC 12V power supply
Size: 219.4 x 165 x 70.5mm
Advantage:
1.All aluminium shell,copper fanless heat sink,with good heat dissipation.
2.Compact embedded system design;Fanless,completely mute.
3.Sealed design,dust-proof;shock-proof,very steady.
4.Support Gigabit Ethernet and WIFI.
5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.
Specifications
| Processor | CPU | Intel® Ivy Bridge i3-3110M / i5-3210M / i7-3610QM / Celeron® 1037U |
| CPU Package | RPGA988 | |
| Chipset | Intel® HM77/QM77 Express Chipset Optional. | |
| BIOS | UEFI BIOS | |
| RAM | Technology framework | DDR3 memory,1066/1333/1600MHz. |
| Capacity | SO-DIMM socket,maximum up to 8GB | |
| Video | Graphic controller | Intel® HD Graphics 4000 |
| VGA | 1* VGA | |
| HDMI | 1*HDMI | |
| Double display support | Support VGA+HDMI Synchronous or asynchronous display | |
| Network | Controller | Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Radio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Hardware monitor | Watchdog & Timer | 0-255 seconds |
| Cooler | Aluminum heat sink(fan or fanless) | |

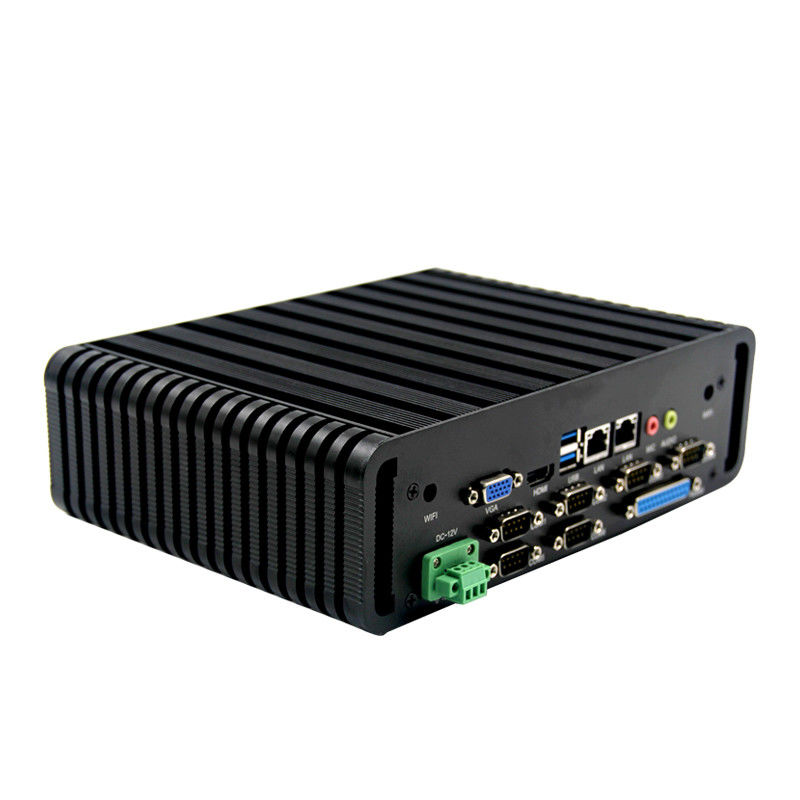

| Front I / O | Ports |
1*VGA 1*HDMI 2*USB3.0 2*LAN 6*COM 1*LPT 1*MIC 1*Audio |

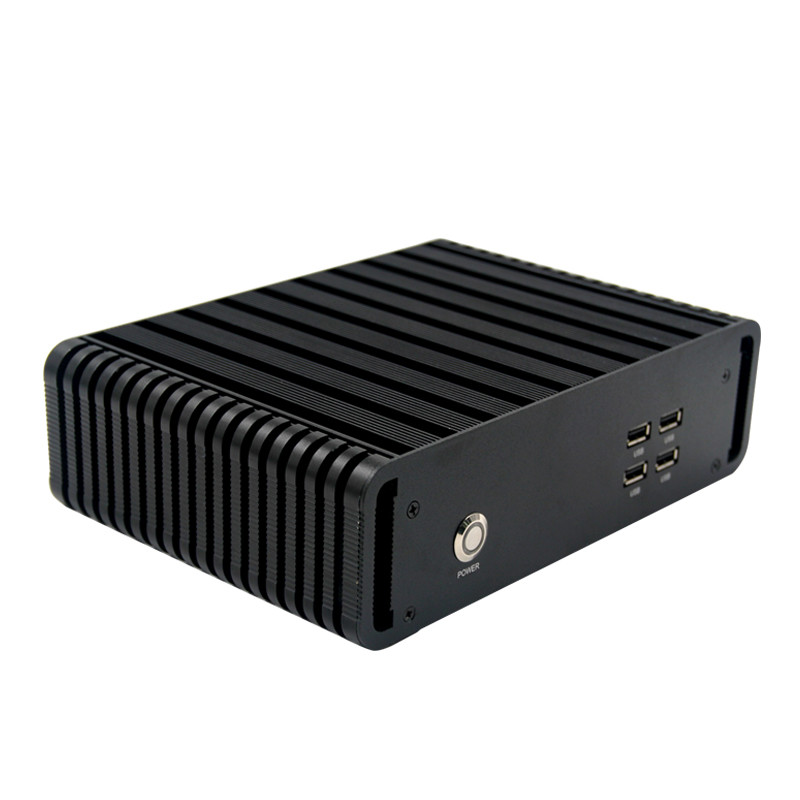

| Rear I / O | Ports | 4*USB 2.0 |
| Extended bus | Mini-PCle | 1*Mini-PCIE socket for WIFI/3G |
| Storage | SATA | 2*standard SATAII |
| M-SATA | 1*Mini SATA socket for SSD | |
| Power Supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing | |
| Case | Color | Black |
| Size | 219.4 x 165 x 70.5mm |
