| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-P01-6422VH-GN |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Gemini Lake J4005/ J4105/ J4125/ J5005/ N4100/ N5000 | RAM: | DDR4 Up To 8G |
|---|---|---|---|
| Serial Ports: | 6 *COM | USB: | 6* USB |
| Ethernet: | 2* Gigabit LAN | Dimension: | 134*126*46.8 Mm |
| Power: | Wide Voltage Power Supply DC12-19V | ||
| Highlight: | N4100 Industrial Fanless Mini PC,N5000 Industrial Fanless Mini PC |
||

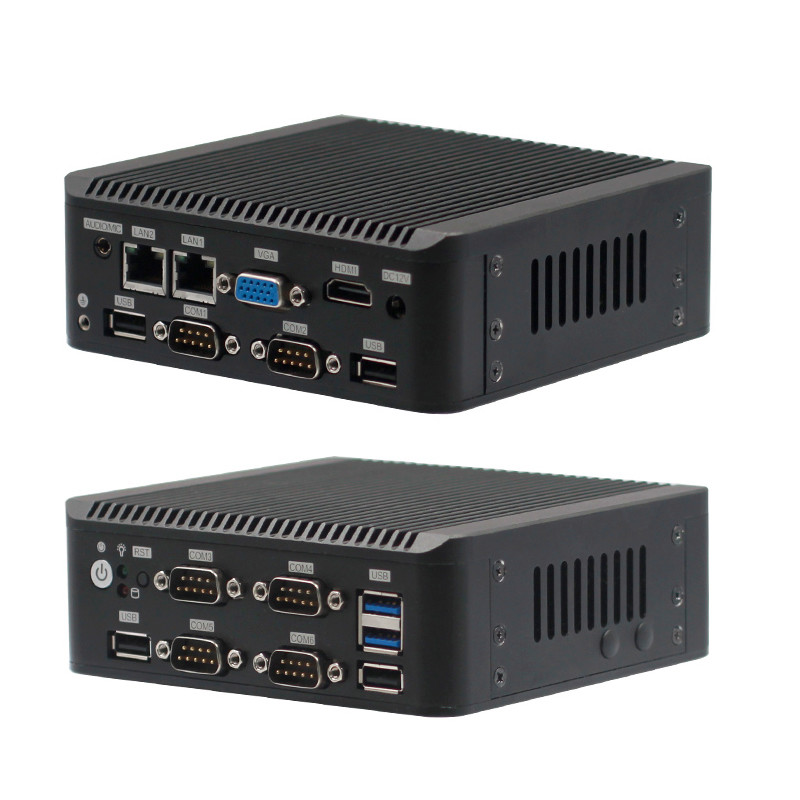

Gemini Lake J4105 J4125 N4100 N5000 Fanless industrial mini pc 2 LAN 6COM nuc computer
Notice :
When you inquiry , you can choose the following Model :
IPC-P01-6422VH-GN-J4005, Integrated Intel® Celeron® Gemini Lake J4005 dual core 2 threads 2.0~2.7Ghz processor
IPC-P01-6422VH-GN-J4105, Integrated Intel® Celeron® Gemini Lake J4105 quad core 4 threads 1.5~2.5Ghz processor
IPC-P01-6422VH-GN-J4125, Integrated Intel® Celeron® Gemini Lake Refresh J4125 quad core 4 threads 2.0~2.7Ghz processor
IPC-P01-6422VH-GN-J5005, Integrated Intel® Pentium® Silver Gemini Lake J5005 quad core 4 threads 1.5~2.8Ghz processor
IPC-P01-6422VH-GN-N4100, Integrated Intel® Celeron® Gemini Lake N4100 quad core 4 threads 1.1~2.4Ghz processor
IPC-P01-6422VH-GN-N5000, Integrated Intel® Pentium® Silver Gemini Lake N5000 quad core 4 threads 1.1~2.7Ghz processor
Gemini Lake J4105 J4125 N4100 N5000 Fanless industrial mini pc 2 LAN 6COM nuc computer
Key features
Integrated Intel® Gemini Lake J4005/ J4105/ J4125/ J5005/ N4100/ N5000
Single SO-DIMM,maximum support DDR4 up to 8G
Integrated Intel UHD 600 Graphics
1*VGA
1*HDMI
2*USB3.0
4*USB2.0
2*Gigabit LAN
6*COM
1* standard SATAIII port
1*Mini-PCIe M-SATA Scoket
Wide voltage Power supply DC12-19V ,DC12-19V,+/-5%
Size:134*126*46.8 mm
Specifications
| Processor | CPU |
Integrated Intel® Gemini Lake J4005/ J4105/ J4125/ J5005/ N4100/ N5000 |
| CPU package | BGA | |
| chipset | Intel Gemini Lake SOC CPU | |
| BIOS | EFI BIOS | |
| Memory | Technology | Single channel DDR4 2133/2400MHz |
| Architecture | ||
| Slot | Single SO-DIMM,maximum support DDR4 up to 8G | |
| Video | Graphics controller | Integrated Intel UHD 600 Graphics |
| HDMI | HDMI(2.0) max support resolution 4K@60Hz | |
| VGA | VGA max support resolution 1920x1200 | |
| I/O backpanel | Ports |
1*HDMI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected through cap skipping and BIOS setting RS232 OR RS485,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 is RS232) 1* Quick start button with indicator light 1* Reset button 1*DC 1* Power indicator 1* HDD indicator |
| Internet | Controller | 2*Intel I211AT OR Intel I210 High performance gigabit network card(Two choose one) |
| Input/output interface | USB |
4*USB2.0 2*USB3.0 max support +5V/1A |
| Com |
COM1,2 can be selected through cap skipping and BIOS setting RS232 OR RS485,RS485 supports automatic flow control COM3,COM4,COM5,COM6 is RS232 |
|
| Expansion BUS | Mini-PCle | 1*Mini-PCIE Slot,support PCIE and USB devices(5g/4g Module OR PCIE Module Optional) |
| Storage | SATA | 1* standard SATAIII port, maximum transfer rate 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket, support SANDISK protocol,maximum transfer rate 6gb/s | |
| EMMC | Support 32/64/128G( Optional ) | |
| Power supply | Power type | Wide voltage Power supply,DC12-19V ,DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Support system | Windows10 Linux | |
| Appearance size | size | 134*126*46.8 mm |
| weight | 1.5KG |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
