| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P05-GN-J4125 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Gemini Lake J4125 Quad Core | Video: | 1* (HDMI) |
|---|---|---|---|
| Memory: | Support LPDDR4,up To 8GB | EMMC: | EMMC Up To 256GB |
| Micro SD: | 1* Micro SD,Max To 128GB | Ethernet: | 1* Gigabit Ethernet |
| TYPE-C: | 1*TYPE-C | Dimension: | 62x62x42 Mm |
| Power: | 12V,2A DC Power Supply | ||
| Highlight: | fanless intel nuc dual core,fanless box pc 256GB,nuc dual core pc 256GB |
||

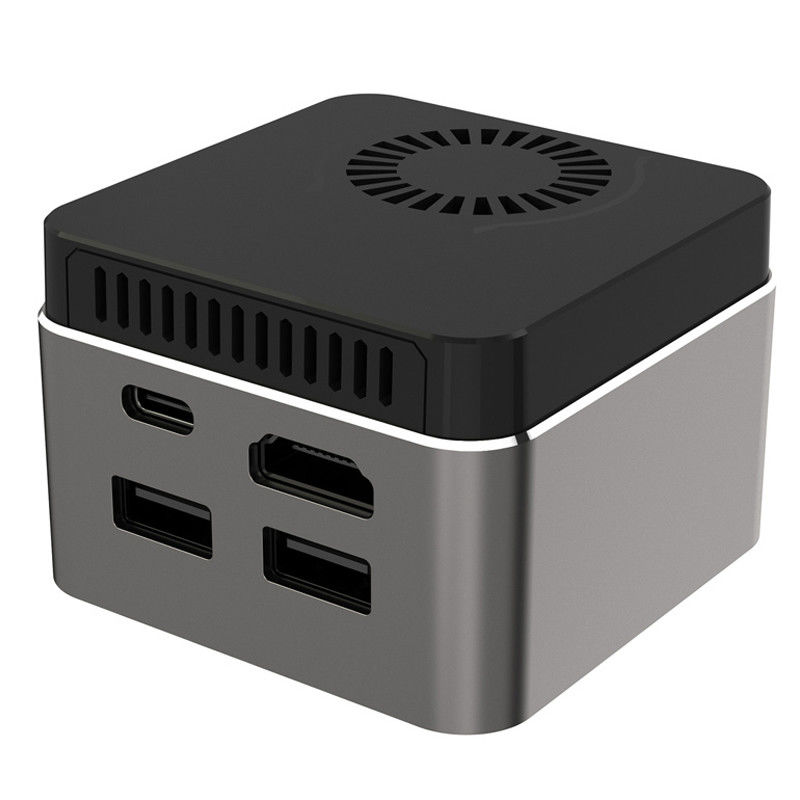

Intel® Gemini Lake-R J4125 quad cores NUC PC nano computer fanless mini box pc Emmc up to 256GB
Key features
Integrated Intel® Gemini Lake J4125 quad core 4 threads 2.0Ghz processor
Integrated Intel UHD Graphics 600
Support LPDDR4,up to 8GB
Support eMMC,up to 256GB
Support WIFI+Bluetooth5.1
1* HDMI1.4
1* RJ45 GigaLAN
2* USB3.0
1* micro SD,Max to 128GB
1* Type-C(Power supply only,12V,2A
Size: 62x62x42 mm
Package Dimension 178x99x54 mm
Specifications
| Processor System |
Integrated Intel® Gemini Lake J4125 quad core 4 threads 2.0Ghz processor Burst Frequency 2.7Ghz |
| GPU | Integrated Intel UHD Graphics 600(up to 700MHz) |
| RAM | LPDDR4,up to 8GB,4GB/6GB option |
| ROM | eMMC,up to 256GB;M.2 SSD 2242 option |
| Wi-Fi | Intel AC9641/2.4G/5G,WiFi 802.11ac/a/b/g/n |
| Blue-tooth | BT5.1 |
| I/O Ports | 1* Power button |
| 1* TPM2.0 | |
| 1* HDMI1.4 | |
| 1* RJ45 GigaLAN | |
| 2* USB3.0 | |
| 1* Audio output,3.5mm | |
| 1* micro SD,Max to 128GB | |
| 1* Type-C(Power supply only,12V,2A,different country different standard) | |
| 1* LED,Blue,Power indicator | |
| Power | 12V,2A,Type-C |
| Environment | Operating Temp:-20℃ ~ +60℃;Storage Temp:-40℃ ~ +85℃ |
| Operating Humidity:5% ~ 90%;Storage Humidity:5% ~ 90% | |
| OS Support | Windows10,multi-language |
| Dimensions | 62x62x42 mm |
| Package Dimension | 178x99x54 mm |
| Net Weight | 0.2Kg |
