| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P01-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Whiskey Lake-U I3-8145U / I5-8265U / I7-8565U / Celeron® 4205U | RAM: | 2*DDR4 Max To 64GB |
|---|---|---|---|
| Storage: | 1* Standard SATAIII, 1*NGFF_SSD Port | Display: | 1*H-D-M-I, 1*MINI DP |
| NETWORK: | 2*Gigabit LAN | USB: | 2*USB3.1 |
| Dimension: | 111.6*111.6*51mm | ||
| Highlight: | Oem Dual LAN Mini PC,I3-8145U Dual LAN Mini PC,I3-8145U embedded box computer |
||
Notice:
When you inquiry , you can choose the following Model
NUC-P01-8TH-4205U Integrated Intel® Celeron® Processor Whiskey Lake 4205U dual cores 2 threads1.8GHz Processor
NUC-P01-8TH-I3 Integrated Intel® Whiskey Lake i3-8145U dual cores 4 threads 2.1~3.9GHz Processor
NUC-P01-8TH-I5 Integrated Intel® Whiskey Lake i5-8265U quad cores 8 threads1.6~3.9GHz Processor
NUC-P01-8TH-I7 Integrated Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8~4.6GHz Processor
Oem Intel® i3-8145U mini NUC htpc nano pc 8th industrial embedded box computer
Key features
Integrated Intel® Core™ 8th Whiskey Lake-U i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U
2*DDR4 SO-DIMM Ram socket,max support 64GB
Integrated Intel UHD Graphics 620
Support MINI DP+HDMI2.0 Synchronous or asynchronous display
2*Gigabit LAN
1*HDMI2.0
1*MINI DP
2*USB3.1
1*TYPE-C
1*IR Infrared receiving port
1* standard SATAIII
1*NGFF_SSD Port
Wide Voltage DC 12-19V power supply
Aluminum fan heater
Aluminum chassis
Size: 111.6*111.6*51mm
Specifications
| processor | CPU |
Whiskey Lake-U i3-8145U / i5-8265U / i7-8565U / Celeron® 4205U |
| CPU package | FCBGA 1528 | |
| Chipset | Support Whiskey Lake-U serial processor | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Dual channel DDR4 2133/2400MHz |
| socket | 2*DDR4 SO-DIMM Ram socket,max support 64GB | |
| Video | Graphics controller | Intel UHD Graphics 620(graphics card model is related to CPU) |
| MINI DP | MINI DP Max resolution support 4096x2304 60HZ(support DP++) | |
| HDMI2.0 | HDMI2.0 Max resolution suppor 4096x2304 60HZ | |
| Dual display | MINI DP+HDMI2.0 Synchronous or asynchronous display | |

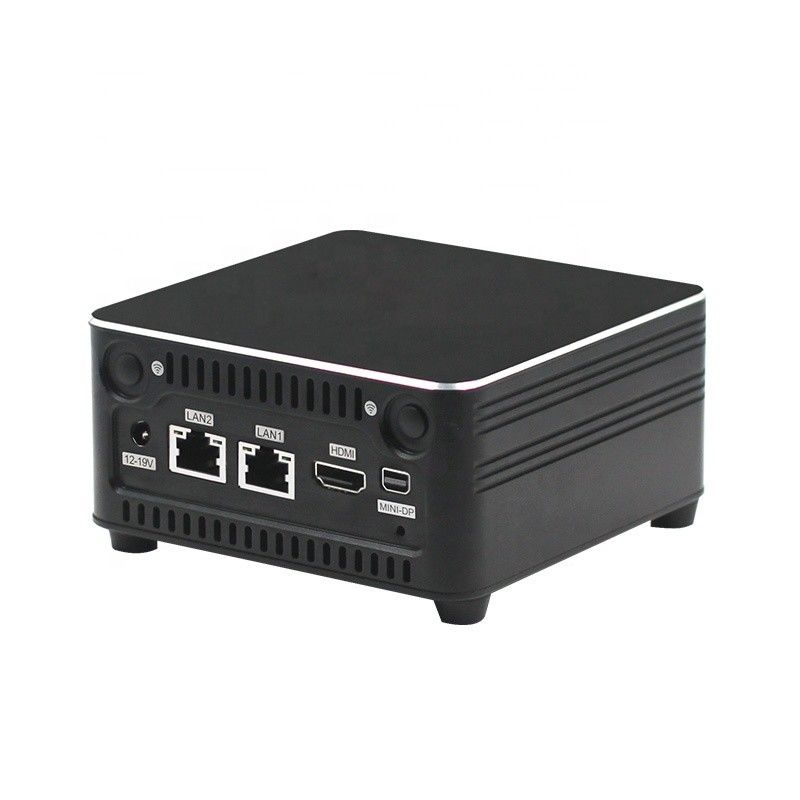

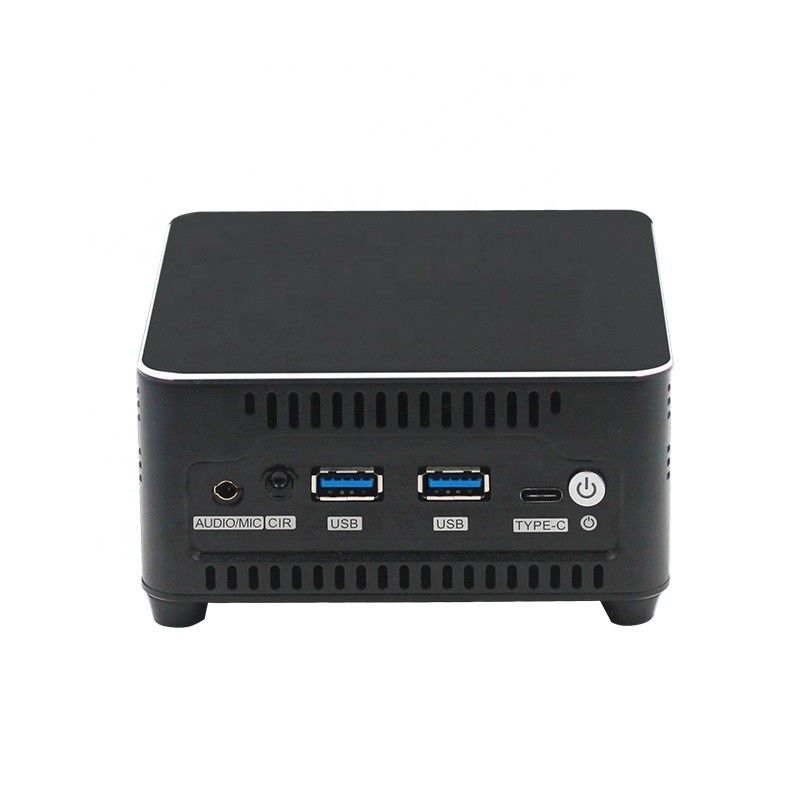

| I/O backpanel | port |
2*LAN 1*HDMI2.0 1*MINI DP 1*DC 1*MIC-IN/LINE-OUT 2*USB3.1 1*TYPE-C 1*switch button 1*IR Infrared receiving port |
| Internet | Controller | 2*INTEL I211 Gigabit Ethernet(Replaceable I210 network card chip),RJ45 port |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware controller | Watch-dog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum fan heater | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe port,support PCIe and USB device,With micro SIM card slot |
| storage | SATA | 1* standard SATAIII port, maximum transfer rate 6Gb/s |
| NGFF | 1*NGFF_SSD Port (Support PCIE X2 NVME or SATA 2242 M2 HDD(Two choose one) | |
| Power supply | Power supply | Wide Voltage DC 12-19V power supply |
| Working environment | Working Temperature | -20°C~+60°C(-4°F~140°F) |
| Storage Temperature | -40°C~+85°C(-40°F~185°F) | |
| Operating Humidity | 0%~90% (non-condensing) | |
| Storage Humidity | 0%~90% (non-condensing) | |
| Chassis | Material | Aluminum |
| Dimensions | Size | 111.6*111.6*51mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
