| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P01-8TH-4205U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Celeron® 4205U Dual Cores | Memory: | 2*DDR4 |
|---|---|---|---|
| Graphic: | Intel UHD Graphics | Display: | 1*H-D-M-I, 1*MINI DP |
| Network: | 2*INTEL I211 Gigabit Ethernet | USB: | 2*USB3.1 |
| Dimension: | 111.6*111.6*51mm | ||
| Highlight: | 4205U industrial box pc,dual LAN industrial box pc,4205U industrial box pc |
||

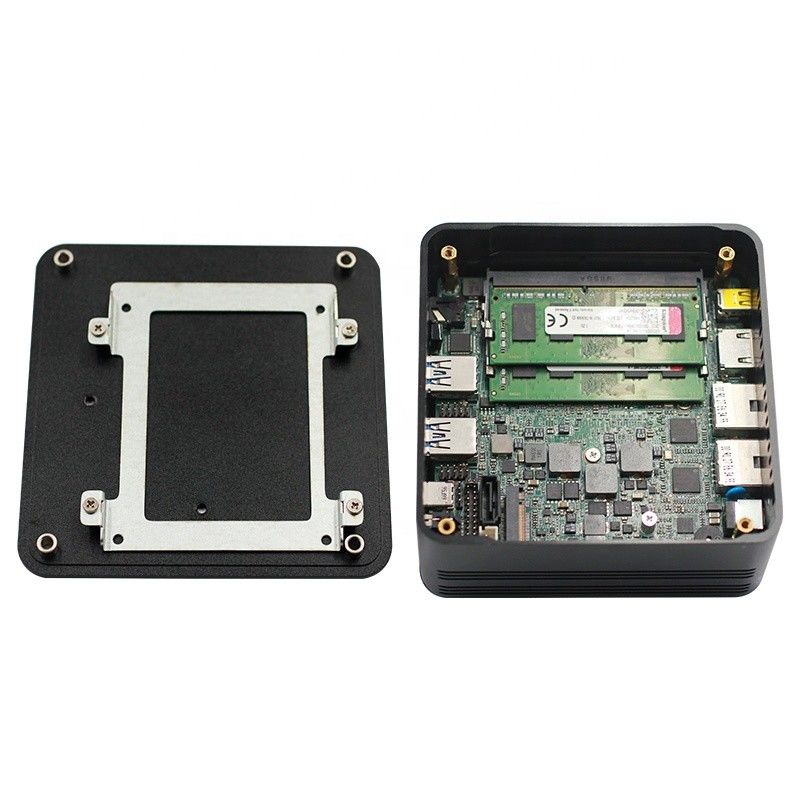

Intel® Celeron® 4205U dual LAN industrial box pc mini DP display nano computer
Key features
Integrated Intel® Celeron® 4205U dual cores 2 threads 1.8Ghz processor
2*DDR4 SO-DIMM Ram socket,max support 64GB
Integrated Intel UHD Graphics
Support MINI DP+HDMI2.0 Synchronous or asynchronous display
2*Gigabit LAN
1*HDMI2.0
1*MINI DP
2*USB3.1
1*TYPE-C
1*IR Infrared receiving port
1* standard SATAIII
1*NGFF_SSD Port
Wide Voltage DC 12-19V power supply
Aluminum fan heater
Aluminum chassis
Size: 111.6*111.6*51mm
Specifications
| processor | CPU |
Support Intel® Core™ 8th Whiskey Lake-U Celeron,Core i3/i5/i7 serial processor Integrated Intel® Celeron® 4205U dual cores 2 threads 1.8Ghz processor |
| CPU package | FCBGA 1528 | |
| Chipset | Support Whiskey Lake-U serial processor | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Dual channel DDR4 2133/2400MHz |
| socket | 2*DDR4 SO-DIMM Ram socket,max support 64GB | |
| Video | Graphics controller | Intel® UHD Graphics for 8th Generation Intel® Processors |
| MINI DP | MINI DP Max resolution support 4096x2304 60HZ(support DP++) | |
| HDMI2.0 | HDMI2.0 Max resolution suppor 4096x2304 60HZ | |
| Dual display | MINI DP+HDMI2.0 Synchronous or asynchronous display | |

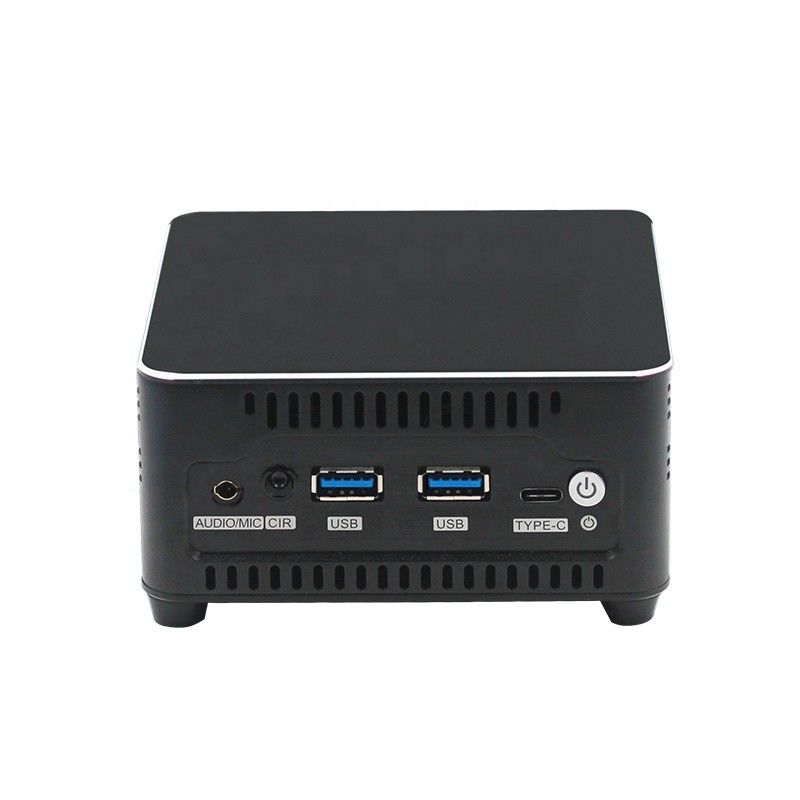

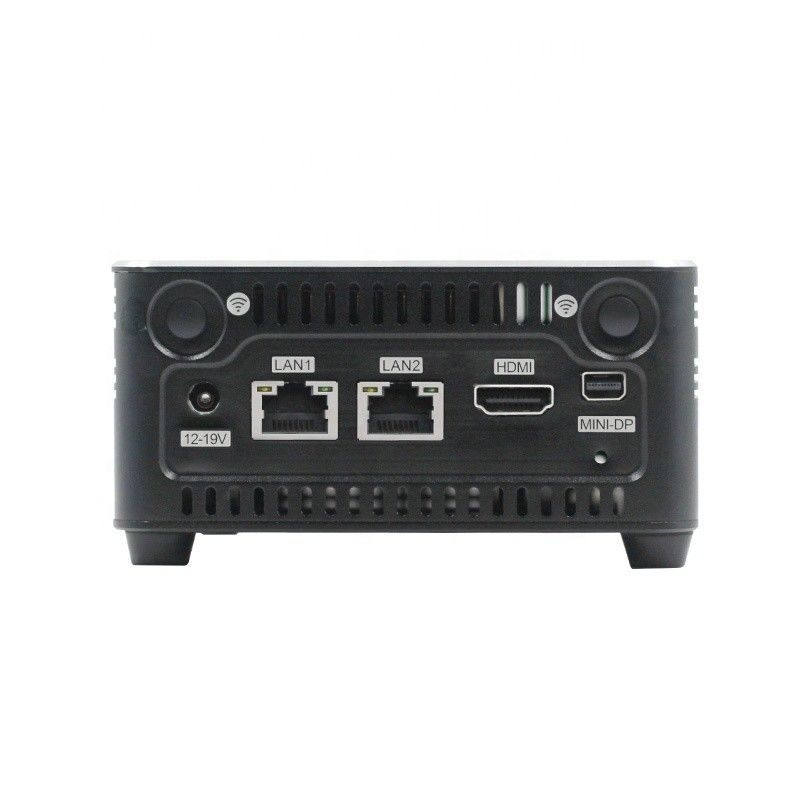

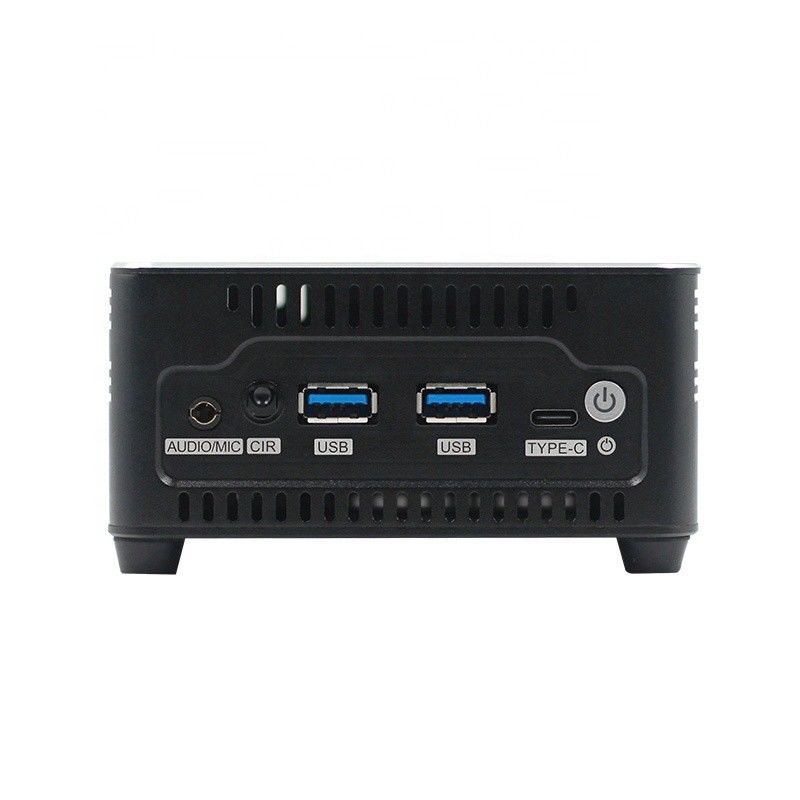

| I/O backpanel | port |
2*LAN 1*HDMI2.0 1*MINI DP 1*DC 1*MIC-IN/LINE-OUT 2*USB3.1 1*TYPE-C 1*switch button 1*IR Infrared receiving port |
| Internet | Controller | 2*INTEL I211 Gigabit Ethernet(Replaceable I210 network card chip),RJ45 port |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware controller | Watch-dog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum fan heater | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe port,support PCIe and USB device,With micro SIM card slot |
| storage | SATA | 1* standard SATAIII port, maximum transfer rate 6Gb/s |
| NGFF | 1*NGFF_SSD Port (Support PCIE X2 NVME or SATA 2242 M2 HDD(Two choose one) | |
| Power supply | Power supply | Wide Voltage DC 12-19V power supply |
| Working environment | Working Temperature | -20°C~+60°C(-4°F~140°F) |
| Storage Temperature | -40°C~+85°C(-40°F~185°F) | |
| Operating Humidity | 0%~90% (non-condensing) | |
| Storage Humidity | 0%~90% (non-condensing) | |
| Chassis | Material | Aluminum |
| Dimensions | Size | 111.6*111.6*51mm |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Warranty 1 Year
