| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P03-5TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | 5th Broadwell-U Intel® I3-5010U / I5-5200U / I7-5500U Processor | Display: | 1* (HDMI)+1*Mini DP Synchronous Display |
|---|---|---|---|
| Memory: | Dual Channel DDR3L 1066/1333/1600MHz | NGFF_SSD: | 1*NGFF_SSD |
| SATAIII: | 1* Standard SATAIII | NETWORK: | 1*RJ45 Gigabit LAN |
| Dimension: | 115*110*42.7mm | ||
| Highlight: | Fanless mini computer box,mini computer box i7-5500U,fanless box pc i7-5500U |
||
Notice:
When you inquiry , you can choose the following Model
NUC-P03-5TH-I3 , Integrated 5th Generation Intel® Core™ i3-5010U dual cores 4 threads 2.1GHz Processor
NUC-P03-5TH-I5 , Integrated 5th Generation Intel® Core™ i5-5200U dual cores 4 threads 2.2~2.7GHz Processor
NUC-P03-5TH-I7 , Integrated 5th Generation Intel® Core™ i7-5500U dual cores 4 threads 2.4~3.0GHz Processor
Broadwell-U Intel® i3-5010U / i5-5200U / i7-5500U dual cores fanless mini box computer NUC nano PC ngff slot mini DP display
Quick Detail
Integrated 5th Broadwell-U Intel® i3-5010U / i5-5200U / i7-5500U processor
Support 2*DDR3L SODIMM 204 Socket
onboard Intel HD Graphics 5500
Support (HDMI)+Mini DP Synchronous or asynchronous display
1*RTL8111E-V Gigabit Ethernet,RJ45 Ports
4*USB3.0 + 1*USB2.0
1*IR Port
1*Standard SATAIII port
1*NGFF_SSD interfaces
Single input DC power,DC12-19V,+/-5%

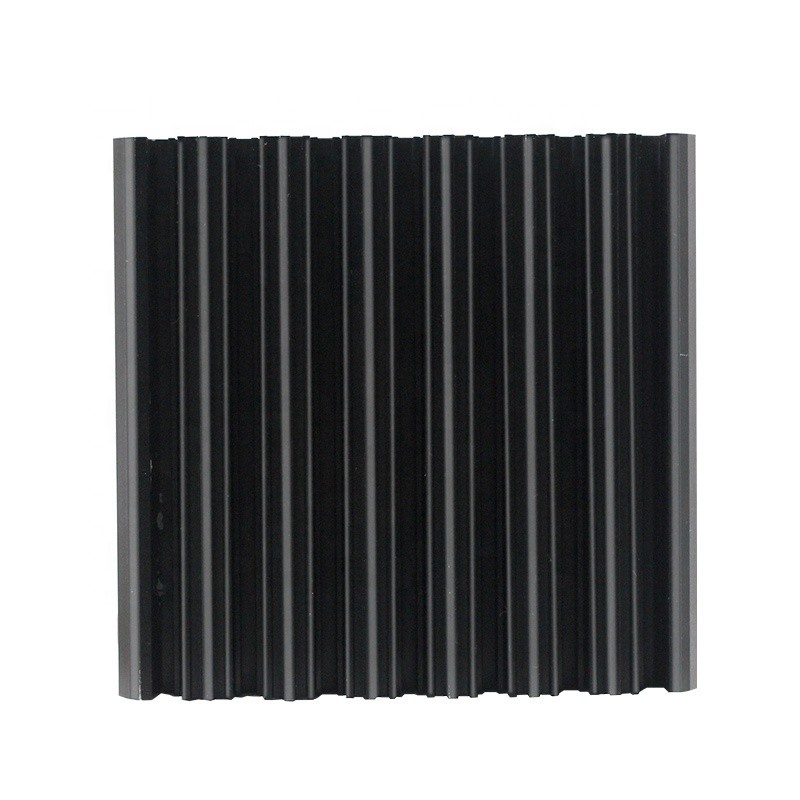

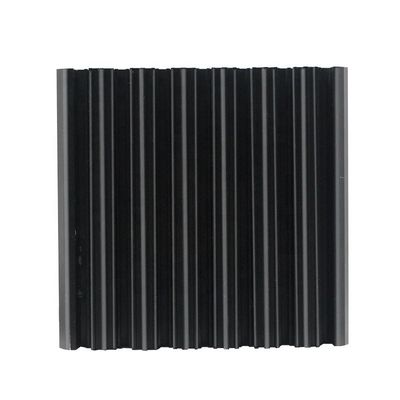

Fanless design Aluminum chassis
Size: 115*110*42.7mm
Specifications
| Processor | CPU |
Integrated 5th Broadwell-U Intel® i3-5010U / i5-5200U / i7-5500U processor |
|
| CPU Package | BGA | ||
| Chipset | Intel® Haswell-U series SOC | ||
| BIOS | EFI BIOS | ||
| RAM | Technology framework | Dual Channel DDR3L 1066/1333/1600MHz | |
| RAM socket | 2*DDR3L SODIMM 204 Socket | ||
| Video | Graphic controller | Intel HD Graphics 5500 | |
| Mini-DP | Mini DP Resolution maximum support 3200*2000@60HZ | ||
| (HDMI) | resolution maximum support(HDMI)1.4)3200*2000@60HZ | ||
| Double display support | (HDMI)+Mini DP Synchronous or asynchronous display | ||

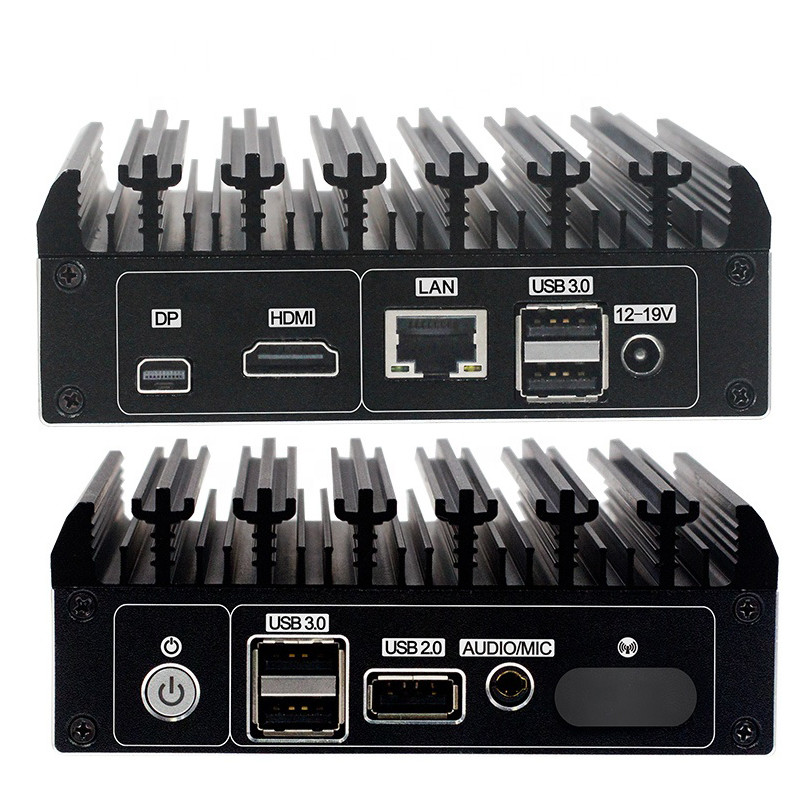

| Rear Panel I/O | Ports | 1*Mini DP 1*(HDMI) 1*LAN 4*USB3.0 1*USB2.0 1*MIC-OUT/LINE-OUT 1*Switch button(with indicator light) 1*IR Port |
|
| Network | Controller | 1*RTL8111E-V Gigabit Ethernet,RJ45 Ports | |
| Audio | Controller | Realtek HD ALC662 chipset (line-in,line-out,Mic) | |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) | |
| Cooler | Aluminum alloy heat sink with fan | ||
| Extended bus | Mini-PCle | 1*Mini-PCIe socket,Support PCIe and USB devices | |
| Storage | SATA | 1*Standard SATAIII ports,Maximum transmission rate to 6gb/s | |
| NGFF_SSD | 1*NGFF_SSD interfaces(Support 42*22mm) | ||
| Power Supply | Power Type | Single input DC power,DC12-19V,+/-5% | |
| Power Consumption | 35W | ||
| Working environment | Working Temperature | -20°C~+60°C(-4°F~140°F) | |
| Storage Temperature | -40°C~+85°C(-40°F~185°F) | ||
| Operating Humidity | 0%~90% (non-condensing) | ||
| Storage Humidity | 0%~90% (non-condensing) | ||
| Chassis | Material | Aluminum | |
| Dimensions | Size | 115*110*42.7mm |
