| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | NUC-P03-4TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® I3-4010U / I5-4200U / I7-4500U | Memory: | 2*DDR3L |
|---|---|---|---|
| SATA: | 1* Standard SATAIII | NGFF_SSD: | 1*NGFF_SSD Port |
| Display: | 1*H-D-M-I, 1*MINI DP | NETWORK: | 1*GLAN |
| USB: | 4*USB | Dimension: | 115*110*42.7mm |
| Highlight: | i3-4010U fanless mini box,HTPC fanless mini box computer |
||
Notice :
When you inquiry , you can choose the following Model :
NUC-P03-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
NUC-P03-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
NUC-P03-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

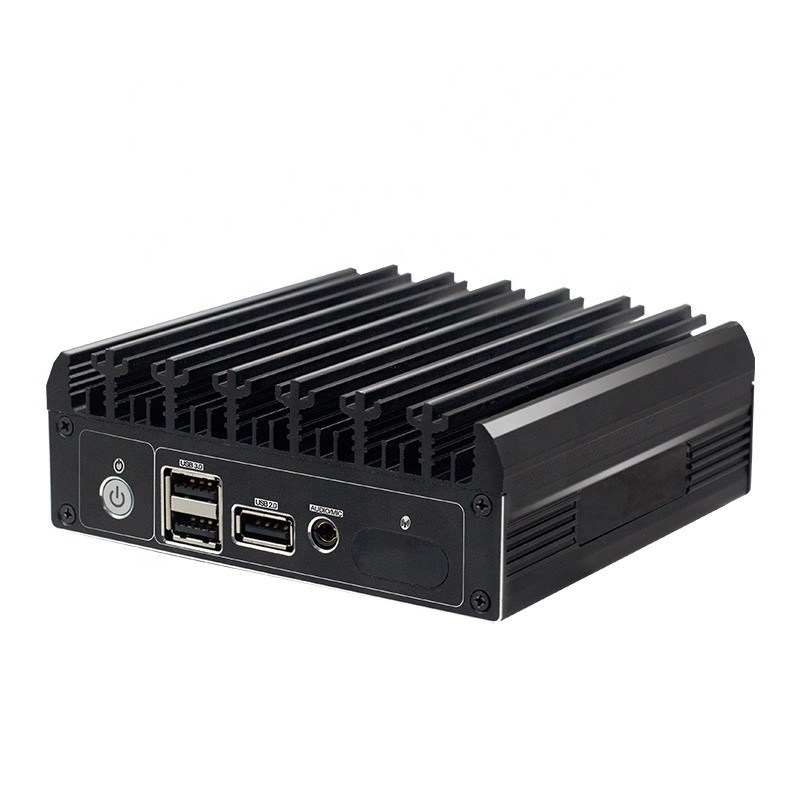

Intel® i3-4010U i5-4200U i7-4500U Dual Cores HTPC NUC Nano PC Fanless Mini Box Computer
Key features
Integrated 4th Haswell-U Intel® Intel® i3-4010U / i5-4200U / i7-4500U
Support 2*DDR3L SODIMM 204 Socket
Integrated Intel HD Graphics 4400
Support (HDMI)+Mini DP Synchronous or asynchronous display
1*Mini DP
1*(HDMI)
1*Gigabit LAN
4*USB3.0
1*USB2.0
1*MIC-OUT/LINE-OUT
1*IR Port
1*Standard SATAIII port
1*NGFF_SSD interfaces
Single input DC power,DC12-19V,+/-5%
Aluminum chassis
Fanless design
Size: 115*110*42.7mm
Specifications
| Processor | CPU | Integrated 4th Haswell-U Intel® Intel® i3-4010U / i5-4200U / i7-4500U | |
| CPU Package | BGA | ||
| Chipset | Intel® Haswell-U series SOC | ||
| BIOS | EFI BIOS | ||
| RAM | Technology framework | Dual Channel DDR3L 1066/1333/1600MHz | |
| RAM socket | 2*DDR3L SODIMM 204 Socket | ||
| Video | Graphic controller | Intel HD Graphics 4400 | |
| Mini-DP | Mini DP Resolution maximum support 3200*2000@60HZ | ||
| (HDMI) | esolution maximum support(HDMI)1.4)3200*2000@60HZ | ||
| Double display support | (HDMI)+Mini DP Synchronous or asynchronous display | ||
| Rear Panel I/O | Ports | 1*Mini DP 1*(HDMI) 1*LAN 4*USB3.0 1*USB2.0 1*MIC-OUT/LINE-OUT 1*Switch button(with indicator light) 1*IR Port |
|
| Network | Controller | 1*RTL8111E-V Gigabit Ethernet,RJ45 Ports | |
| Audio | Controller | Realtek HD ALC662 chipset (line-in,line-out,Mic) | |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) | |
| Cooler | Aluminum alloy heat sink with fan | ||
| Extended bus | Mini-PCle | 1*Mini-PCIe socket,Support PCIe and USB devices | |
| Storage | SATA | 1*Standard SATAIII ports,Maximum transmission rate to 6gb/s | |
| NGFF_SSD | 1*NGFF_SSD interfaces(Support 42*22mm) | ||
| Power Supply | Power Type | Single input DC power,DC12-19V,+/-5% | |
| Power Consumption | 35W | ||
| Working environment | Working Temperature | -20°C~+60°C(-4°F~140°F) | |
| Storage Temperature | -40°C~+85°C(-40°F~185°F) | ||
| Operating Humidity | 0%~90% (non-condensing) | ||
| Storage Humidity | 0%~90% (non-condensing) | ||
| Chassis | Material | Aluminum | |
| Dimensions | Size | 115*110*42.7mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
