| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPPC173-T012311 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Screen: | 17.3 Inch Capacitive Touch Screen | Color: | Black / Silver |
|---|---|---|---|
| Resolution: | 1920*1080 | Brightness: | 400cd/m2 |
| Processor: | Celeron J1900 2GHz Quad-cores | RAM+ Storage: | 4GB + 64GB SSD |
| Waterproof And Dustproof: | IP65 | Serial Ports: | 2* RS232 |
| Highlight: | 17.3" fanless industrial panel pc,fanless industrial panel pc WIN7,Kiosk embedded panel pc |
||

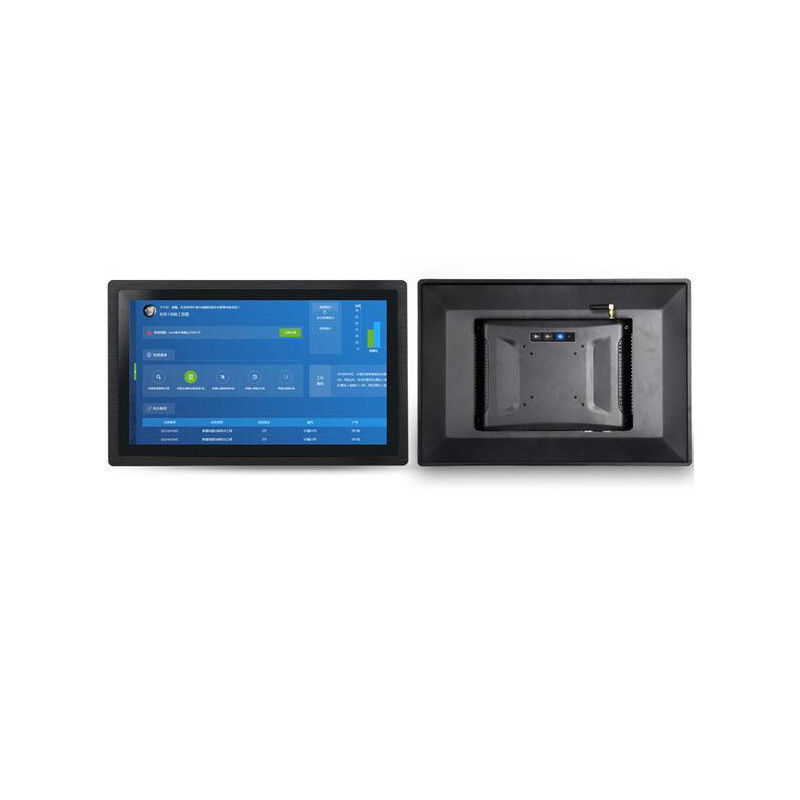

17.3" Embedded Fanless Industrial Panel Pc WIN7 Touch Screen Tablet Kiosk
Quick detail
Chassis material Aluminum Alloy
Intel Celeron J1900 2GHz Quad-cores
64G SSD
4G DDR3
Screen size 17.3 inches
Resolution: 1920*1080
Capacitive touch screen
USB2.0*3+USB3.0*1
COM*2 RS232
WIFI*1
HDMI*1
VGA*1
RJ-45*1 Gigabit LAN
12V 5A External power supply
Front panel IP65 dustproof and waterproof
Default Embedded install (desktop, wall-mounted, cantilever optional)
Specifications
| General info |
Item No. | IPPC173-T012311 |
| Material | Aluminum Alloy | |
| Color | Black / Silver | |
| IP rating | IP65, indoor & outdoor complied | |
| Operation System | WIN 7/8/10/XP LINUX | |
| Weight | 4.3 KG | |
| Delivery time | 1-15 days depend on order quantity | |
| Certificate | CE ROHS | |
| Warranty | 1 years | |
| Avalability of customization | YES | |
| Mainboard info |
CPU | Intel Celeron J1900 2GHz Quad-cores |
| Hard disk | 64G SSD | |
| Memory | 4G DDR3 | |
| Audio | Integrated audio chip | |
| Network | Integrated gigabit network card | |
| WIFI | Inner | |
| Graphics | Integrated | |
| System | WIN 7/8/10/XP LINUX | |
| Speaker | Inner | |
| Screen info |
Screen size | 17.3 inches |
| Resolution | 1920*1080 | |
| Proportion | 16:9 | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, lifespan≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160 deg / 160 deg | |
| Brightness | 400cd/m2 | |
| Touch type | Default Capacitive (resistive and infrared optional) |
|
| Touches cycles | ≥ 50 million times | |

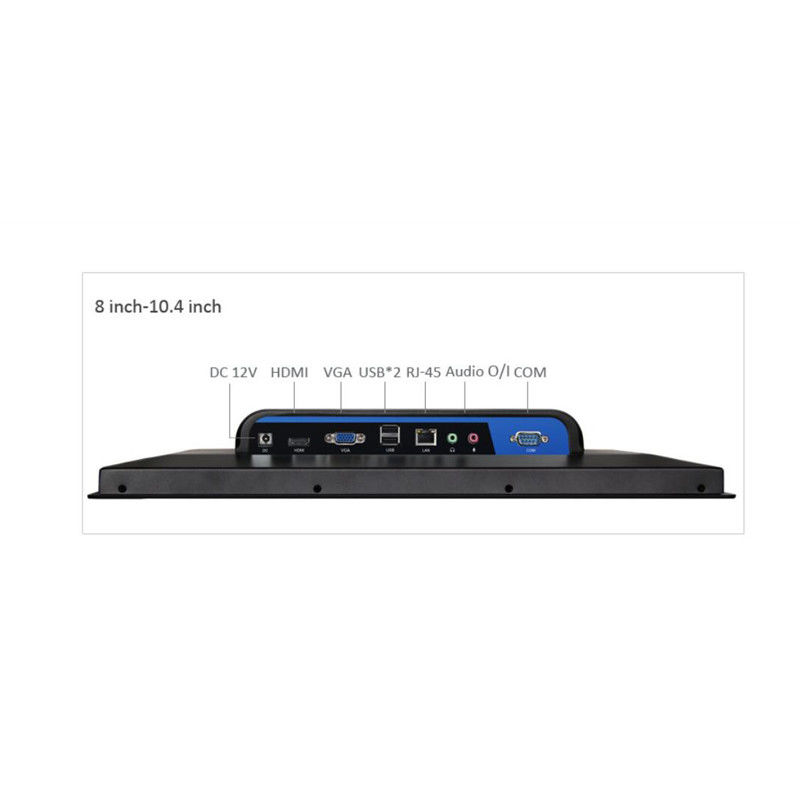

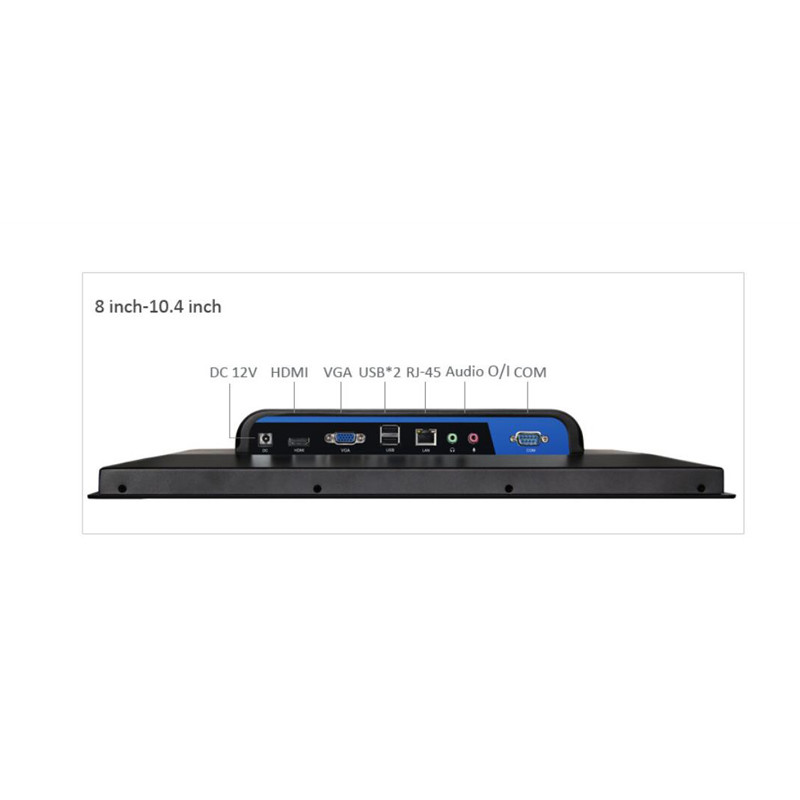

| Interface info |
USB | USB2.0*3+USB3.0*1 |
| Expansion | COM*2 | |
| Default protocol | RS232 | |
| WIFI | WIFI*1 | |
| Power Supply | DC12V *1 | |
| HDMI | HDMI*1 | |
| VGA | VGA*1 | |
| Network card | RJ-45*1 | |
| Audio | Input *1 + output *1 | |
| Other info |
Power Supply | 12V 5A External |
| Tablet Input voltage | 12V | |
| Anti-static | contact 4KV, air 8KV | |
| Monitor Power | ≤60W | |
| Anti-vibration | GB2423 standard in China | |
| Anti-interference | EMC & EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Installation method | Default Embedded (desktop, wall-mounted, cantilever optional) |
|
| Ambient humidity | 5~85%, non-condensable | |
| Working temperature | -20°C~70°C | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian,custumed |
Applications:
Industrial production control
Industrial manufacture
Vending machine
Bank ATM machine
Kiosk
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
Queuing machine
About shipping
1.Delivery Time:1 ~ 3 Days for one sample, 4~10 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
