Screen: | 15.6 Inch Capacitive Touch Screen | Color: | Black / Silver |
---|---|---|---|
Resolution: | 1366*768 | Brightness: | 400cd/m2 |
Processor: | Celeron J1900 2GHz Quad-cores | RAM+ Storage: | 4GB + 64GB SSD |
Waterproof And Dustproof: | IP65 | Serial Ports: | 2* RS232 |
Highlight: | 15.6" Industrial Panel PC,J1900 Industrial Panel PC,15.6" embedded touch panel pc |

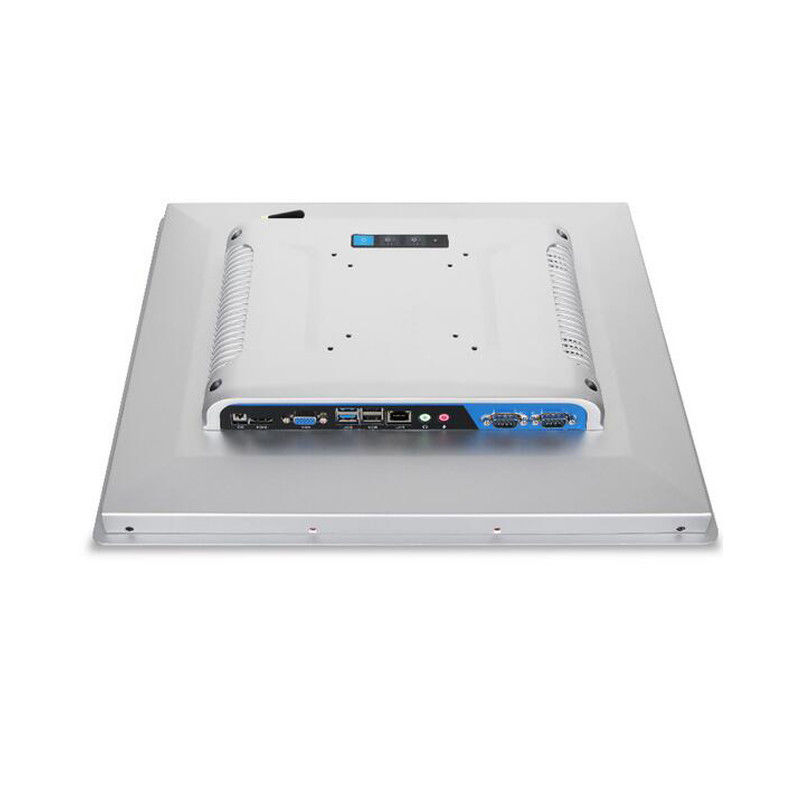

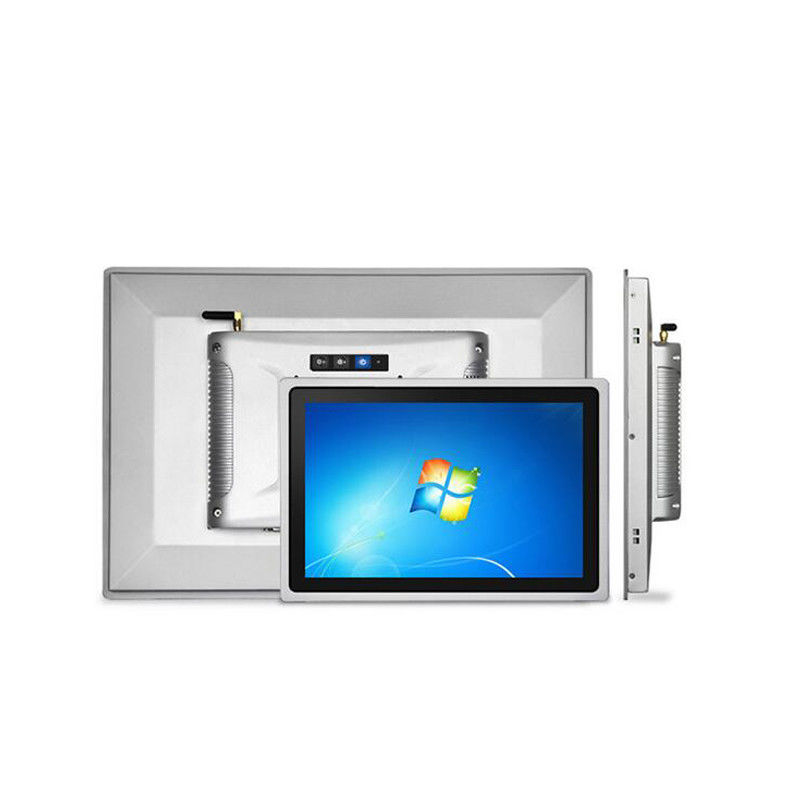

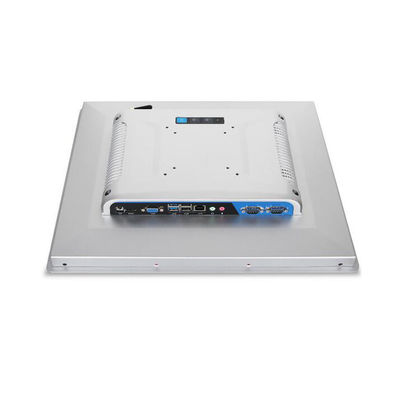

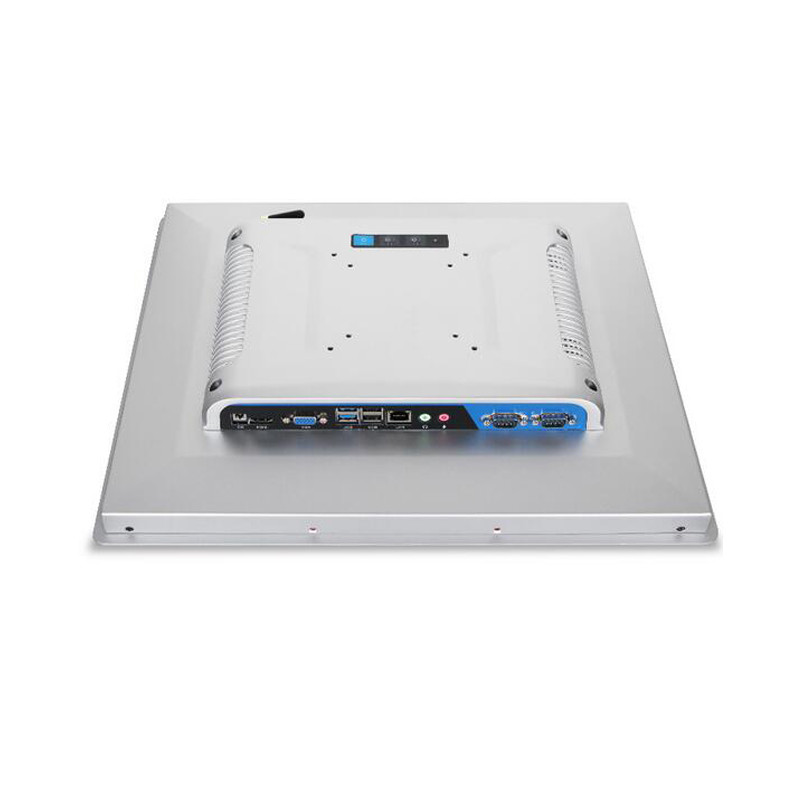

15.6" embedded industrial panel PC J1900 touch screen tablet kiosk computer 2 COM
Quick detail
Intel Celeron J1900 2GHz Quad-cores
4G DDR3+ 64G SSD
Screen size 15.6 inches
Resolution: 1366*768
Capacitive touch screen
USB2.0*3+USB3.0*1
COM*2 RS232
WIFI*1
HDMI*1 , VGA*1
RJ-45*1
12V 5A External power supply
Chassis material Aluminum Alloy
IP65 indoor & outdoor complied
Default Embedded install (desktop, wall-mounted, cantilever optional)
Working temperature : -20°C~70°C
Specifications
General info |
Item No. | IPPC156-T012311 |
Material | Aluminum Alloy | |
Color | Black / Silver | |
IP rating | IP65, indoor & outdoor complied | |
Operation System | WIN 7/8/10/XP LINUX | |
Weight | 4 KG | |
Delivery time | 1-15 days depend on order quantity | |
Certificate | CE ROHS | |
Warranty | 3 years | |
Avalability of customization | YES | |
Mainboard info |
CPU | Intel Celeron J1900 2GHz Quad-cores |
Hard disk | 64G SSD | |
Memory | 4G DDR3 | |
Audio | Integrated audio chip | |
Network | Integrated gigabit network card | |
WIFI | Inner | |
Graphics | Integrated | |
System | WIN 7/8/10/XP LINUX | |
Speaker | Inner | |
Screen info |
Screen size | 15.6 inches |
Resolution | 1366*768 | |
Proportion | 16:9 | |
Gray-scale response time | 5ms | |
Panel Type Industrial | Control A style TFT | |
Point distance | 0.264mm | |
Contrast | 1000:1 | |
Backlight type | LED, lifespan≥50000h | |
Display color | 16.7M | |
Visual angle | 160 deg / 160 deg | |
Brightness | 400cd/m2 | |
Touch type | Default Capacitive (resistive and infrared optional) |
|
Touches cycles | ≥ 50 million times | |
Interface info |
USB | USB2.0*3+USB3.0*1 |
Expansion | COM*2 | |
Default protocol | RS232 | |
WIFI | WIFI*1 | |
Power Supply | DC12V *1 | |
HDMI | HDMI*1 | |
VGA | VGA*1 | |
Network card | RJ-45*1 | |
Audio | Input *1 + output *1 | |
Other info |
Power Supply | 12V 5A External |
Tablet Input voltage | 12V | |
Anti-static | contact 4KV, air 8KV | |
Monitor Power | ≤60W | |
Anti-vibration | GB2423 standard in China | |
Anti-interference | EMC & EMI anti-electromagnetic interference | |
Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
Installation method | Default Embedded (desktop, wall-mounted, cantilever optional) |
|
Ambient humidity | 5~85%, non-condensable | |
Working temperature | -20°C~70°C | |
Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian,custumed |
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.
