CPU: | Celeron J1900 2GHz Quad-cores Processor | RAM + Storage: | 4GB RAM + 64 GB SSD |
---|---|---|---|
Network: | 1*RJ45 Gigabit Lan | Serial Port: | 1* RS232 |
Screen Size: | 11.6 Inch | Screen Resolution: | 1920*1080 |
Screen Type: | Capacitive Touch Screen | Waterproof: | IP65 |
Highlight: | Industrial Panel PC 11.6 Inch,Embedded Industrial Panel PC,FHD J1900 industrial pc all in one |

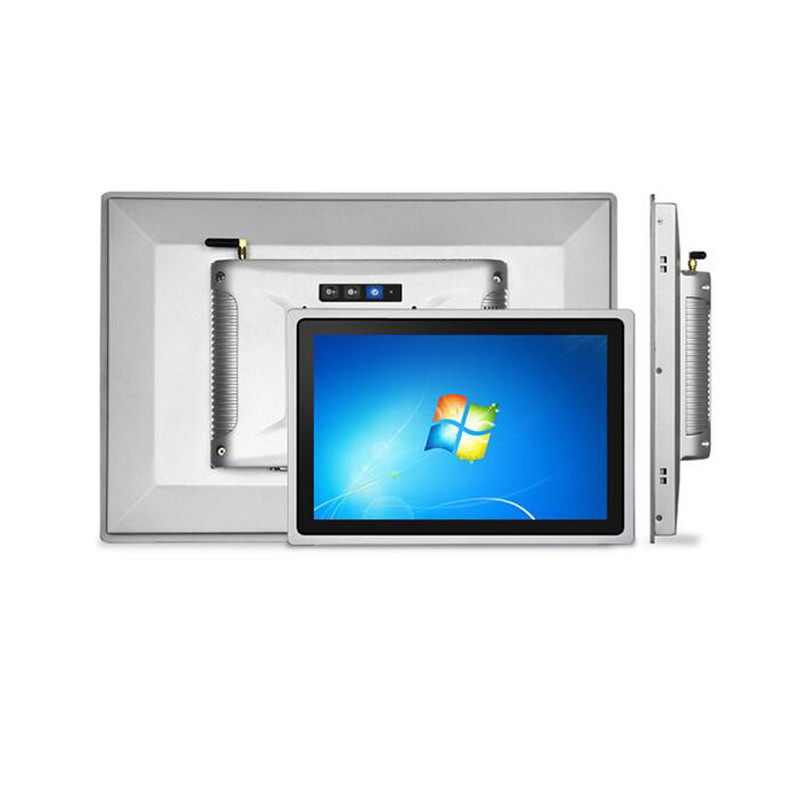

11.6 inch FHD J1900 Touch Screen embedded Computer All In One industrial Panel PC
Quick detail
Intel Celeron J1900 2GHz Quad-cores
64G SSD
4G DDR3
Screen size 11.6 inches
Resolution: 1920*1080
Capacitive touch screen
USB2.0*3+USB3.0*1
COM*1 RS232
WIFI*1
HDMI*1
VGA*1
RJ-45*1
12V 5A External power supply
Front panel IP65 dustproof and waterproof
Chassis material Aluminum Alloy
Specifications
General info |
Item No. | IPPC116-T011201 |
Material | Aluminum Alloy | |
Color | Black / Silver | |
IP rating | IP65, indoor & outdoor complied | |
Operation System | WIN 7/8/10/XP LINUX | |
Weight | 2.2 KG | |
Delivery time | 1-15 days depend on order quantity | |
Certificate | CE ROHS | |
Warranty | 3 years | |
Avalability of customization | YES | |
Mainboard info |
CPU | Intel Celeron J1900 2GHz Quad-cores |
Hard disk | 64G SSD | |
Memory | 4G DDR3 | |
Audio | Integrated audio chip | |
Network | Integrated gigabit network card | |
WIFI | Inner | |
Graphics | Integrated | |
System | WIN 7/8/10/XP LINUX | |
Speaker | Inner | |
Screen info |
Screen size | 11.6 inches |
Resolution | 1920*1080 | |
Proportion | 16:9 | |
Gray-scale response time | 5ms | |
Panel Type Industrial | Control A style TFT | |
Point distance | 0.264mm | |
Contrast | 1000:1 | |
Backlight type | LED, lifespan≥50000h | |
Display color | 16.7M | |
Visual angle | 160 deg / 160 deg | |
Brightness | 400cd/m2 | |
Touch type | Default Capacitive (resistive and infrared optional) |
|
Touches cycles | ≥ 50 million times | |

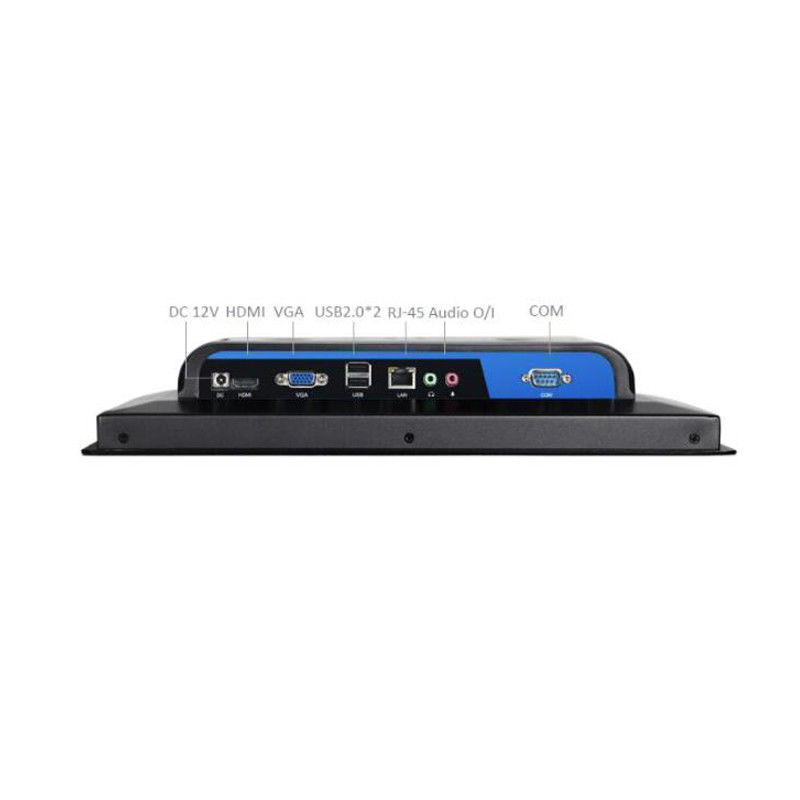

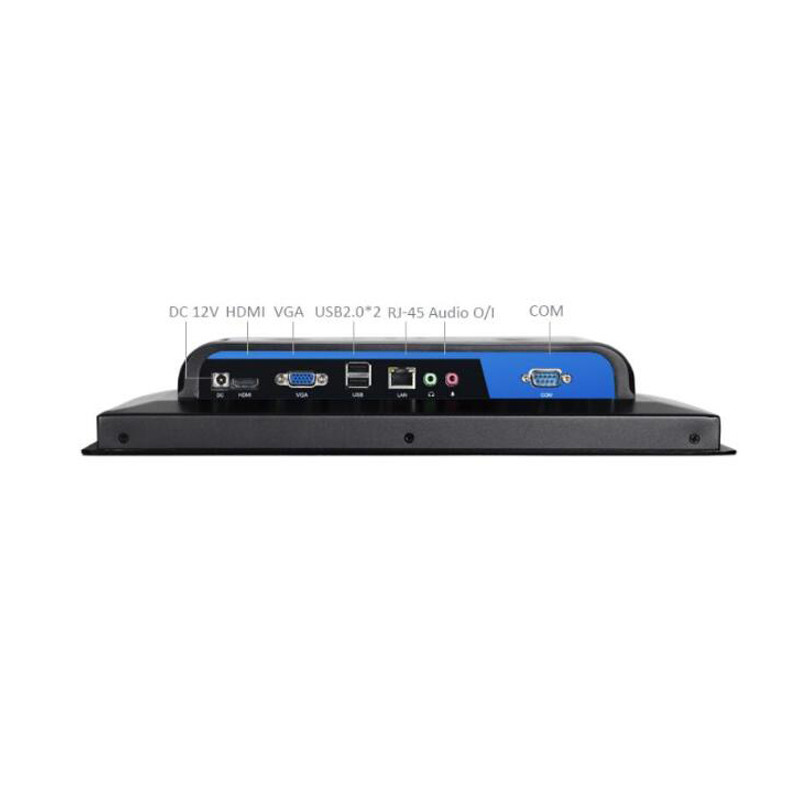

Interface info |
USB | USB2.0*2 |
Expansion | COM*1 | |
Default protocol | RS232 | |
WIFI | WIFI * 1 | |
Power Supply | DC12V *1 | |
HDMI | HDMI * 1 | |
VGA | VGA * 1 | |
Network card | RJ-45*1 | |
Audio | Input *1 + output *1 | |
Other info |
Power Supply | 12V 5A External |
Tablet Input voltage | 12V | |
Anti-static | contact 4KV, air 8KV | |
Monitor Power | ≤60W | |
Anti-vibration | GB2423 standard in China | |
Anti-interference | EMC & EMI anti-electromagnetic interference | |
Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
Installation method | Default Embedded (desktop, wall-mounted, cantilever optional) |
|
Ambient humidity | 5~85%, non-condensable | |
Working temperature | -20°C~70°C | |
Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian,custumed |
Our service:
1. We can provide OEM/ODM services .
2. We can print your Logo when you make order more than 50 pieces
3. We can sell one sample for your test .
4. High-quality product and competitive price.
5. 1 years Warranty
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
