| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPPC104-T011201 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron J1900 2GHz Quad-cores | RAM: | 2GB RAM |
|---|---|---|---|
| Storage: | SSD 64GB | Serial Port: | 1* RS232 |
| Network: | 1*RJ45 Gigabit Lan | Screen Size: | 10.4 |
| Screen Type: | Capacitive Touch Screen | Screen Resolution: | 1280*800 |
| Waterproof: | IP65 | ||
| Highlight: | 10.4" Industrial Panel PC,Industrial Panel PC WIN7,Celeron J1900 embedded touch screen computer |
||

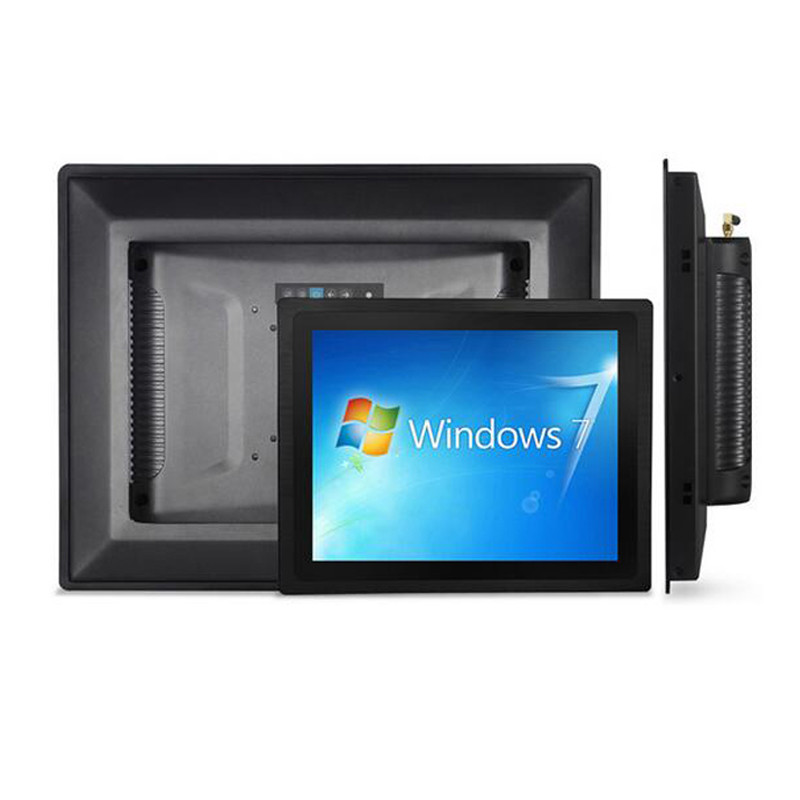

10.4" industrial panel PC WIN7 Capacitive touch screen J1900 Quad core tablet kiosk computer
Features
01.Support embedded,wall-mounted,rack-mounted,desktop,cantilever support.
02.Black or silver color optional
03.IP65 grade water-proof,dust-proof for front panel.
04.Working temperature:-10-60°
05.365Days*24hours all-weather working.
06.Starting up once power on.
07.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
08.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
09.Compatible with various industrial systems/application.
10.Support without touch,resistive touch,capacitive touch,IR touch.
11.Equipped with WI-FI module,more convennient.
12.Build-in 2.0 speakers,support 1080P HD video.
13.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
14.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
15.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
16.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
Specifications
| General info |
Item No. | IPPC104-T011201 |
| Material | Aluminum Alloy | |
| Color | Black / Silver | |
| IP rating | IP65, indoor & outdoor complied | |
| Operation System | WIN 7/8/10/XP LINUX | |
| Weight | 1.8 KG | |
| Delivery time | 1-15 days depend on order quantity | |
| Certificate | CE ROHS | |
| Warranty1 | years | |
| Avalability of customization | YES | |
| Mainboard info |
CPU | Intel Celeron J1900 2GHz Quad-cores |
| Hard disk | 64G SSD | |
| Memory | 2G DDR3 | |
| Audio | Integrated audio chip | |
| Network | Integrated gigabit network card | |
| WIFI | Inner | |
| Graphics | Integrated | |
| System | WIN 7/8/10/XP LINUX | |
| Speaker | Inner | |
| Screen info |
Screen size | 10.4 inches |
| Resolution | 1024*768 | |
| Proportion | 4:3 | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 1000:1 | |
| Backlight type | LED, lifespan≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160 deg / 160 deg | |
| Brightness | 400cd/m2 | |
| Touch type | Default Capacitive (resistive and infrared optional) |
|
| Touches cycles | ≥ 50 million times | |

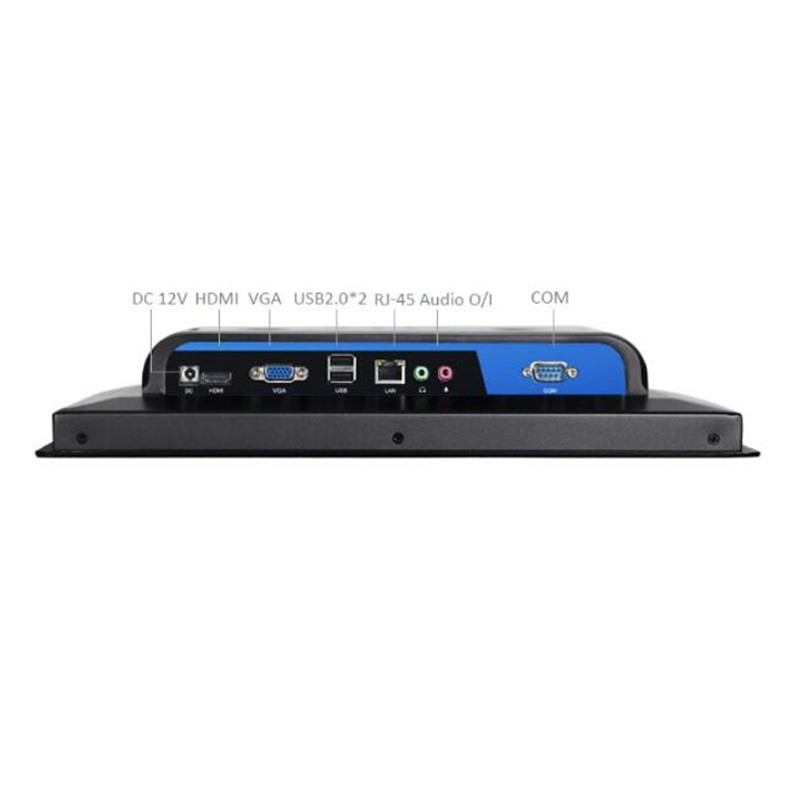

| Interface info |
USB | USB2.0*2 |
| Expansion | COM*1 | |
| Default protocol | RS232 | |
| WIFI | WIFI * 1 | |
| Power Supply | DC12V *1 | |
| HDMI | HDMI * 1 | |
| VGA | VGA * 1 | |
| Network card | RJ-45*1 | |
| Audio | Input *1 + output *1 | |
| Other info |
Power Supply | 12V 5A External |
| Tablet Input voltage | 12V | |
| Anti-static | contact 4KV, air 8KV | |
| Monitor Power | ≤60W | |
| Anti-vibration | GB2423 standard in China | |
| Anti-interference | EMC & EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Installation method | Default Embedded (desktop, wall-mounted, cantilever optional) |
|
| Ambient humidity | 5~85%, non-condensable | |
| Working temperature | -20°C~70°C | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian,custumed |
