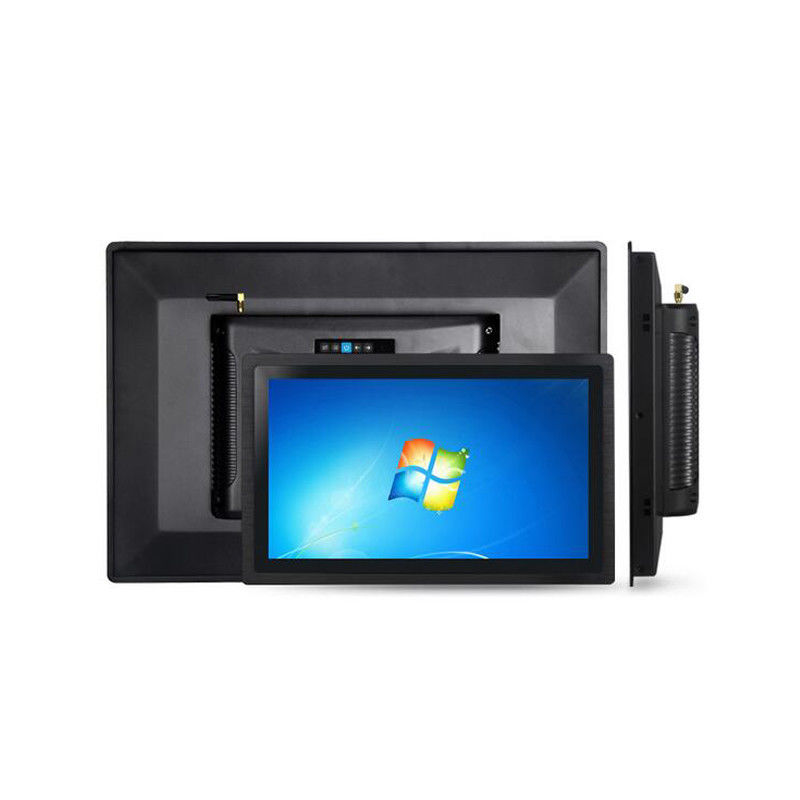

10.1 Inch All In One Embedded Industrial Panel Pc J1900 Quad Core

Basic Information
Place of Origin: Shenzhen China
Brand Name: VEGASHINE / OEM
Model Number: IPPC101-T011201
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 3 to 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 units per Month
CPU: Celeron J1900 2GHz Quad-cores RAM + Storage: 2GB RAM + 64 GB SSD
Serial Port: 1* RS232 Network: 1*RJ45 Gigabit Lan
Screen Size: 10.1 Screen Resolution: 1280*800
Screen Type: Capacitive Touch Screen Waterproof: IP65
Highlight:

10.1inch Industrial Panel PC

,

J1900 quad core Industrial Panel PC

,

all in one panel pc J1900





J1900 quad core 10.1 inch all in one embedded industrial panel pc



Quick detail









Specifications



General Info Item No. IPPC101-T011201
Material Aluminum Alloy
Color Black / Silver
IP rating IP65, indoor & outdoor complied
Operation System WIN 7/8/10/XP LINUX
Weight 1.6 KG
Delivery time 1-15 days depend on order quantity
Certificate CE ROHS
Warranty 1 years
Avalability of customization YES
Mainboard info CPU Intel Celeron J1900 2GHz Quad-cores
Hard disk 64G SSD
Memory 4G DDR3
Audio Integrated audio chip
Network Integrated gigabit network card
WIFI Inner
Graphics Integrated
System WIN 7/8/10/XP LINUX
Speaker Inner
Screen info Screen size 10.1 inches
Resolution 1280*800
Proportion 16:10
Gray-scale response time 5ms
Panel Type Industrial Control A style TFT
Point distance 0.264mm
Contrast 1000:01:00
Backlight type LED, lifespan≥50000h
Display color 16.7M
Visual angle 160 deg / 160 deg
Brightness 400cd/m2
Touch type Default Capacitive
(resistive and infrared optional)
Touches cycles ≥ 50 million times

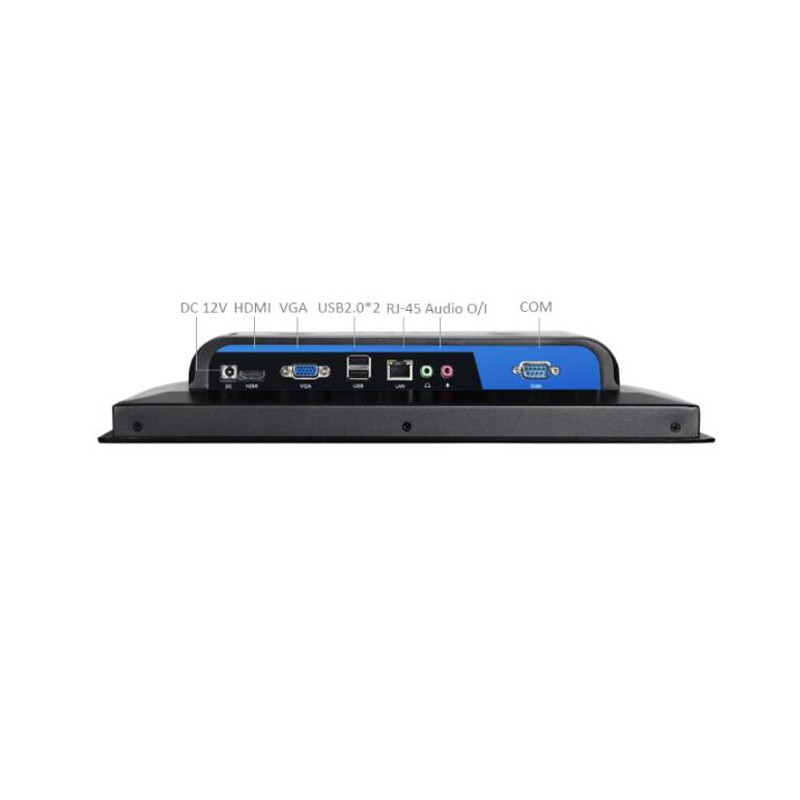

Interface USB USB2.0*2
Expansion COM*1
Default protocol RS232
WIFI WIFI * 1
Power Supply DC12V *1
HDMI HDMI * 1
VGA VGA * 1
Network card RJ-45*1
Audio Input *1 + output *1
Other Power Supply 12V 5A External
Tablet Input voltage 12V
Anti-static contact 4KV, air 8KV
Monitor Power ≤60W
Anti-vibration GB2423 standard in China
Anti-interference EMC & EMI anti-electromagnetic interference
Dustproof and waterproof front panel IP65 dustproof and waterproof
Installation method Default Embedded
(desktop, wall-mounted, cantilever optional)
Ambient humidity 5~85%, non-condensable
Working temperature -20°C~70°C





About shipping

1.Delivery Time:1 ~ 3 Days for one sample, 4~10 days for a large quantity.

2.Packaging Ways:Each pc for one neutral box.

3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
