| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPPCF15R35-1221 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Rochkchip RK3566 CPU | RAM: | 2GB RAM |
|---|---|---|---|
| Storage: | 32GB EMMC | Serial Port: | 1* RS232 |
| WIFI: | WIFI 802.11b/g/n 2.4G | Bluetooth: | Bluetooth4.2 |
| 4G LTE: | Support | Network: | 1*RJ45 Gigabit Lan |
| Screen Size: | 15.6" All-in-one PC | Screen Resolution: | 1920×1080 (IPS) |
| Touch Module: | G+G Multi-Touch | ||
| Highlight: | RK3566 all in one touch computer,POS all in one touch computer,WIFI industrial all in one pc touch screen |
||

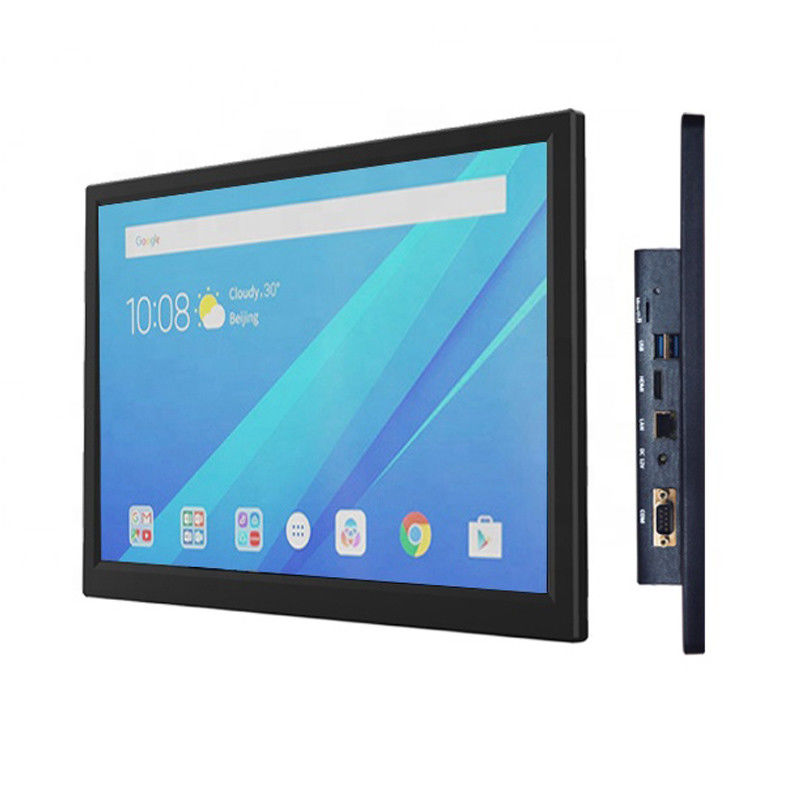

WIFI BT IPS Android Tablet Fanless Rockchip RK3566 15.6 inch Industrial POS Mini All in One Touch Computer
Product Features
1. Mini size, 15.6 inch portable all in one touch pc for industry, business, education,
2. Low Power, 12V/2A, less than 10w per hour
3. Rochkchip RK3566 CPU, fast speed, up to 2.0GHz
4. WIFI 802.11b/g/n 2.4G, BT4.2, Support 4G LTE
5. COM ports, RS232, can connect external devices
6. RJ45 1000Mbps Gigabite Lan, to ensure better and stable network
7. Fanless design, to prevent the dust going into the machine
8. 1920*1080 IPS screen, Multi touch all in one pc, software keyboard and touch screen to facilitate your life

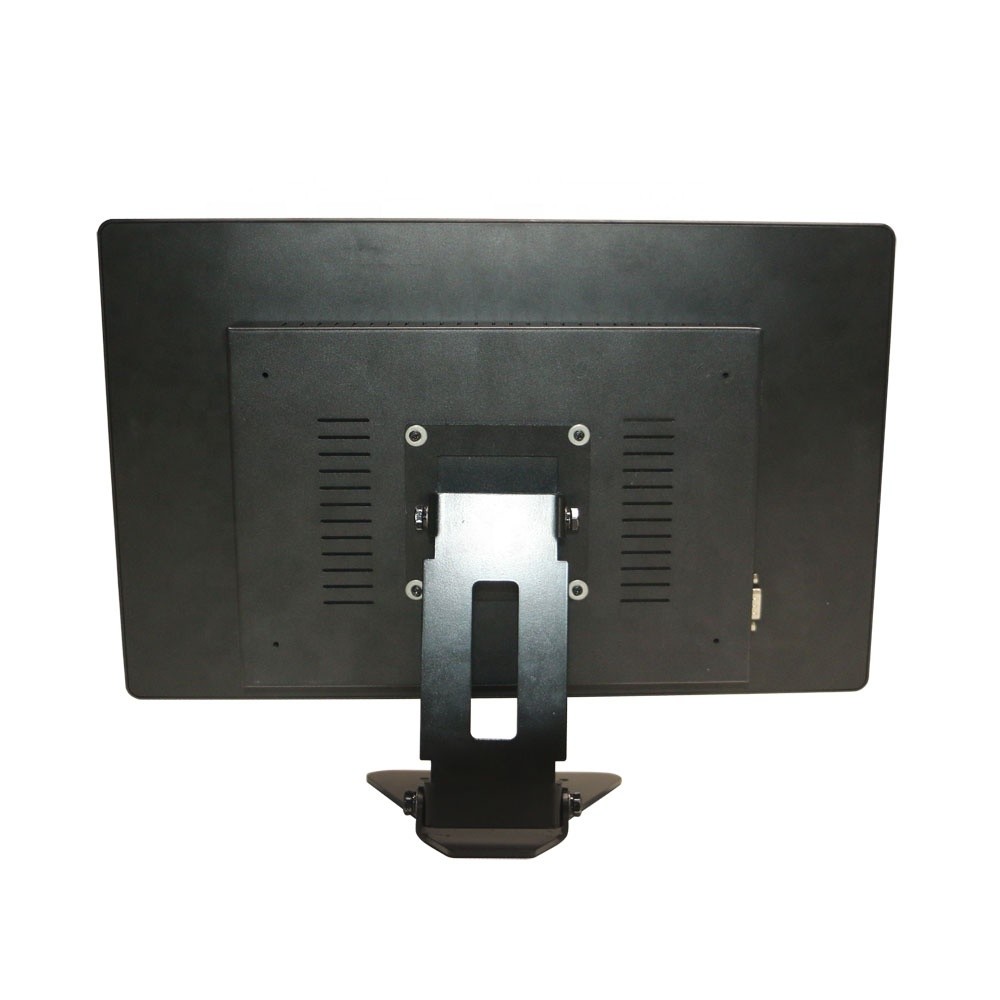

9. Standard 75*75mm Vesa Holes, can be mounted onto wall or desk
10. Wide usage, POS, education, 3D printing, video meeting, industrial control, advertising display etc
Specifications
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | 15.6" All-in-one PC |
| Dimensions | 379 x 241 x 44mm | |
| Weight | 1.6KG | |
| LCD | Screen Size | 15.6" |
| Screen Resolution | 1920×1080 (IPS) | |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Type | / |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | RK3566 Quad-core Cortex-A55 |
| Speed | Up to 2.0GHz | |
| GPU | Type | Mali-G52 |
| Memory | Capacity | 2GB |
| Storage | eMMC | 32GB |
| TF Card | Optional | |
| Speaker | Built-in | 8Ω/1W |
| Micphone | Built-in | Optional |
| G-sensor | Built-in | Yes |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11b/g/n 2.4G |
| Blue tooth | BT Module | Bluetooth4.2 |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
| 4G LTE | Support 4G LTE on expansion Board | Optional (expansion Board) |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×2pcs |
| USB Interface | USB2.0 | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc (up to 256GB) |
| Audio Jack | 3.5mm headphone (Output Only) | ×1pc |
| HD MI | HDMI 2.0 (Support 4K@60fps output) | ×1pc |
| RTC Real Time Clock | RTC Hardware Clock | ×1pc |
| COM Port | DB9 (RS232) | ×1pc |
| CAN Port | Support CAN Port on expansion Board | Optional (expansion Board) |
| Button Switch: | ||
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| Restart | Restart by Short Press | ×1pc |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 12V/2A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Power on/off by RTC | Optional | |
| Operating System | Android11 | Yes |
| Linux 4.19 | Optional (Meet the MOQ order) | |
| Environment: | ||
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
