| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | IPC-G01-4321HH-RK3399 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | RK3399 | RAM: | 2GB RAM |
|---|---|---|---|
| Storage: | 16GB EMMC | Serial Port: | RS232×3pcs+RS485×1 |
| WIFI: | 5G&2.4G Dual-band | Bluetooth: | Bluetooth4.1 |
| Network: | 1*RJ45 Gigabit Lan | Dimension: | 180mm×165mm×50mm |

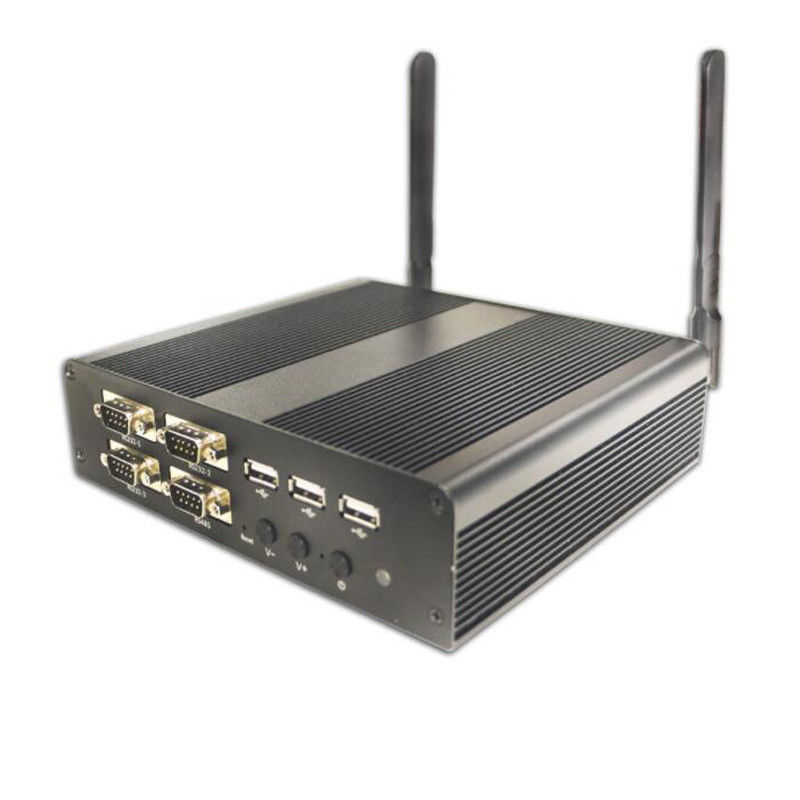

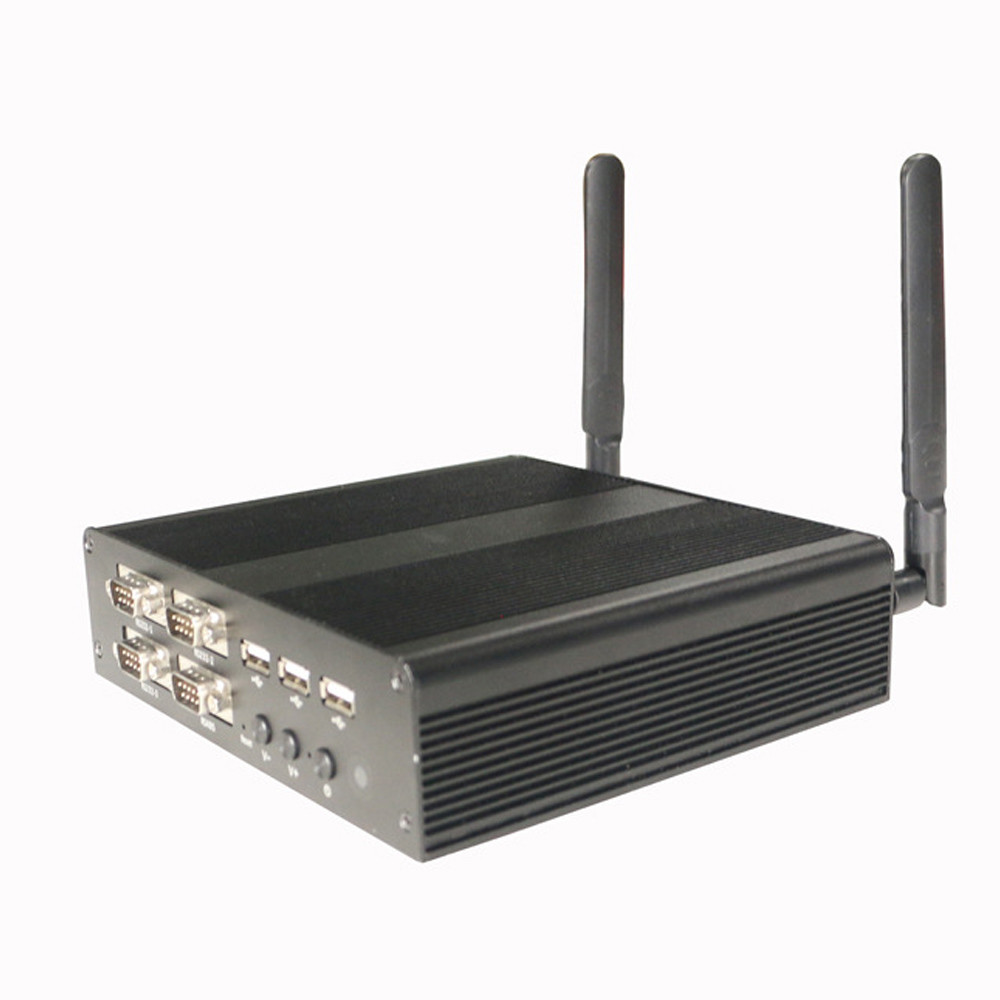

RK3399 Android Fanless industrial mini pc 4COM 5USB daul wifi BT iptv receiver
Key features
Integrated RK3399 (big.LITTLE Dual-core A72 + Quad-core A53)
Mali-T860MP4 GPU
2GB memory
Emmc 16GB is Standard; 32GB/64GB is Optional
RS232×3pcs+RS485×1
2* USB3.0, 3*USB2.0
1*RJ45 gigabit LAN
Support WIFI BT
1*HDMI 2.0 Output
1* HDMI1.4 Input
DC 12V/3A power supply
Size: 180*162*48mm
Specification
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | Industrial PC |
| Dimensions | 180mm×165mm×50mm | |
| Weight | 1Kg | |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | RK3399 (big.LITTLE Dual-core A72 + Quad-core A53) |
| Expend Screen | Dual-core A72 up to 1.8GHz + Quad-core A53 up to 1.4GHz | |
| GPU | Type | Mali-T860MP4 GPU |
| Memory | Capacity | 2GB |
| Storage | eMMC | 16GB is Standard; 32GB/64GB is Optional |
| SSD | PCI-E 2240mm is Optional | |
| SATA 2.5“ HDD | N/A | |
| Speaker | Built-in | Optional |
| G-sensor | Built-in | N/A |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module: Broadcom AP6356S | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band 2T2R |
| Bluetooth | BT Module: Broadcom AP6356S | Bluetooth4.1 |
| 4G/LTE | Built-in | 4G LTE module on PCI-E is Optional |
| GPS | Built-in | GPS module on PCI-E is Optional |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×2pcs |
| USB2.0 | ×3pcs | |
| COM Port | RS232 / RS485 | ×4pcs (RS232×3pcs+RS485×1) |
| UART | UART(RX,TX) | ×2pcs (Support expand TTL board) |
| GPIO | GPIO | 4pcs (Support expand TTL board) |
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional |
| Audio | 3.5mm standard headphone+Microphone | ×1pc |
| HDMI out | HDMI 2.0 Output | ×1pc (up to 4K@60fps) |
| HDMI input | HDMI1.4 Input | ×1pc |
| Button connector | Support expand Button board | Power On/Off; Volume-; Volume+; Reset; Custom button |
| Watch Dog | Built-in Hardware Watch Dog | Yes |
| RTC | RTC battery connector | Yes |
| Other | IR/LED/ADC connector | ×1pc |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: | ||
| Type | Details | Descriptions |
| OS | Android 7.1 or above | Yes |
| Linux | Debian 8 or Ubuntu (Try it by user) | |
