| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-HRF8RK35 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Screen: | 8 Inch Capacitive Multi-touch | Color: | Black |
|---|---|---|---|
| CPU: | Rockchip RK3566 Cortex A55 Quad-Core | RAM: | 2GB Ram |
| Storage: | 32GB EMMC | Rugged Durability: | Waterproof And Dustproof Rate:IP67 |
| Resolution: | 1280*800 Pixels | ||
| Highlight: | Car Industrial Rugged Tablet PC,Industrial Rugged Tablet PC RK3566,IP67 rugged windows tablet pc |
||

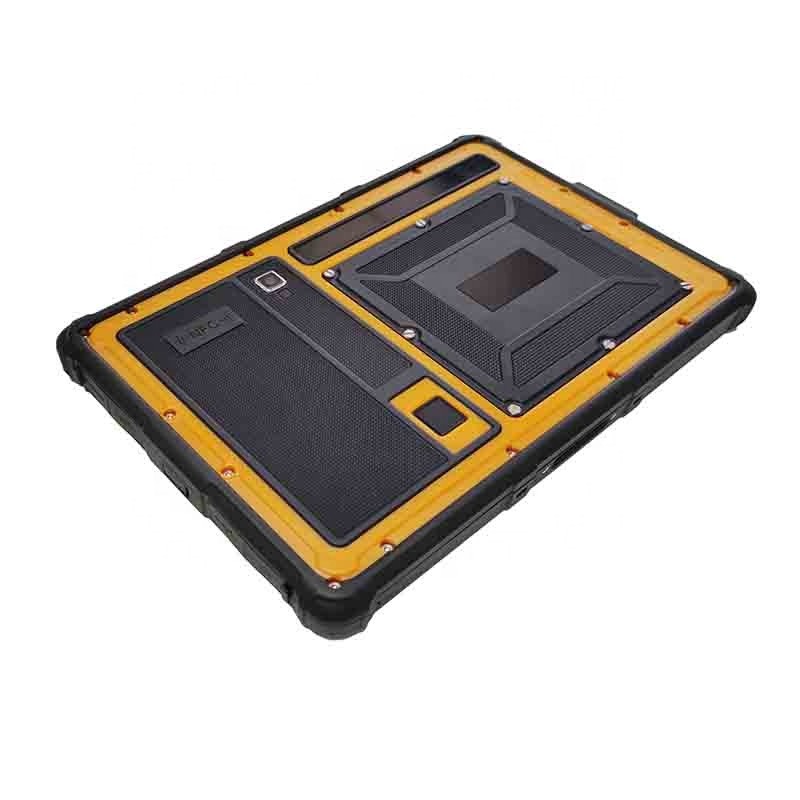

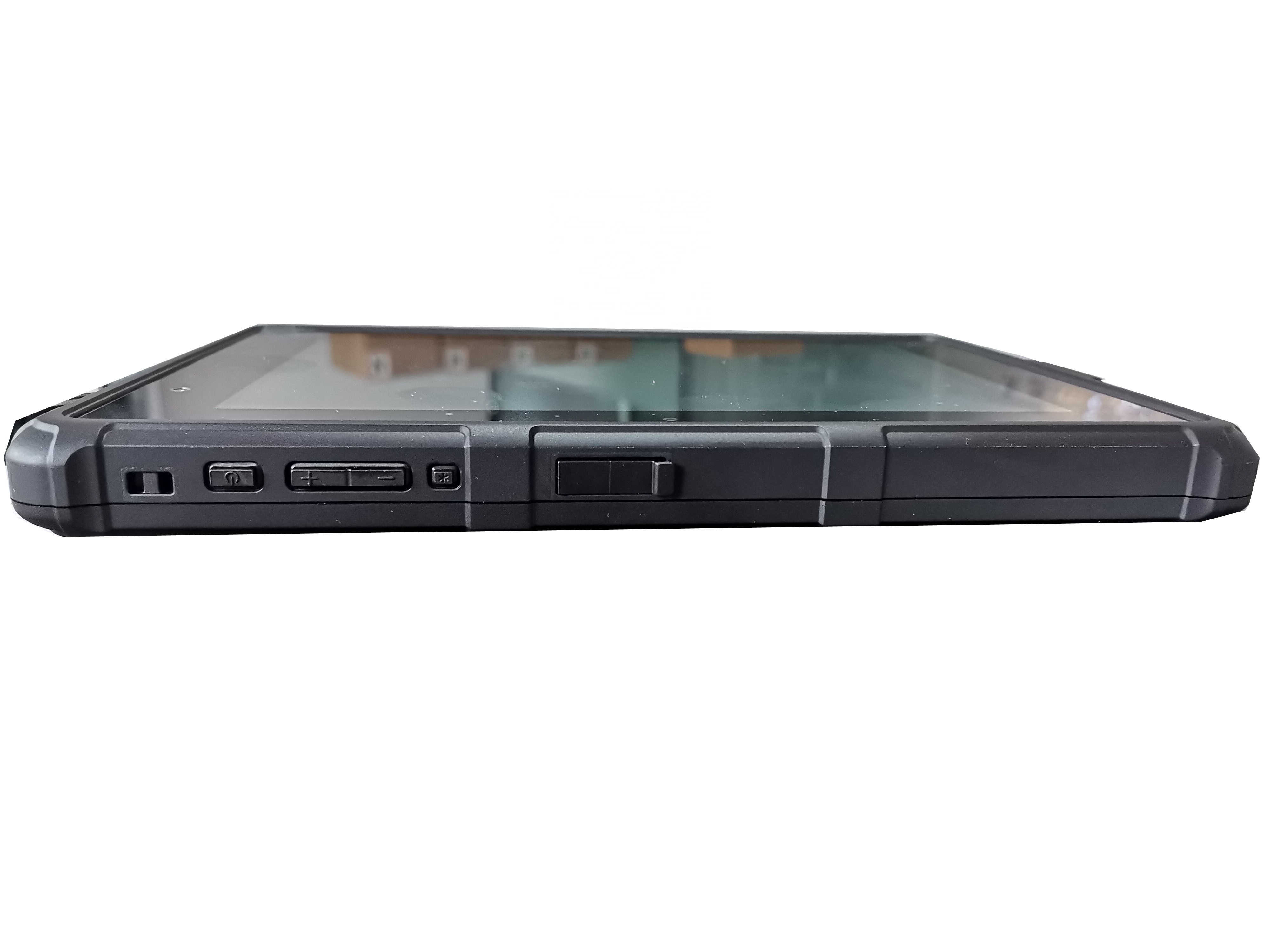

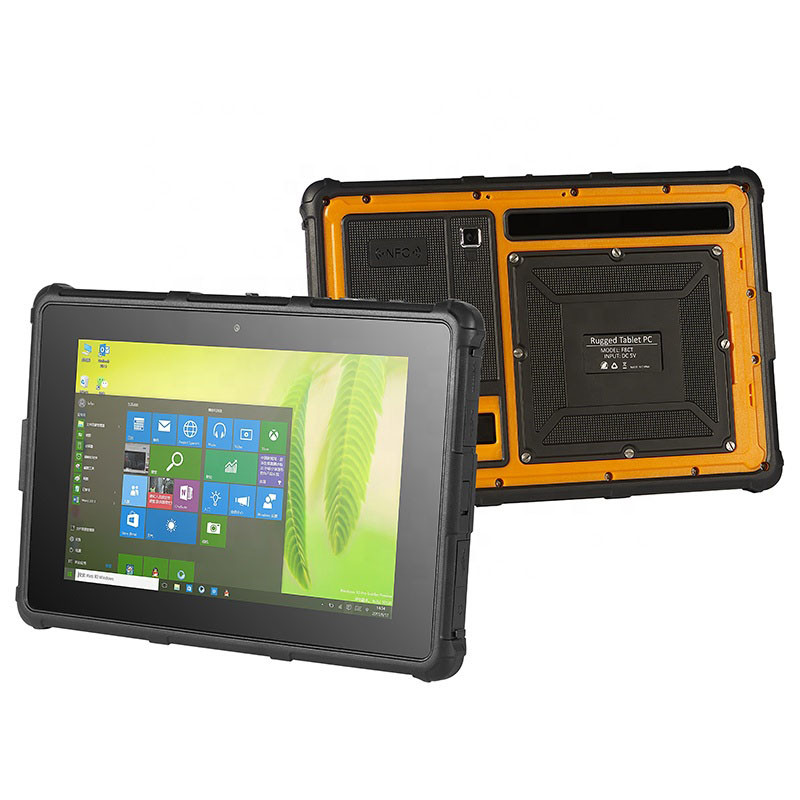

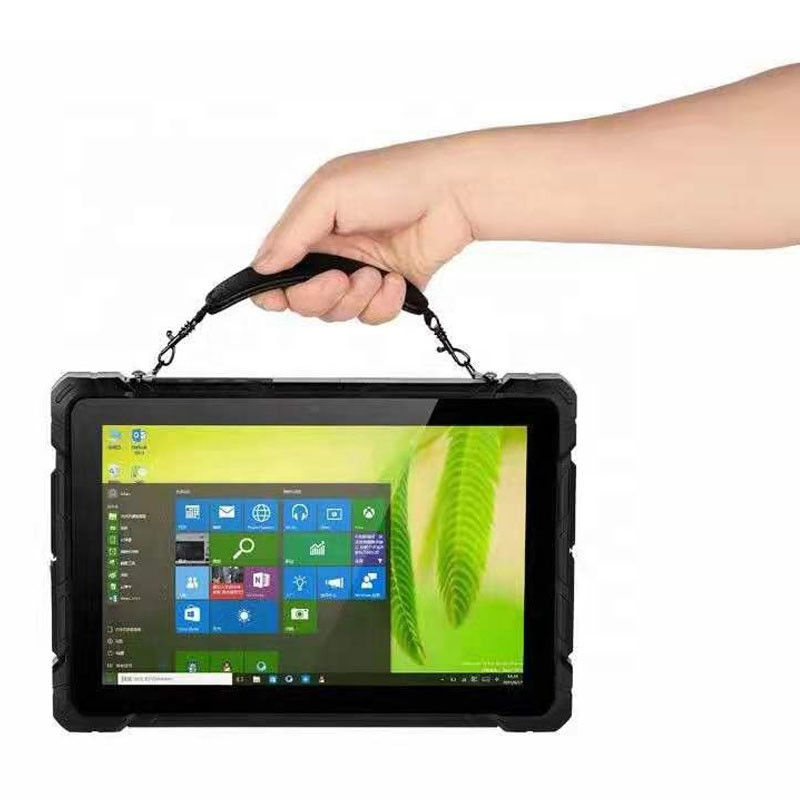

Rockchip RK3566 Portable 8 inch GPS Waterproof IP67 Tough Robust Car Industrial Rugged Tablet PC
1. IP67 waterproof, shockproof, dustproof, durable, suitable for extreme conditions
2. Rockchip powerful CPU, fast speed
3. Multi interfaces, USB3.0, HD-MI(up to 4K), SIM card slot, TF card reader
4. Dual band wifi, 2.4G&5G
5. Andorid 11 OS or above
6. Low power consumption, less than 7w
7. 5 points multi touch screen, 800*1280 High Definition IPS, sunlight viewable
8. Support NFC, GPS, QR code scanning, 4G LTE, face recognition
9. With 5500mAh rechargeable replaceable battery
10. Wide usage, vehilce diagnostic, warehouse management, outside activities, security monitoring, industrial control,
forklift, oil detection, hospital, MES system etc
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | IP67 Rugged Tablet PC |
| Dimensions | 234×159×21.5mm | |
| Weight | 0.7KG | |
| LCD | Screen Size | 8" |
| Screen Resolution | 800×1280 (IPS+300ANSI) | |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Type | Rechargeable lithium polymer |
| Capacity | 5500mAh/3.7V | |
| Working Time | Over 6 hours (FHD local video display) | |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | Rockchip RK3566 Cortex A55 Quad-Core |
| Speed | 1.8GHz | |
| GPU | Type | Mali-G52 |
| Memory | Capacity | 2GB |
| Storage | eMMC | 32GB |
| Camera | Front | 2M |
| Rear | 5M | |
| Speaker | Built-in | 8Ω/1W with water proof x2pcs |
| Micphone | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module: | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band |
| Blue-tooth | BT Module: | Bluetooth4.2 |
| QR code Scanners | Optional | Optional |
| NFC | Optional | Optional |
| GPS | BD2/GPS | Optional |
| Fingerprinter | Capacitive fingerprint sensor | Optional |
| 4G LTE | M.2 slot | Optional |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×1pc |
| Type-C (2.0) | ×1pcs (Base on USB2.0; DC-IN AND data transmit) | |
| SD / TF Card reader | TF Card reader | ×1pc (up to 256GB) |
| SIM Card Slot | SIM Slot for 4G LTE | Optional |
| Audio Jack | 3.5mm standard | ×1pc |
| HD-MI | Micro HD-MI 2.0 | ×1pc |
| Video output through HD-MI | Up to 4K@60fps | |
| Button Switch: | ||
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| Hotkeys | Control QR Scanner | ×1pc |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 5V/3A (Type-C) | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Handle Straps | Optional | Optional |
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Operating System | Andorid12 | Yes |
| Linux | Test by end user | |
| Environment: | ||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
| IP67 | IP67 Standard | Yes |
