| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-HRF7RK33 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Screen: | 10.1 Inch Capacitive Multi-touch | Color: | Black |
|---|---|---|---|
| CPU: | RK3399 | RAM: | 4GB Ram |
| Storage: | 64GB EMMC | Rugged Durability: | Waterproof And Dustproof Rate:IP67 |
| Resolution: | 1280*800 Pixels | ||
| Highlight: | 10 inch Rugged Tablet PC,IP67 Industrial Rugged Tablet PC,10 inch industrial rugged tablet pc |
||

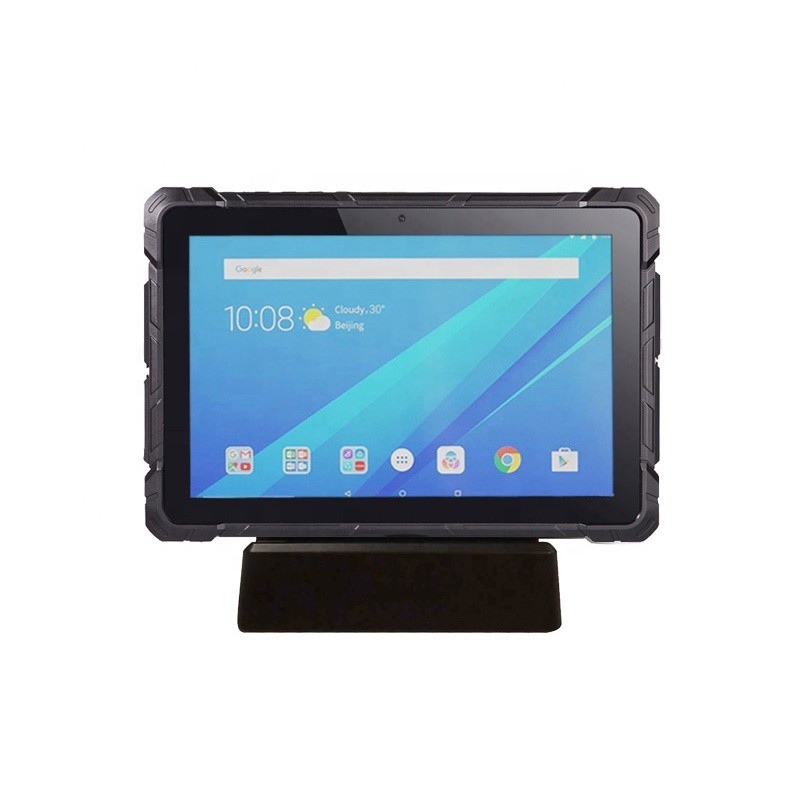

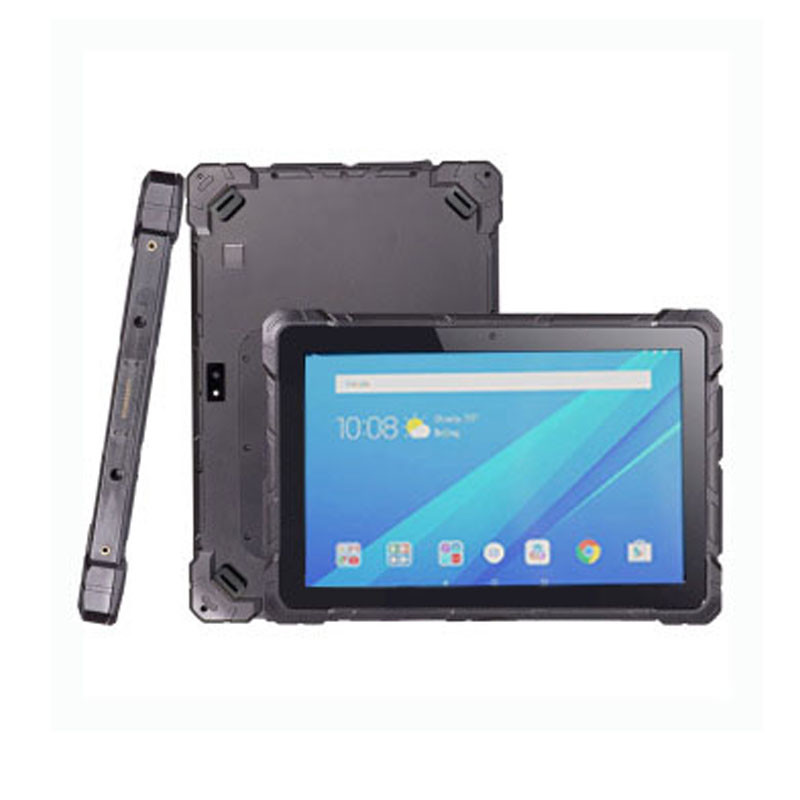

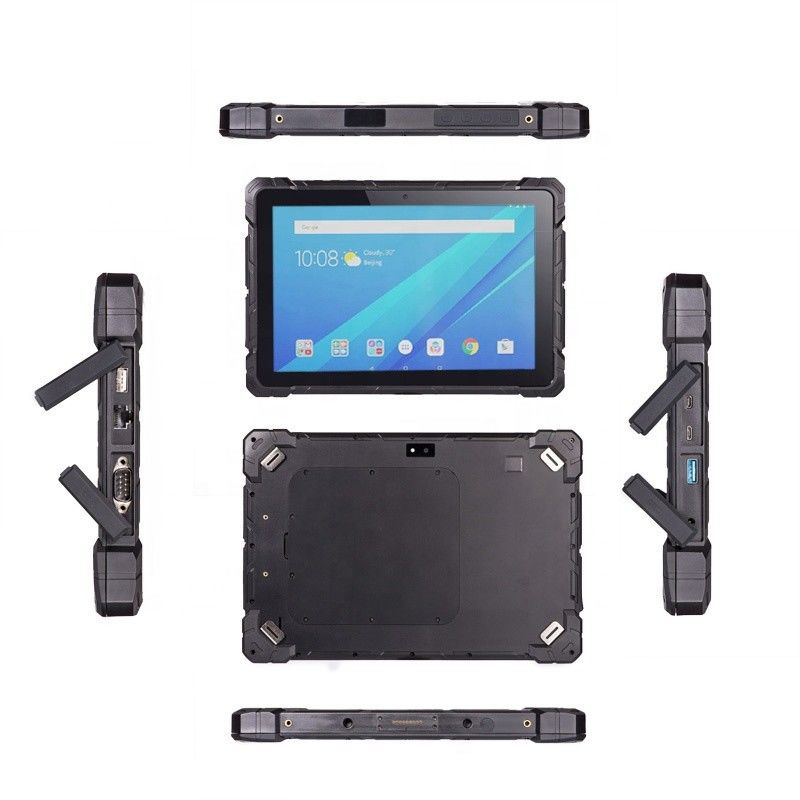

10 inch GPS 4G LTE NFC Android RK3399 IP67 Industrial rugged tablet pc with RS232 COM
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | IP67 Rugged Tablet PC |
| Dimensions | 280×184×26.5mm | |
| Weight | 1.2KG | |
| LCD | Screen Size | 10.1" |
| Screen Resolution | 1280×800 (IPS+HD+300ANSI) | |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Type | Rechargeable lithium polymer |
| Capacity | 12000mAh/3.7V | |
| Working Time | Over 8 hours (FHD local video display) | |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| Speed | Up to 1.8GHz | |
| GPU | Type | Mali-T864 GPU |
| Memory | Capacity | 4GB |
| Storage | eMMC | 64GB |
| Camera | Front | 2M |
| Rear | 5M | |
| Speaker | Built-in | 8Ω/1W with water proof |
| Micphone | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band |
| Blue tooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.2 |
| 3G/4G LTE | Optional | Optional with external small PCBA |
| QR code Scanners | Optional | Optional |
| NFC | Optional | Optional |
| GPS | BD2/GPS | Optional |
| Fingerprinter | Capacitive fingerprint sensor | Optional |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×1pc |
| USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0 (Debug port)×1) | |
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional |
| Audio Jack | 3.5mm standard | ×1pc |
| HDM I | Micro HDMI1.4 | ×1pc |
| Video output through HDM I | Up to 4K | |
| COM Port | DB9 (RS232) | ×1pc |
| Button Switch: | ||
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| CMOS Reset | Reset by Short Press | / |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Handle Straps | Optional | Optional |
| Extension Docking | USB2.0; Power charging; RJ45; RS232 | Optional |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Wake up on Lan | Wake up on Lan by RJ45 | / |
| PXE | Preboot Execution Environment | / |
| Operating System | Android9.0 or above | Yes |
| Linux | Test by end user | |
| Environment: | ||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
| Certification: | ||
| IP67 | IP67 | Yes |
Product Features

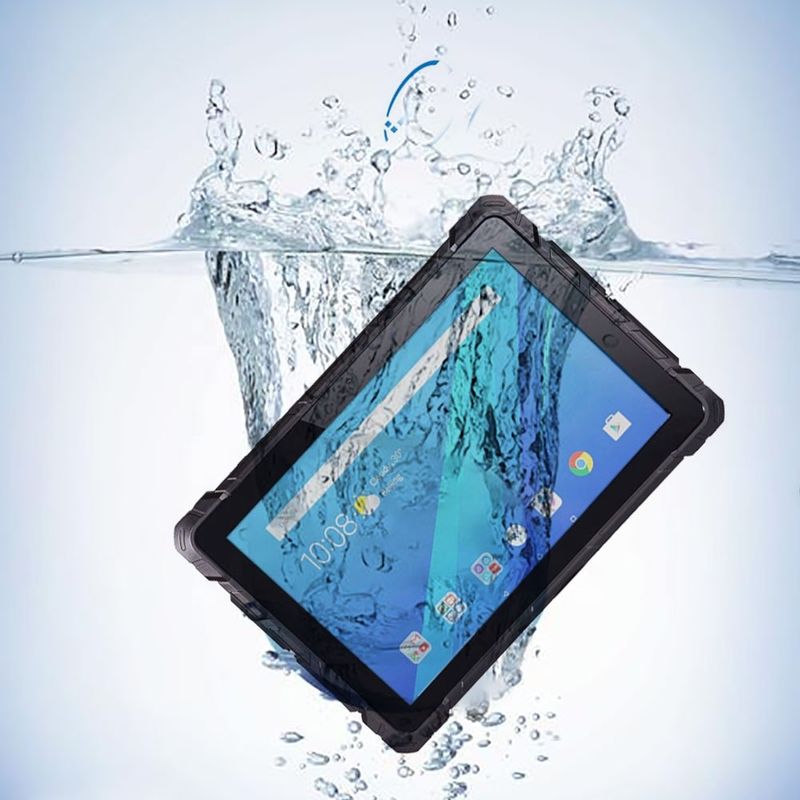

1. IP67 waterproof, shockproof, dustproof, anti-vibration, anti-crush, suitable for critical environment

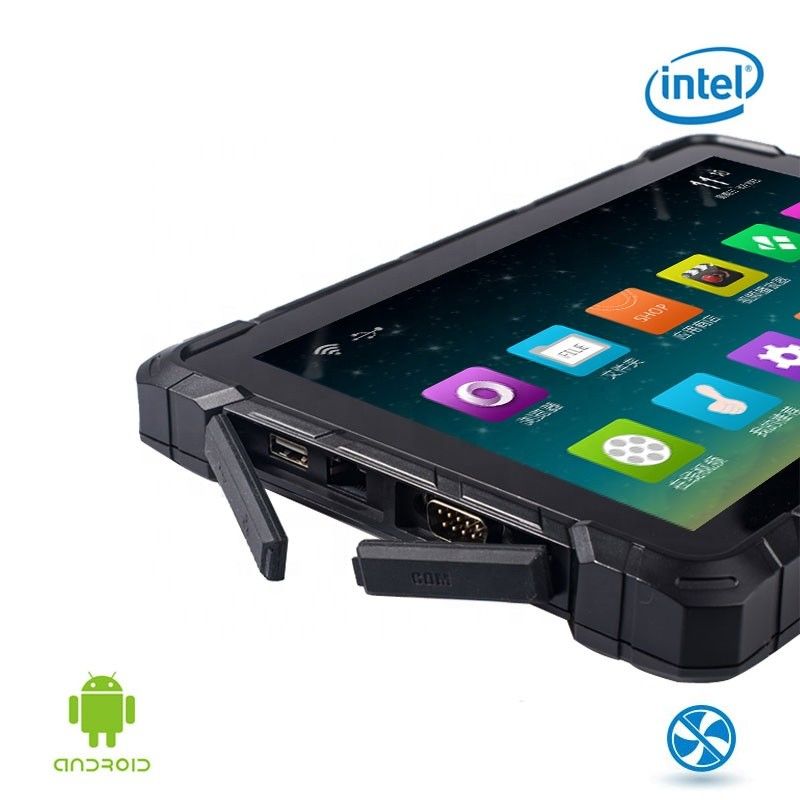

2. Multi interfaces, RJ45, USB3.0, USB2.0, RS232, HDM I, TF card reader, SIM card slot
3. Dual band wifi, 2.4G&5G, and 1000Mbps Gigabit Lan to maintain stable network
4. Android 9 operation system
5. 10 points multi touch screen
6. With 12000mAh rechargeable battery
7. HD IPS, sunlight viewable
8. Low power, DC 12V/3A
9. Docking charge is supported
10. 10.1inch size, portable
