Screen: | 10.1 Inch Capacitive Multi-touch | Color: | Black |
---|---|---|---|
CPU: | Intel Cherry Trail X5-Z8350 Quad-Core | RAM: | 4GB Ram |
Storage: | 64GB EMMC | Rugged Durability: | Waterproof And Dustproof Rate:IP67 |
Resolution: | 1280*800 Pixels | ||
Highlight: | IP67 Rugged Tablet PC,RS232 Rugged Tablet PC,RS232 rugged tablet pc windows 10 |

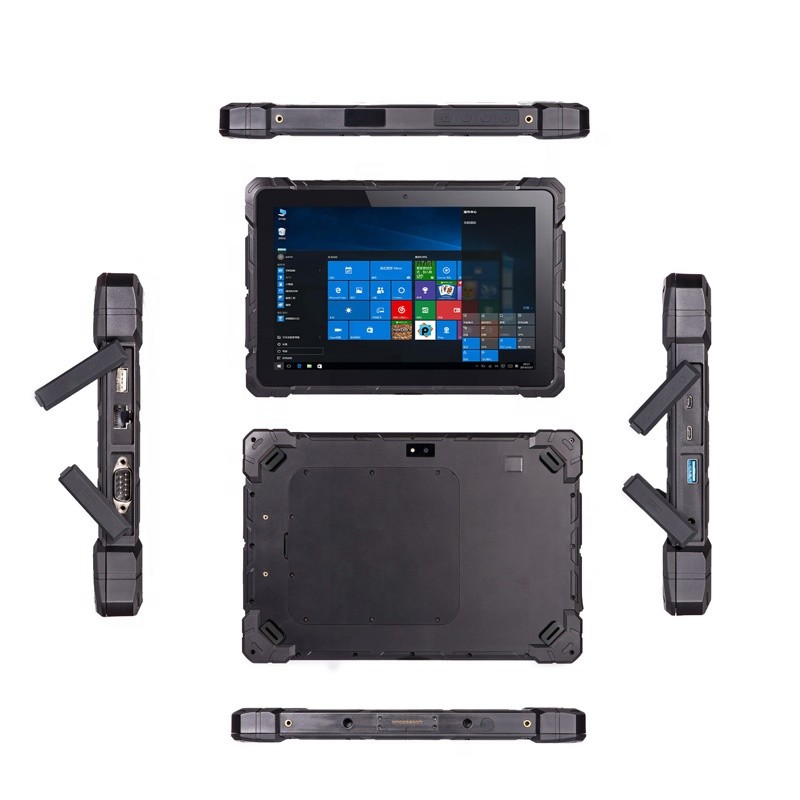

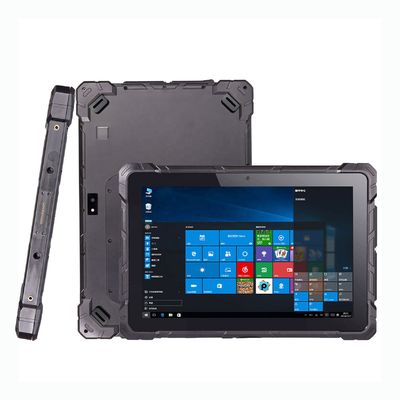

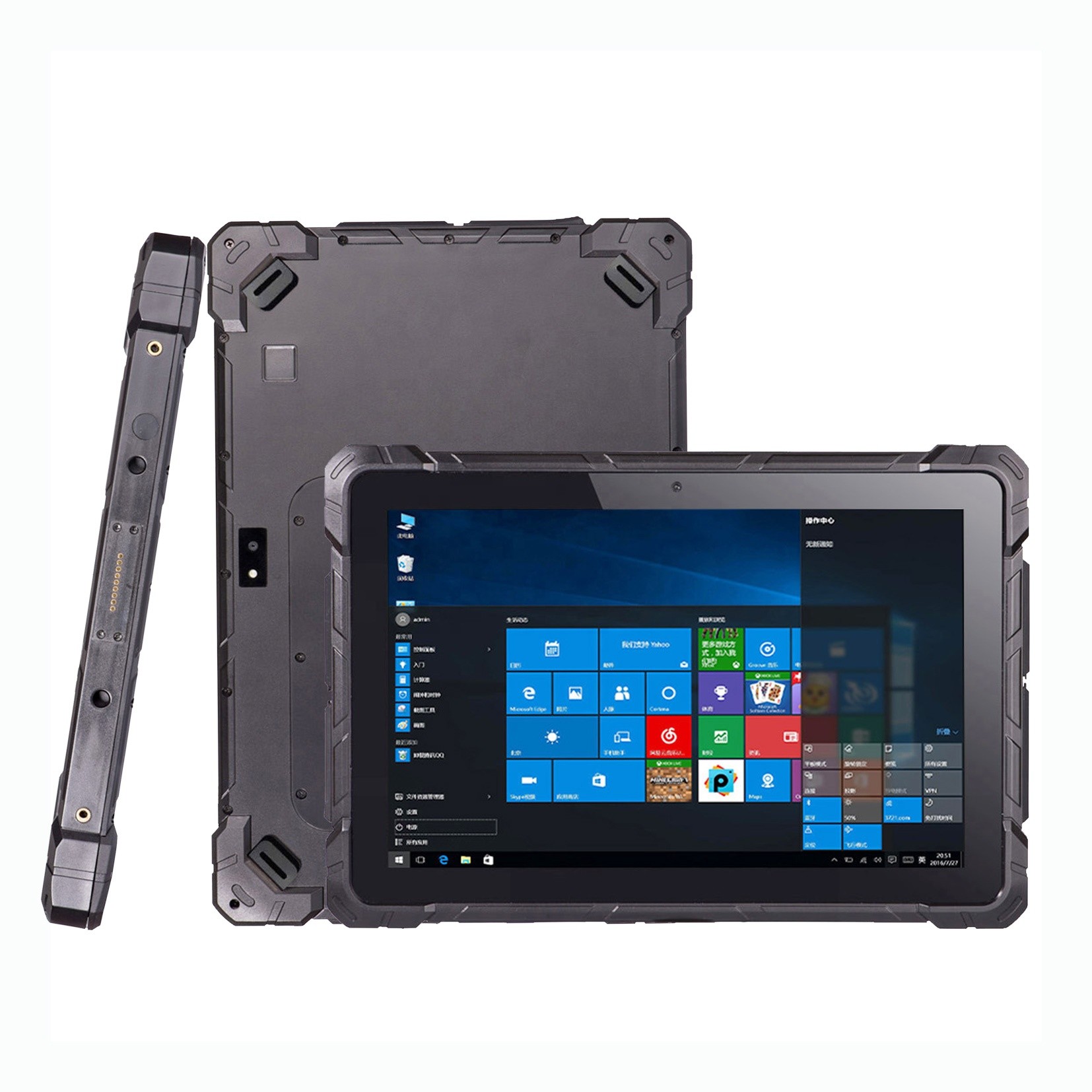

Powerful 10.1 inch x5-Z8350 Quad-Core Windows 10 Industrial IP67 Rugged Tablet PC with RS232 COM
System Physical Standard Configuration: | ||
Type | Details | Descriptions |
Product Form | Form Factor | IP67 Rugged Tablet PC |
Dimensions | 280×184×26.5mm | |
Weight | 1.2KG | |
LCD | Screen Size | 10.1" |
Screen Resolution | 1280×800 (IPS+HD+300ANSI) | |
TP | Touch Module | G+G Multi-Touch |
Battery | Type | Rechargeable lithium polymer |
Capacity | 12000mAh/3.7V | |
Working Time | Over 8 hours (FHD local video display) | |
System Hardware Configuration: | ||
Type | Details | Descriptions |
CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core |
Speed | 1.44GHz ~ 1.92GHz | |
GPU | Type | Intel HD Graphics Gen8 |
Memory | Capacity | 4GB |
Storage | eMMC | 64GB |
Camera | Front | 2M |
Rear | 5M | |
Speaker | Built-in | 8Ω/1W with water proof |
Micphone | Built-in | Yes |
G-sensor | Built-in | Yes |
Network Connections: | ||
Type | Details | Descriptions |
WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band |
Blue tooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.0 |
3G/4G LTE | Optional | Optional with external small PCBA |
QR code Scanners | Optional | Optional |
NFC | Optional | Optional |
GPS | BD2/GPS | Optional |
Fingerprinter | Capacitive fingerprint sensor | Optional |
Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
Interface Configuration: | ||
Type | Details | Descriptions |
USB Interface | USB3.0 | ×1pc |
USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1) | |
SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
SIM Card Slot | SIM Slot for 3G/4G LTE | Optional |
Audio Jack | 3.5mm standard | ×1pc |
HD MI | Micro HDMI1.4 | ×1pc |
Video output through HD MI | Up to 4K | |
COM Port | DB9 (RS232) | ×1pc |
Button Switch: | ||
Type | Details | Descriptions |
Power | On/Off | ×1pc |
Volume | Down/UP | ×1pc |
Shortcut key | Shortcut key for QR code Scanners | ×1pc |
Main Accessories: | ||
Type | Details | Descriptions |
Power adapter | DC 5V/3A | ×1pc |
User's Manual | User's Manual | ×1pc |
Handle Straps | Optional | Optional |

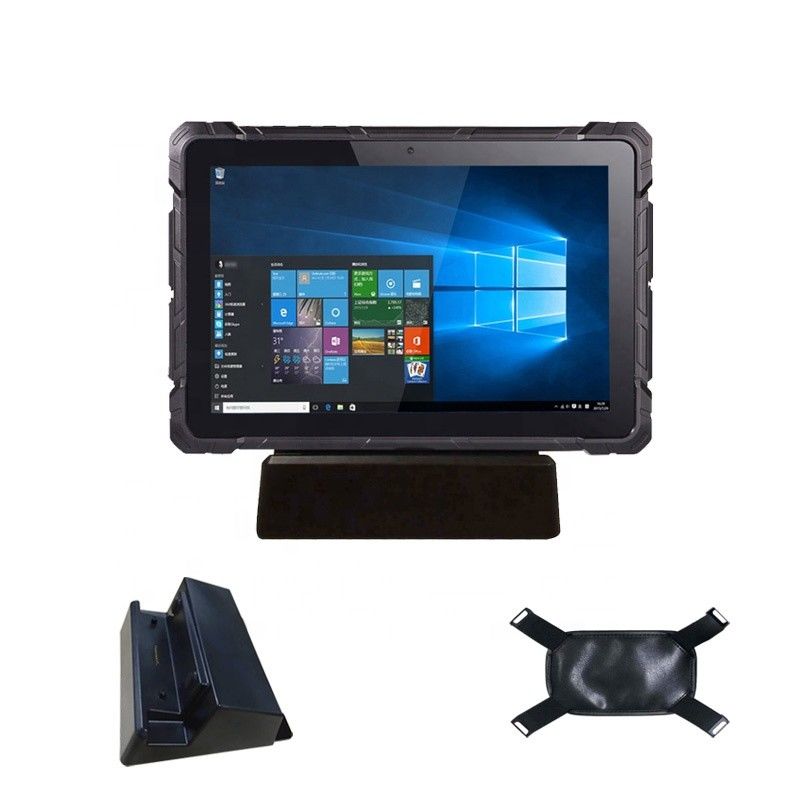

Extension Docking | USB2.0; Power charging; RJ45; RS232 | Optional |
Software Configuration: | ||
Type | Details | Descriptions |
Wake up on Lan | Wake up on Lan by RJ45 | / |
PXE | Preboot Execution Environment | / |
Operating System | Windows 10 | Optional |
Linux | Test by end user | |
Environment: | ||
Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
Product Features
1. IP67 waterproof, shockproof, dustproof, anti-vibration, anti-crush, suitable for critical environment

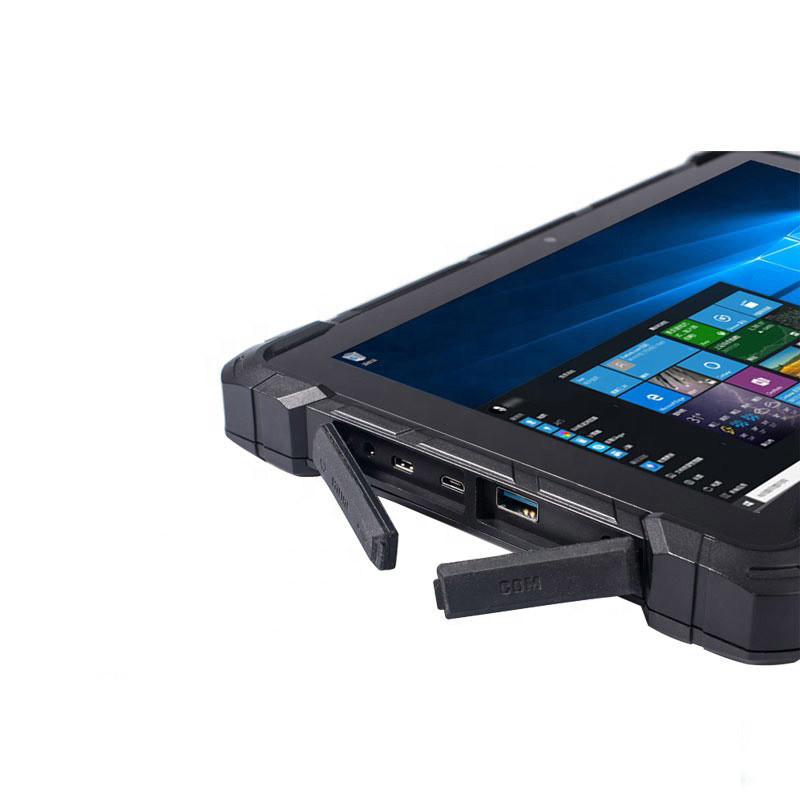

2. Multi interfaces, RJ45, USB3.0, USB2.0, RS232, HD-MI, TF card reader, SIM card slot
3. Dual band wifi, 2.4G&5G, and 1000Mbps Gigabit Lan to maintain stable network
4. Windows10 Professional operation system
5. 10 points multi touch screen
6. With 12000mAh rechargeable battery
7. FullHD IPS, sunlight viewable
8. Low power, DC 5V/3A

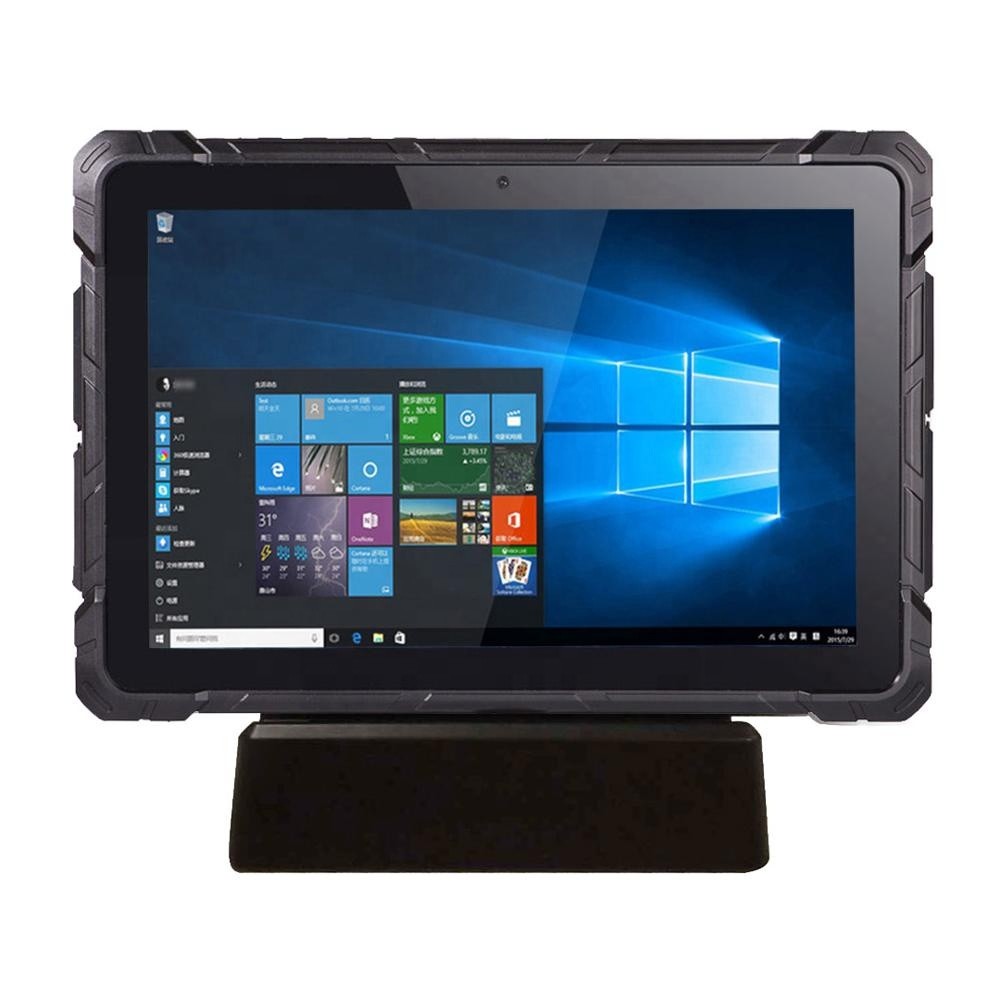

9. Docking charge is supported
10. 10.1inch size, portable
