10.1 inch N4120 Windows 10 Industrial Rugged Tablets PC with RS232 COM Touch Screen Fingerprint

Basic Information
Place of Origin: Shenzhen China
Brand Name: VEGASHINE / OEM
Model Number: VGS-HR10N4C
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 3 to 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 units per Month
Screen: 10.1 Inch Capacitive Multi-touch Color: Black
CPU: Gemini Lake N4120 (Quad-Core) RAM: 8GB Ram
Storage: 128GB EMMC Rugged Durability: Waterproof And Dustproof Rate:IP67
Resolution: 1280*800 Pixels
Highlight:

N4120 rugged tablets pc

,

Windows 10 rugged tablets pc

,

N4120 rugged windows tablet pc



10.1 inch N4120 Windows 10 Touch Screen Fingerprint Industrial Rugged Tablets PC with RS232 COM





System Physical Standard Configuration:
Type Details Descriptions
Product Form Form Factor IP67 Rugged Tablet PC
Dimensions 280×184×26.5mm
Weight 1.15KG
LCD Screen Size 10.1"
Screen Resolution 800×1280 (IPS+HD+300ANSI) (Standard)
TP Touch Module G+G Multi-Touch (10 Points)
Battery Type Rechargeable lithium polymer
Capacity 8000mAh/7.6V
Working Time Over 8 hours (HD local video display)
System Hardware Configuration:
Type Details Descriptions
CPU Type Intel Gemini lake N4120 (Quad-Core)
Speed 1.1GHz ~ 2.6GHz (N4120)
GPU Type Intel UHD 600 Graphics
Memory Capacity 8GB LPDDR4
Storage eMMC 128GB
Camera Front 2M
Rear 5M
Speaker Built-in 8Ω/1W*2pcs with water proof
Microphone Built-in Yes
G-sensor Built-in Yes
Light-sensor Built-in Optional
Network Connections:
Type Details Descriptions
WIFI WIFI Module: Intel AC3165 WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Blue tooth BT Module: Intel AC3165 Bluetooth4.2
4G LTE Optional Optional (Mini PCI-E slot)
QR code Scanners Optional Optional
GPS BD2/GPS/Glonass (Choose two of the three) Optional
NFC Optional Optional
Fingerprinter Optional Optional
RFID UHF band Optional
Ethernet Network RJ-45 1000Mbps Gigabit Lan
Interface Configuration:
Type Details Descriptions
Type-C Type-C 3.1 ×1pc (Support Data transfers and Power output)
USB Interface USB3.0 ×2pcs
SD / TF Card reader TF Card reader ×1pc (up to 256GB)
SIM Card Slot SIM Slot for 4G LTE ×1pc
Audio Jack 3.5mm standard headphone+Microphone ×1pc
HD MI Micro HDMI2.0 ×1pc (Output 4K@60fps UHD video)
COM Port DB9 (RS232) ×1pc
Button Switch:
Type Details Descriptions
Power On/Off ×1pc
Volume Down/UP ×1pc
HotKey Hot Key for QR Scanner ×1pc
Forced outage Power restart when push restart button ×1pc
Main Accessories:
Type Details Descriptions
Power adapter DC 12V/3A ×1pc
User's Manual User's Manual ×1pc
Handle Straps Handle straps and hand clasping Optional
Extension Docking USB2.0; Power charging; RJ45; RS232 Optional
Vehicle Bracket USB2.0; Power charging; RJ45; RS232 Optional
Software Configuration:
Type Details Descriptions
Power on Function By Power Button or Auto Power on Optional
Wake up on Lan Wake up on Lan by RJ45 Yes
PXE Preboot Execution Environment Yes
Security TPM2.0 (Hardware) contained Optional
Operating System Windows 10 Pro or above Yes (Official Windows license is Optional)
Environment:
Temperature Operation Temperature -10oC ~ 55oC (1080p or 4K local video display)
Storage Temperature -20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
Humidity Oprating Humidity 35% ~ 80% relative humidity, Non-condensing
Storage Humidity 20% ~ 93% relative humidity, Non-condensing
Certification:
IP67 IP67 Certification Yes
MIL-STD-810G Match the militry standard of USA Yes



1.IP67 waterproof, shockproof, dustproof, anti-vibration, anti-crash, suitable for harsh environment. Can withstand moisture, extreme temperatures, drops, shocks, vibration, rain, dirt, mud, sand, water, altitude, humidity.

2. Intel Gemini lake N4120 quad core powerful CPU , allows for high speed running of multiple tasks .

3. With HDMI and tablet LCD, can show two different contents at the same time.

4. Fanless design, can work 7 days 24 hours without stopping.

5. With TPM2.0, can encrypt your files

6. Built with shockproof metal, can be anti-shock for 120cm height for wooden floor

7. Easy to be detached SIM card slot

8. Multi interfaces, RJ45, USB3.0, Type C 3.1, RS232, HD-MI, TF card reader, SIM card slot

9. Dual band wifi, 2.4G&5G, and 1000Mbps Gigabit Lan to maintain stable network

10. Windows 10 Professional operation system, 8GB system memory, 128GB storage drive.

11. Up to 512GB expandable memory through micro SD or TF card.

12. With 45000mAh rechargeable battery, dual cameras, BT4.2

13. Support docking charge, 4G LTE, GPS, NFC, RFID, Fingerprinter, QR code scanners

14. HD IPS, 1280*800 300ANSI, sunlight readable

15. Low power, DC 12V/3A

16. 10.1inch size, portable

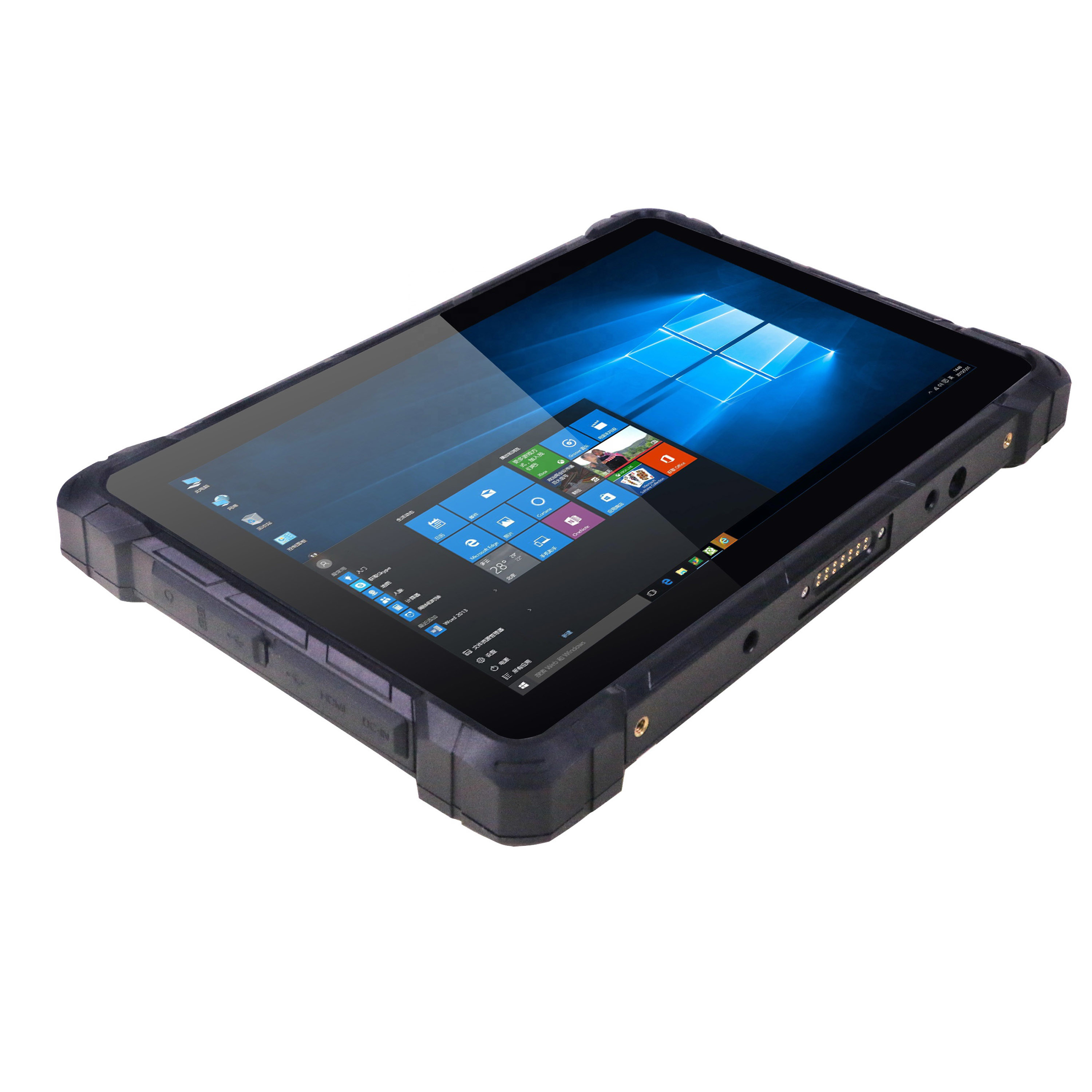

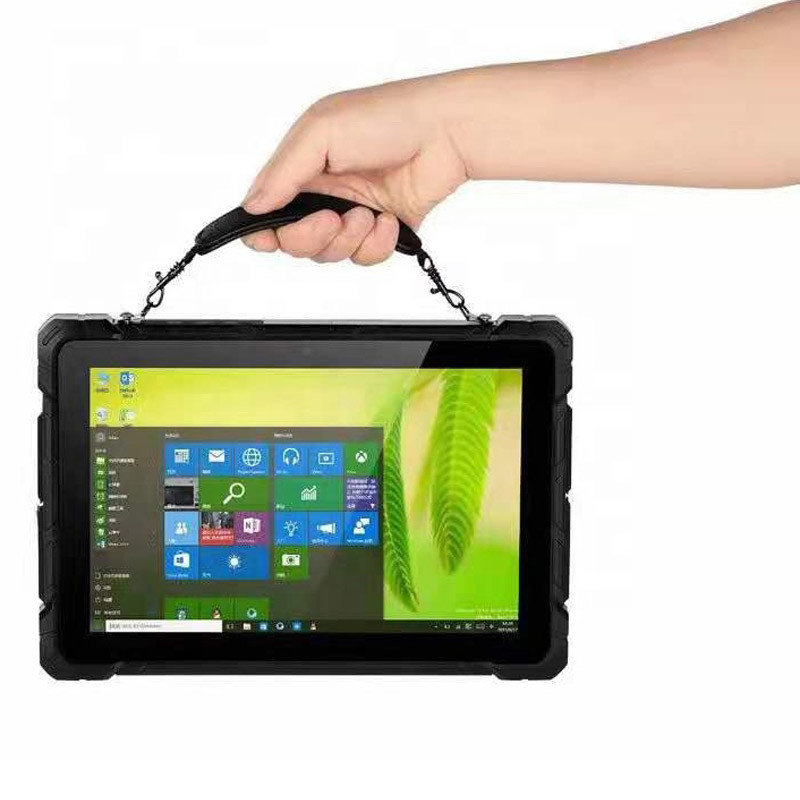

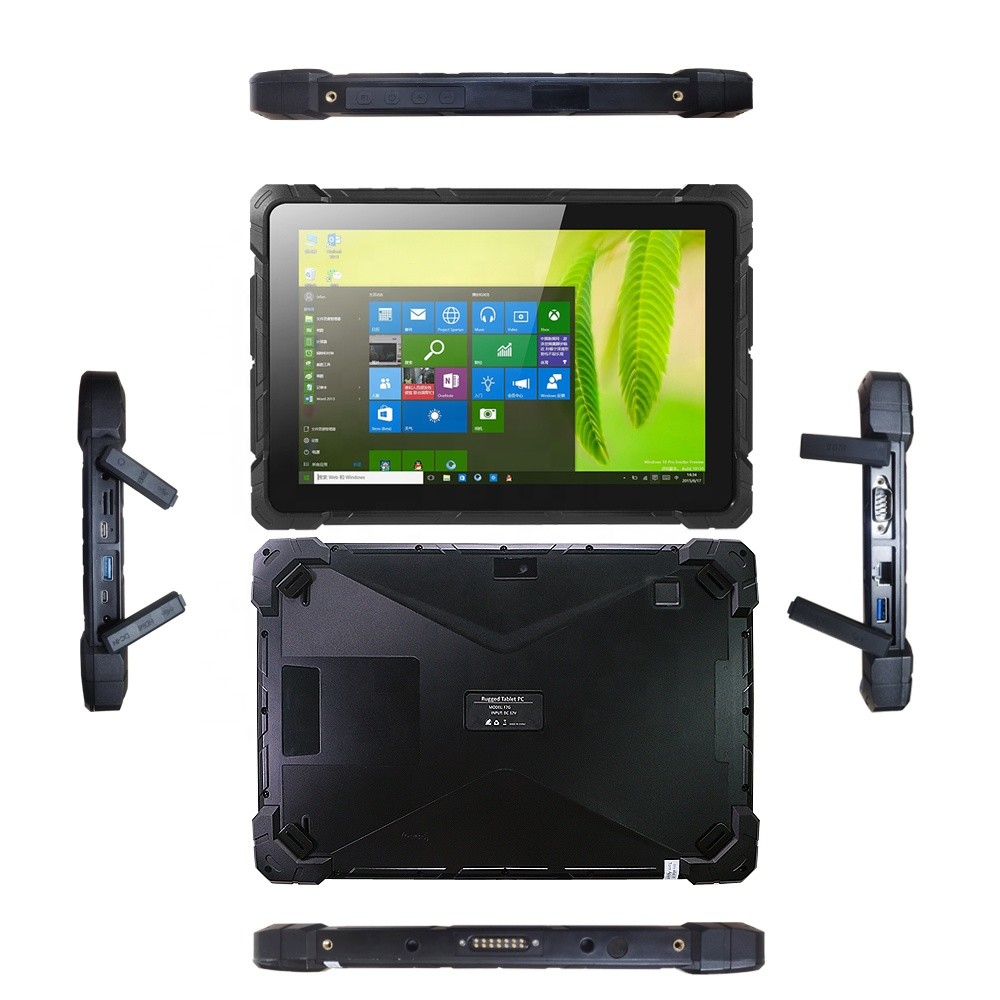

10.1 inch N4120 Windows 10 Industrial Rugged Tablets PC with RS232 COM Touch Screen Fingerprint 010.1 inch N4120 Windows 10 Industrial Rugged Tablets PC with RS232 COM Touch Screen Fingerprint 110.1 inch N4120 Windows 10 Industrial Rugged Tablets PC with RS232 COM Touch Screen Fingerprint 2

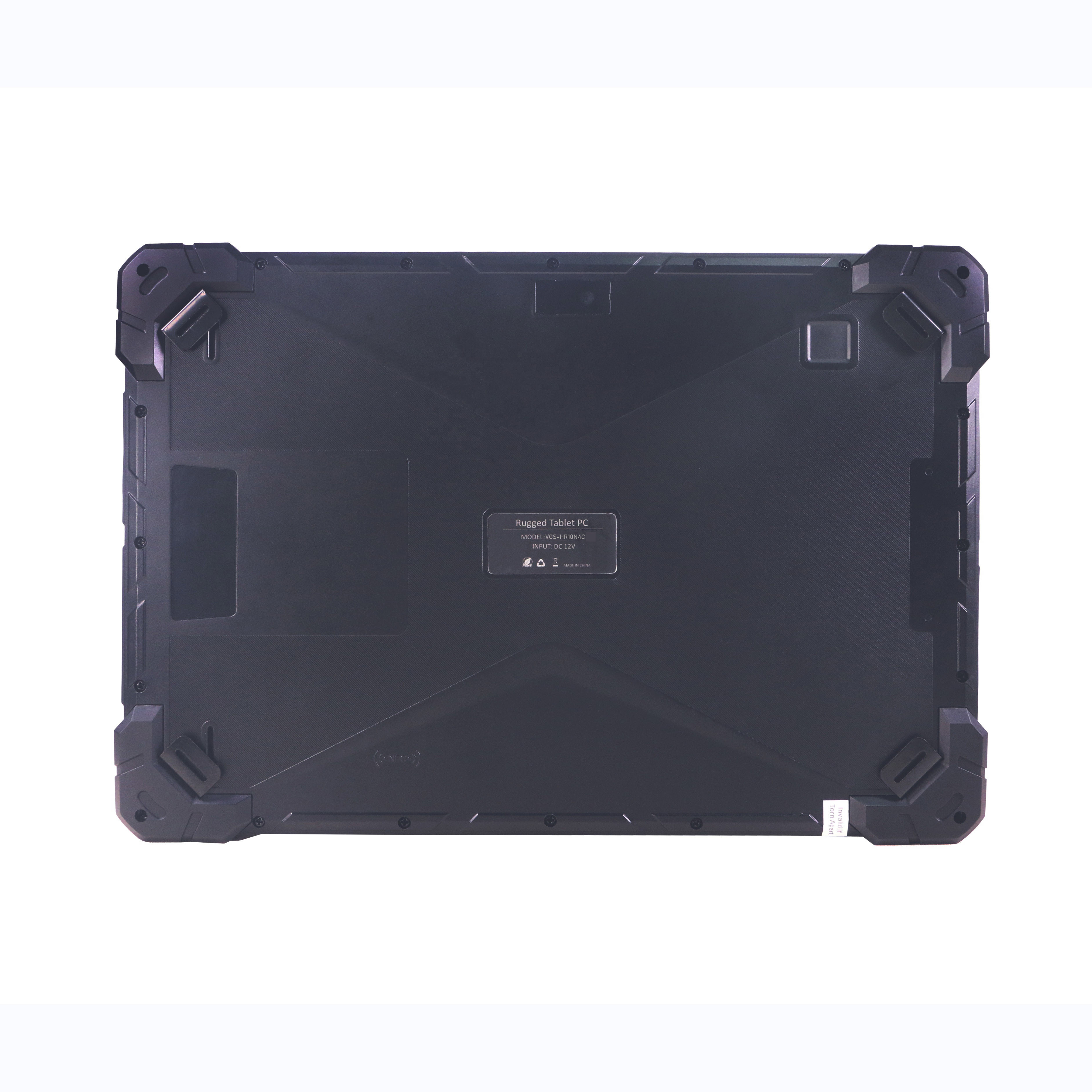

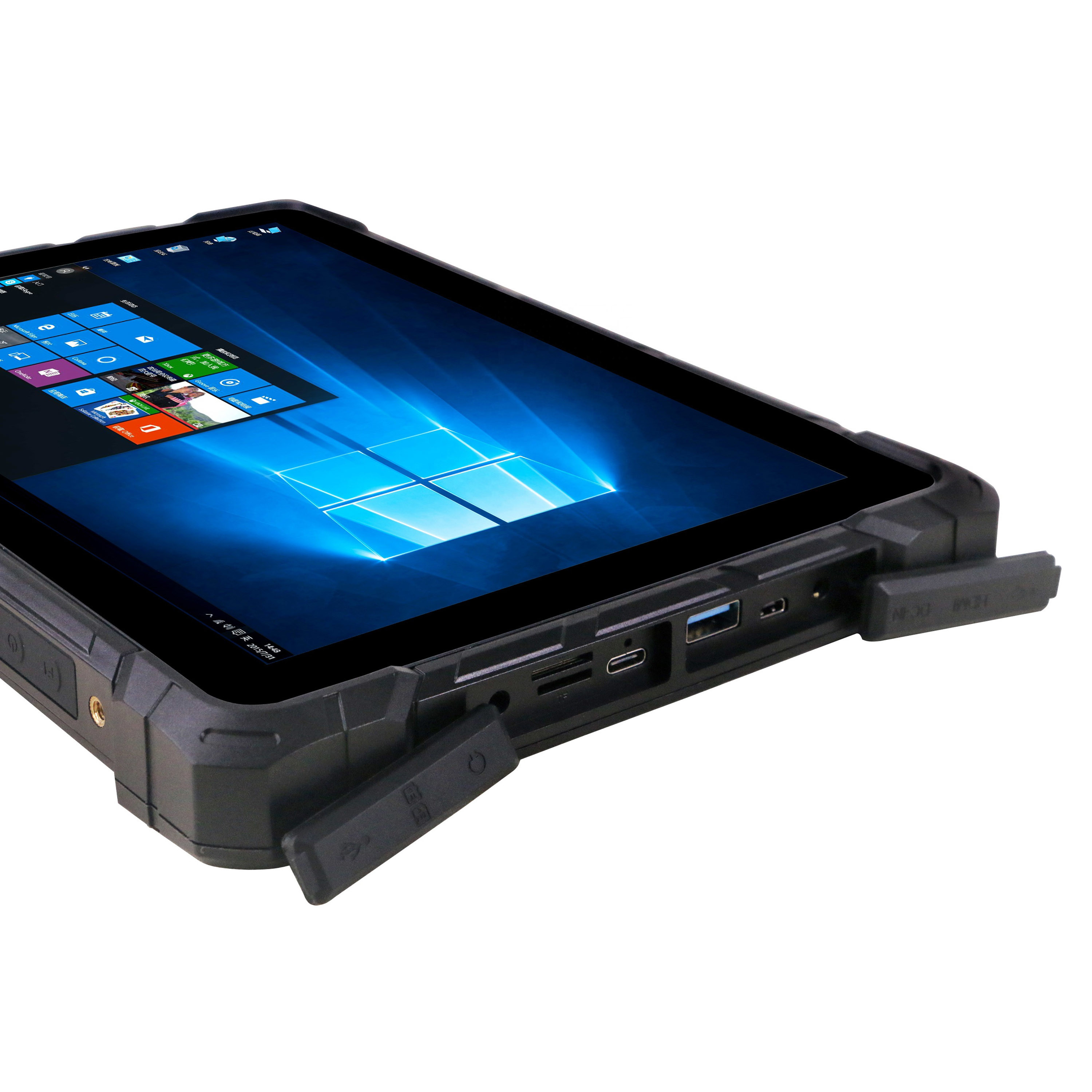

10.1 inch N4120 Windows 10 Industrial Rugged Tablets PC with RS232 COM Touch Screen Fingerprint 3
