| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-Z6622D-3337U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Core I5-3337U | RAM: | Support 1*SO-DIMM DDR3L 1333MHz,Max8GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | Support VGA / LVDS/ HDMI / Edp Display |
| COM: | 6*RS232 COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |

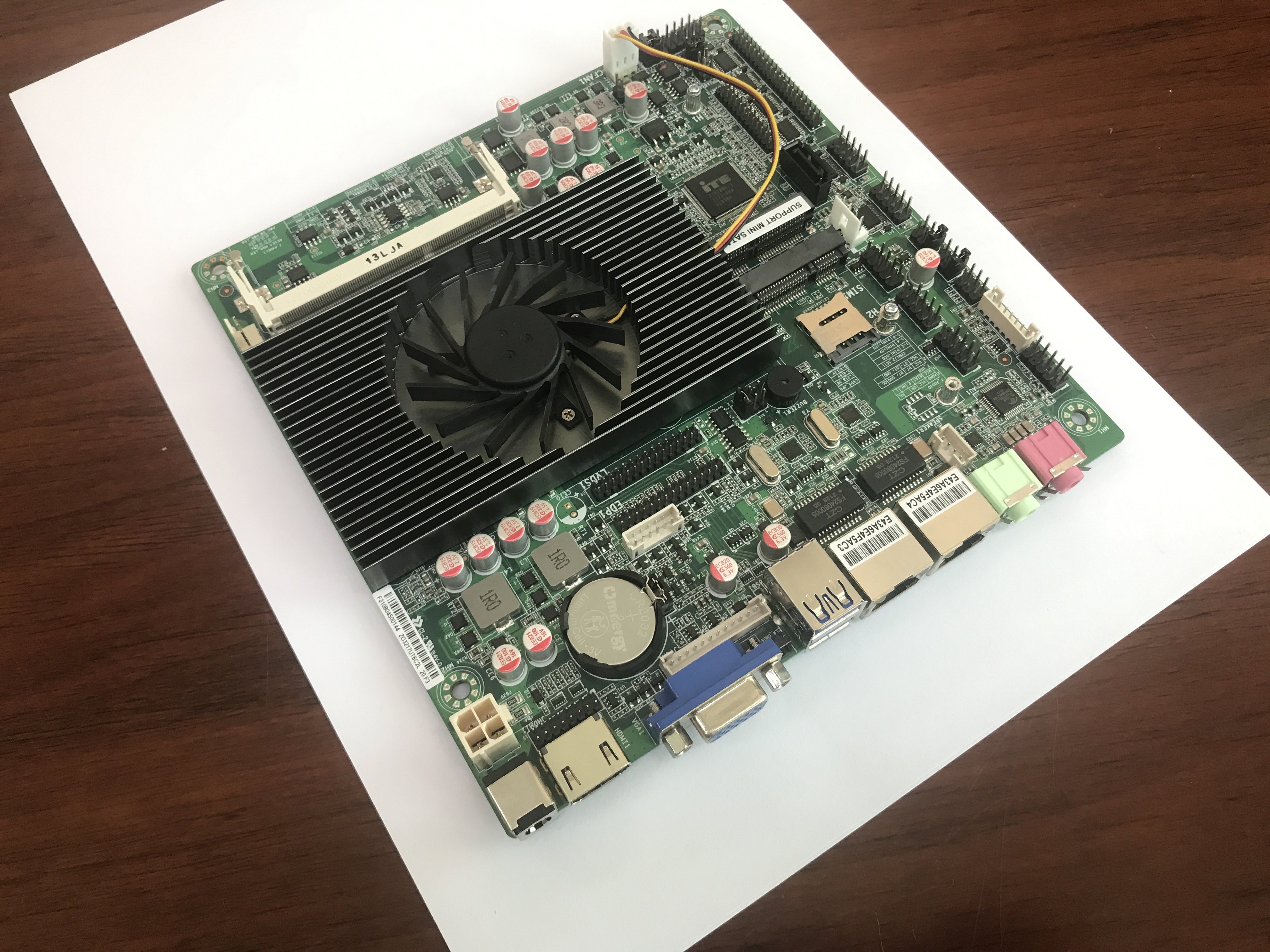

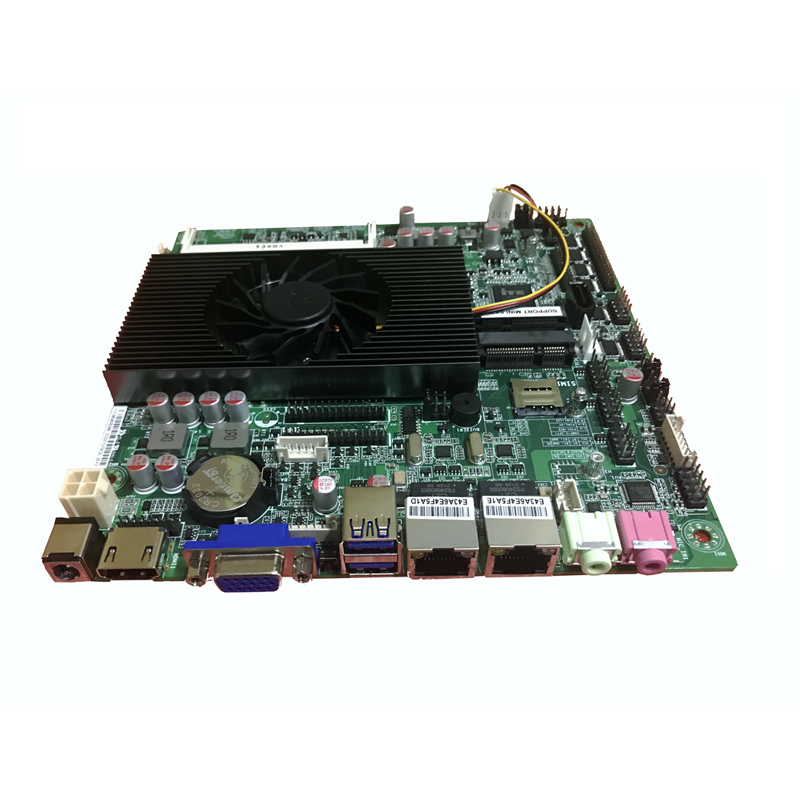

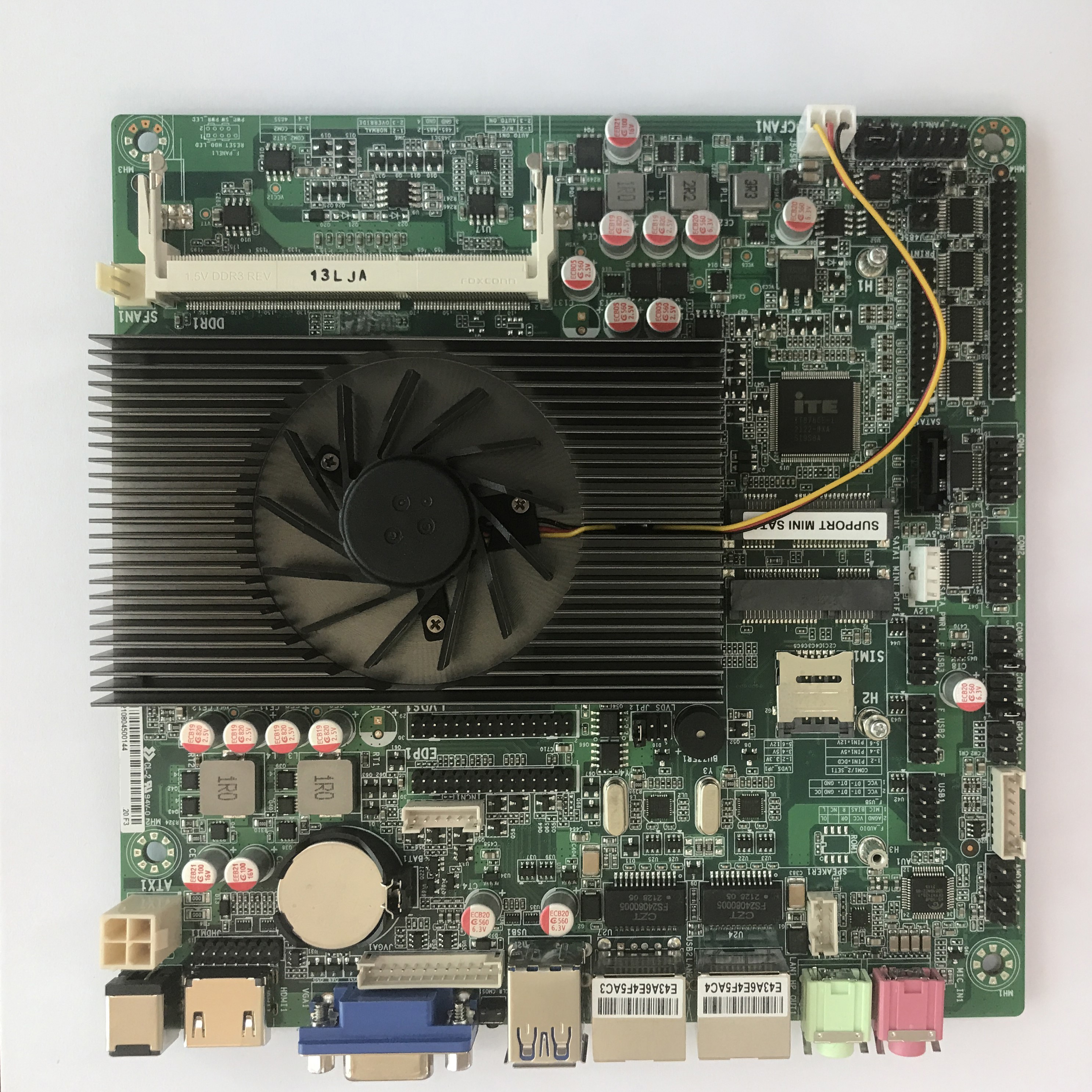

Industrial Itx Motherboard dual Core i5-3337U 6 COM 2 LAN industry mainboard
Key features
Integrated Intel Dual Core 4 threads i5 3337U 1.8Ghz processor
Integrated Intel HD Graphics
Support VGA / LVDS/ HDMI / Edp display
Support 1*SO-DIMM DDR3L 1333MHz,Max8GB
Onboard Realtek ALC662HD audio decoding controller
Support 1*SATA II, 1* Msata
1* Mini PCIe support WIFI+Bluetooth / 4G expansion module
6*USB2.0, 2*USB3.0
6*COM
1*VGA port
1*HDM port
2*RJ-45 LAN port
1*LPT pin
1*GPIO pin
1*PS/2 pin
DC power supply
Size: 170*170 mm ITX Motherboard
Specifications
| Model | ITX-Z6622D-3337U |
| Processor |
Integrated Intel Dual Core 4 threads i5 3337U 1.8Ghz processor Max Turbo Frequency 2.7Ghz |
| GPU | Intel HD Graphics 4000 |
| Display | Support VGA/LVDS /HDMI/eDP Display |
| Memory | Support 1*SO-DIMM DDR3L 1333MHz,Max8GB |
| Network | Onboard 2* Realtek RTL8106 Ethernet |
| Audio | Onboard Realtek ALC662HD, audio decoding controller |
| Storage |
1*SATA II 1*Mini Sata |
| USB | 6*USB2.0 , 2*USB3.0 |
| PCI-E | 1*MINI-PCIE support WIFI-Bluetooth / 4G |
| COM | 6*COM |

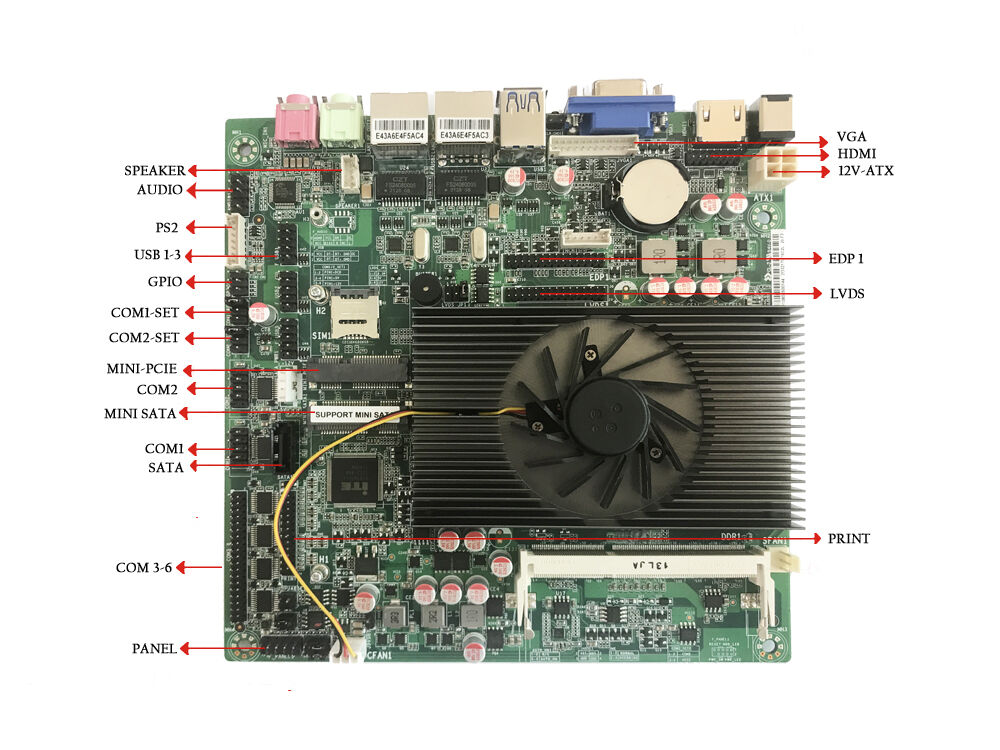

| Rear I/O |
2*USB3.0 port 1*VGA port 1*HDM port 1*DC 2*RJ-45 LAN port 1*MIC-IN 1*LINE-OUT |
|
Internal I/O |
1*LVDS 1*eDP 1*LPT pin 1*12pin VGA pin 1*HDM pin 6*COM 1*SIM 1*4PIN SPEAKER 1*6PIN INVERT 1*4pin ATX 1*F-PANEL pin 3*USB2.0 pin(support extension 6*USB2.0 port) 1*GPIO pin 1*PS/2 pin 1*AUTO-ON jumper cap 2* FAN pin |
| BIOS | AMI BIOS |
| Power Supply | DC-IN,built-in 4PIN DC power supply interface |
| Cooling System | Comes with CPU radiator and fan |
| Working Environment | Temperature: -15~60℃; 0% ~ 95% humidity, non condensing |
| Size | 170*170 mm ITX Motherboard |
