| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6642D-CMT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ 10th I3 I5 I7 | RAM: | 2*DDR4 SO-DIMM Ram Socket,Max Support 64GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS/EDP+VGA+HDMI Three-screen Synchronous Or Asynchronous Display |
| COM: | 6*COM (4*RS-232, 2*RS422/485) | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | Mini Itx Motherboard Industrial,Embedded Mini Itx Motherboard |
||

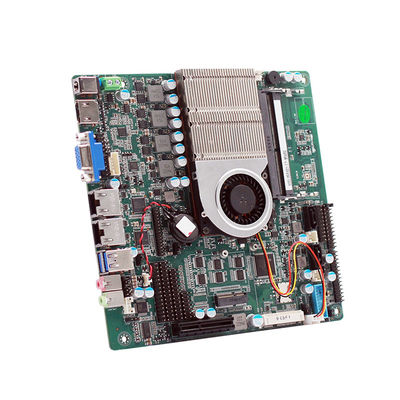

Comet Lake 10th i3 i5 i7 Processor industry embedded motherboard support touch screen 2LAN 6COM
Intel® Comet Lake 10th i3 i5 i7 Processor industry kiosk mainboard support 2*standard SATAIII sockets maximum transfer rate 6Gb/s, support touch screen 2*DDR4 sockets, 2LAN 6COM, it support 8-bit GPIO, providing routines, freely defined input/output, 3.3V@24mA level
it support 4096*2304@60Hz display (LVDS and EDP display optional), Aluminum fan cooling.
Key features
Integrated Intel® Comet Lake 10th i3 i5 i7 / Celeron 5205U processor
Support 2*DDR4 SO-DIMM Ram socket,Max support 64GB
Integrated Intel® UHD Graphics for 10th Gen Intel® Processors
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support LVDS/EDP+VGA+HDMI Three-screen synchronous or asynchronous display
4*RS-232, 2*RS422/485
2*Gigabit LAN
6*USB2.0
4*USB3.1
2* SATAIII interface
Onboard SSD 32 / 64 / 128G
1* M-SATA Scoket
Mini-itx 170 x 170 mm
Single input DC 12V power supply
Warranty 1 year
Specifications
| processor | CPU |
Intel® Core™10th Comet Lake-U Celeron,Core i3/i5/i7 Series processors
Please choose the following Model No. ITX-P6642D-CMT-I3 Integrated Intel® Core™ i3-10110U dual cores 4 threads 2.1~4.1Ghz processor ITX-P6642D-CMT-I5 Integrated Intel® Core™ i5-10210U quad cores 8 threads 1.6~4.2Ghz processor ITX-P6642D-CMT-I7 Integrated Intel® Core™ i7-10510U quad cores 8 threads 1.8~4.9Ghz processor ITX-P6642D-CMT-5205U Integrated Intel® Celeron® Processor 5205U dual cores 2 threads 1.9Ghz processor
|
| CPU package | BGA | |
| Chipset | Support Comet Lake-U Series processors | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Dual channel DDR4 2133/2400MHz |
| socket | 2*DDR4 SO-DIMM Ram socket,Max support 64GB | |
| Video | Graphics controller | Intel Ultra HD Graphics Graphics suitable for the 10th generation of Intel Core processing(I3-10110U graphics card); the graphics card model is related to the CPU |
| Dual LVDS and EDP | LVDS support dual channel 24 bit output,max resolution support 1920 x 1200 EDP max resolution support4096*2304@60Hz(LVDS and EDP display optional) | |
| VGA | VGA max resolution support 2048x1536 | |
| HDMI | HDMI max resolution support 4096*2304@30Hz | |
| Dual display | LVDS/EDP+VGA,LVDS/EDP+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| Three display | LVDS/EDP+VGA+HDMI Synchronous or asynchronous display | |
| I/O backpanel | Ports |
1*DC 1*VGA 1*HDMI 2*LAN 2*USB3.1 1*LINE OUT 1*MIC |
| Internet | Controller | 2*intel I211 or I210 lan card(When the I/O interface is 4 USB, there is only one Intel I211AT or I210 network card) |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | Controller | IT8786E |
| Hardware controller | Watch-dog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum fan heater (supports automatic and manual fan speed adjustment) | |
| Output/input Ports | USB |
4*USB3.1(USB3.1 GEN2 Backward compatible ),When using Celeron Pentium processor,Only 2 USB3.1, USB can only reach GEN1
6*USB2.0
|
| Serial port | 4*RS-232, 2*RS422/485(Can choose 6*RS232 or 5*RS232 and 1*RS422/RS485),RS485supports automatic flow control | |
| PS/2 | 1*PS/2 pin header (support PS/2 Keyboard mouse) | |
| Touch panel | Support touch screen(4wire 5wire 8wire ,When the touch screen is available,USB89 pin header only can use one) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe socket,support PCIe and USB device(only modules supporting USB protocol when USB89 pin header is available) |
| storage | SATA | 2*standard SATAIII port, maximum transfer rate 6Gb/s(SATA1 and MSATA pick one of two,SATA2and onboard SSD pick one of two) |
| M-SATA | 1*M-SATA Scoket,support SANDISK protocol, maximum transfer rate 6gb/s(with SATA1 pick one of two) | |
| Onboard SSD | Onboard SSD 32G/64G/128G(Onboard SSD and SATA2 pick one of two) | |
| Power supply | Power supply | Single input DC power supply,DC12V 7A,+/-5% |
| WORKING ENVIRONMET | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| System | OS | Windows10 Linux |
| Size | Size | 170 x 170 mm |
| Weight | 0.5KG |
