| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-2821D-5145M |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | AMD A6-5357M CPU | RAM: | 2× SODIMM DDR3 Slots Up To 16GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | 1× VGA Port, 2× HDMI Ports, 1× LVDS Port |
| COM: | 2*RS232 COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |
Key features
Description
| Model NO. | ITX-2821D-A70 |
| Processor |
Integrated AMD A4-5145M@2.0G dual-core 2-thread processor, TDP 17W Compatible with APU A10/A8/A6/A4(FP2 encapsulation) Dual-core, quad-core processor |
| Chipset | A70(218-0755097) High speed chipset |
| Memory | 2x SODIMM memory slot, dual channels DDR3 1333MHz memory, is up to 16GB |
| Display |
Integrated AMD Radeon HD 8000 series 1x VGA, 2x HDMI,1x LVDS,Support dual channel 24BIT |
| Ethernet | 1x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function |
| Storage |
1x SATA3.0, the transfer rate is up to 6Gbps 1x MSATA slot, supports Intel protocol SSD, the transfer rate is up to 6Gbps |
| Audio |
Onboard ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out,power amplifier Suggest power amplifier use 2Ω5W horn |
| Expansion Slot | 1x Mini-PCIE slot, supports WIFI,3G/4G module |
| Rear I/O interface |

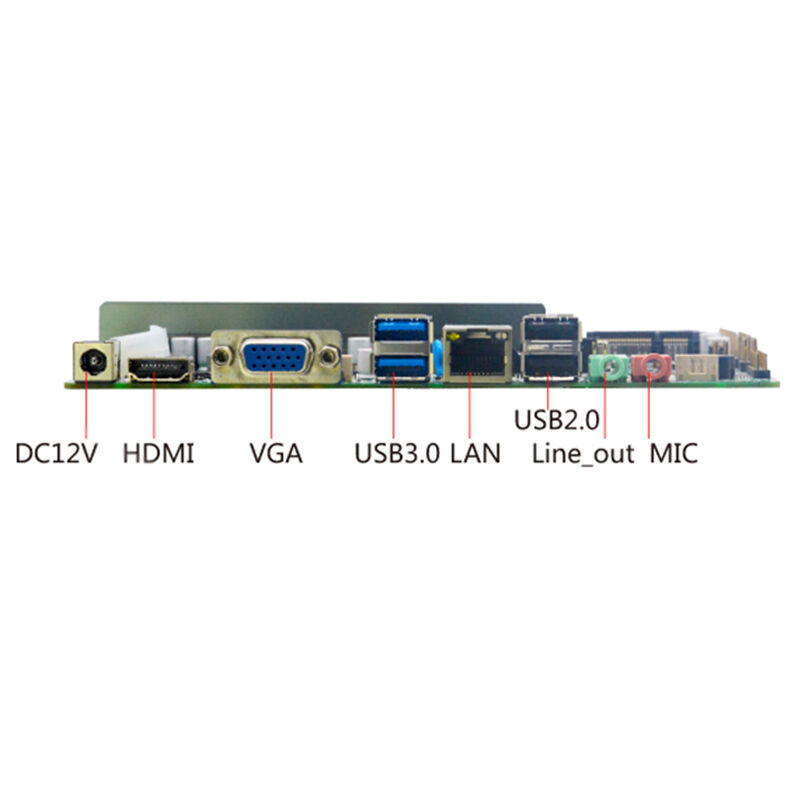

2x USB 2.0 2x USB 3.0 1x HDMI 1x VGA 1x RJ45 Gigabit Network Interface 1x Line out(Green) 1x MIC(Red) 1x DC 12V power input interface |
| Built in I/O Interface |

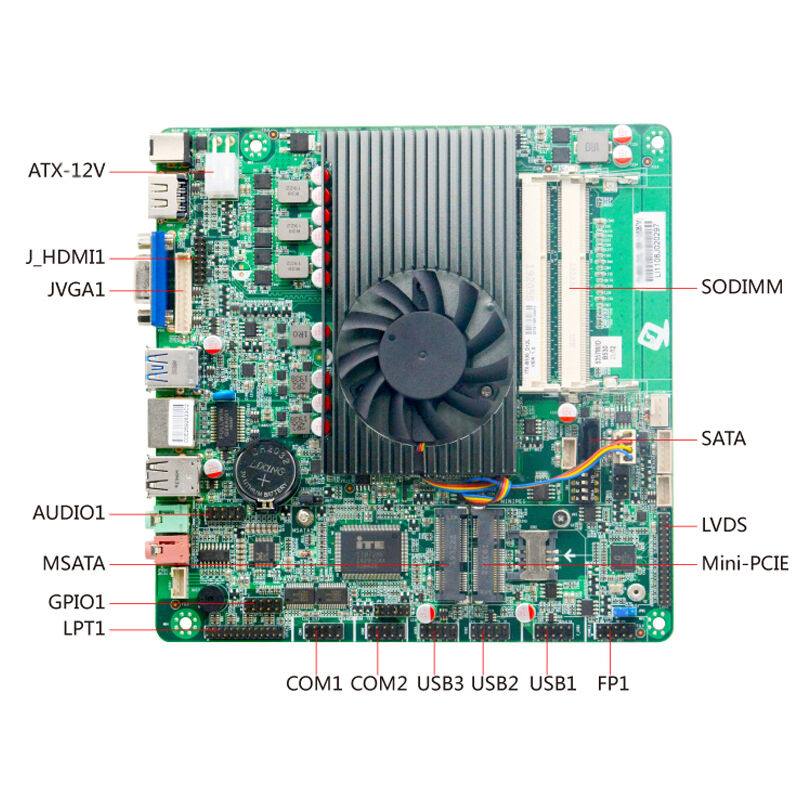

1x IVGA, 1x 12pin (Same signal as DB15) 1x IHDMI, 2x 8Pin 6x USB 2.0, 2x 5pin 2x RS232 COM, supports the 9th pin charged function 1x LPT, 2x 13pin 1x Front audio interface, 2x 5pin |
| GPIO |
1x Power amplifier interface, 1x 4pin 1x Front panel function button and indicator light interface, 2x 5pin 1x SIM card slot 1x 4pin ATX power interface (Can be used as 12V input and output power interface) 1x Hard disk power supply interface, 1x 4pin Support 4-way input output GPIO function |
| Fan Connector | 1x 4pin CPU smart fan connector, 1x 4Pin system smart fan connector |
| BIOS | 32Mb Flash ROM |
| Watchdog | Support hardware reset function (L256, 0~255 seconds) |
| Power Type | DC 12V single power supply |
| Working temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ |
| Working Humidity | 5%-95%( relative humidity, non-condensing) |

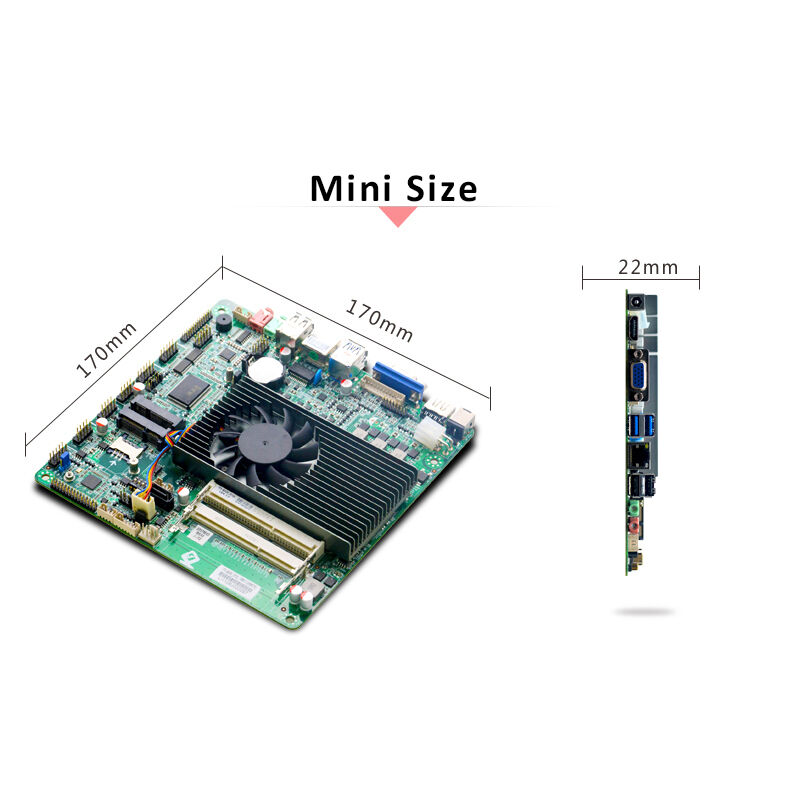

| Dimension | 170mm x 170mm |
