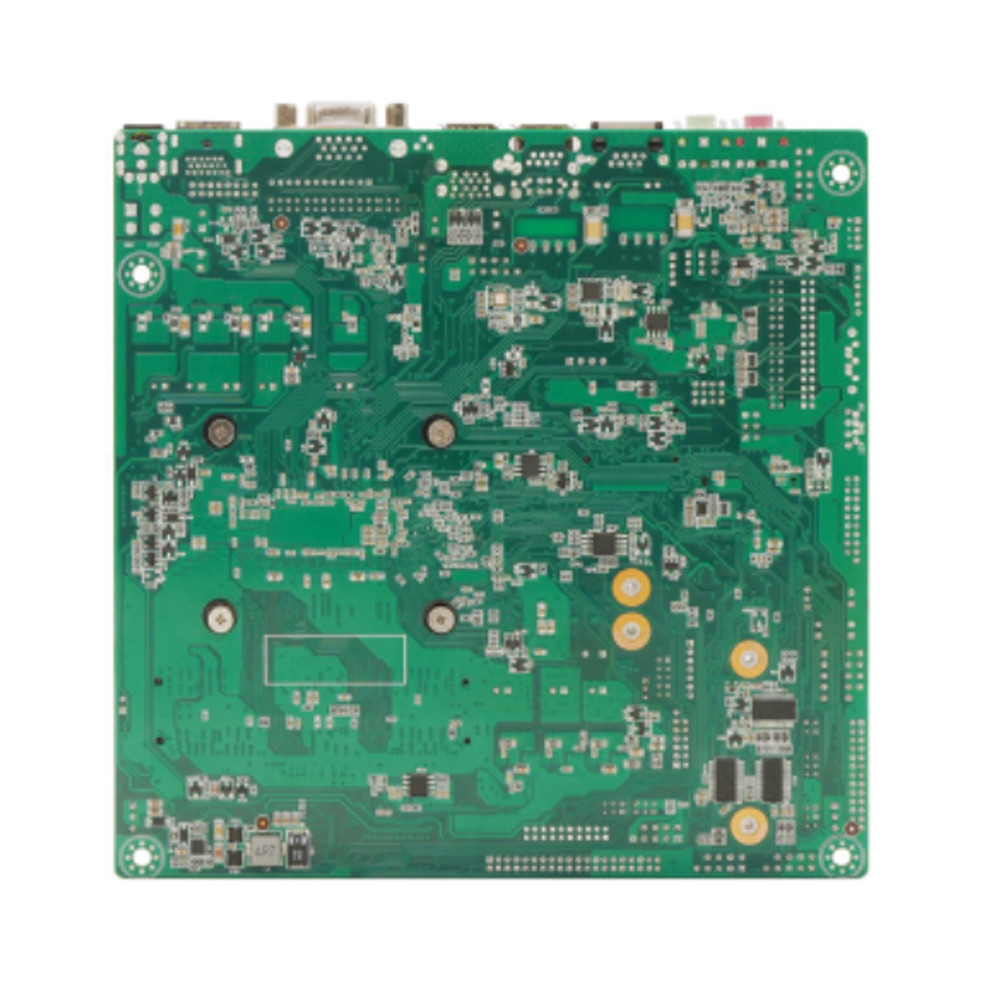

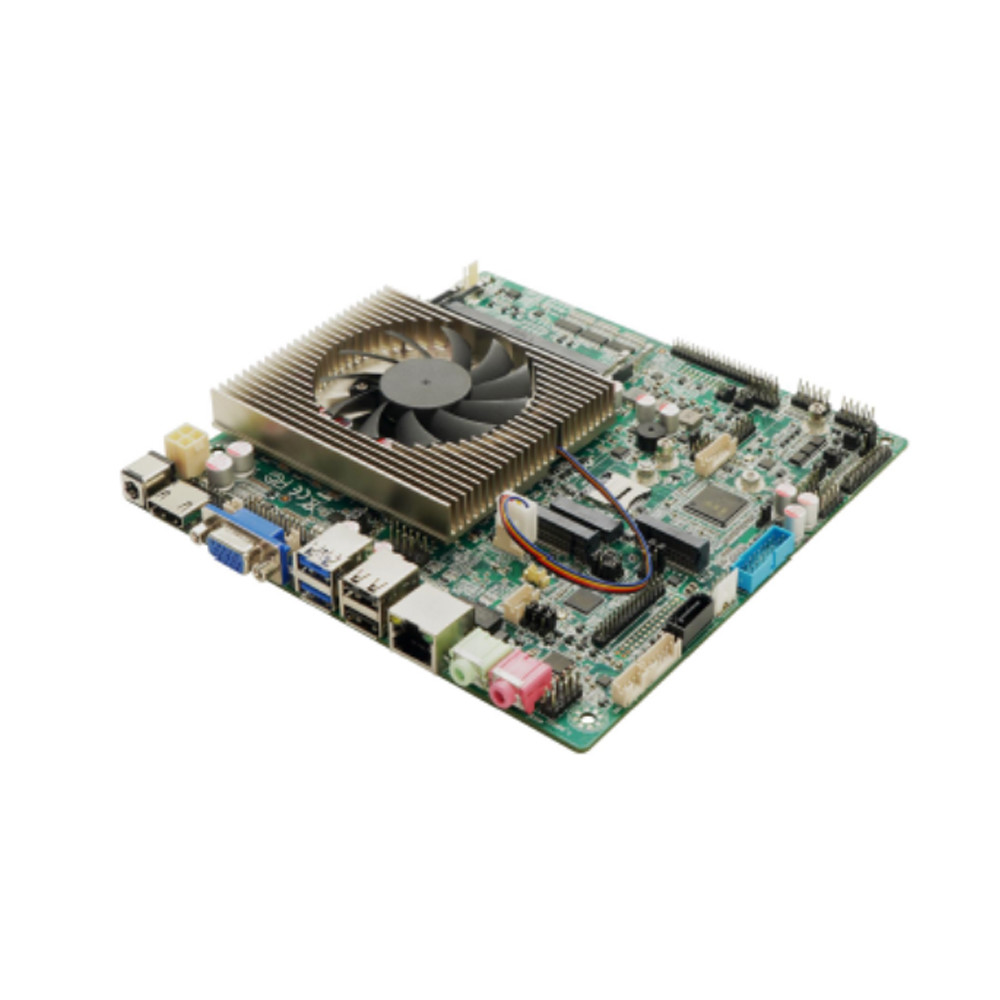

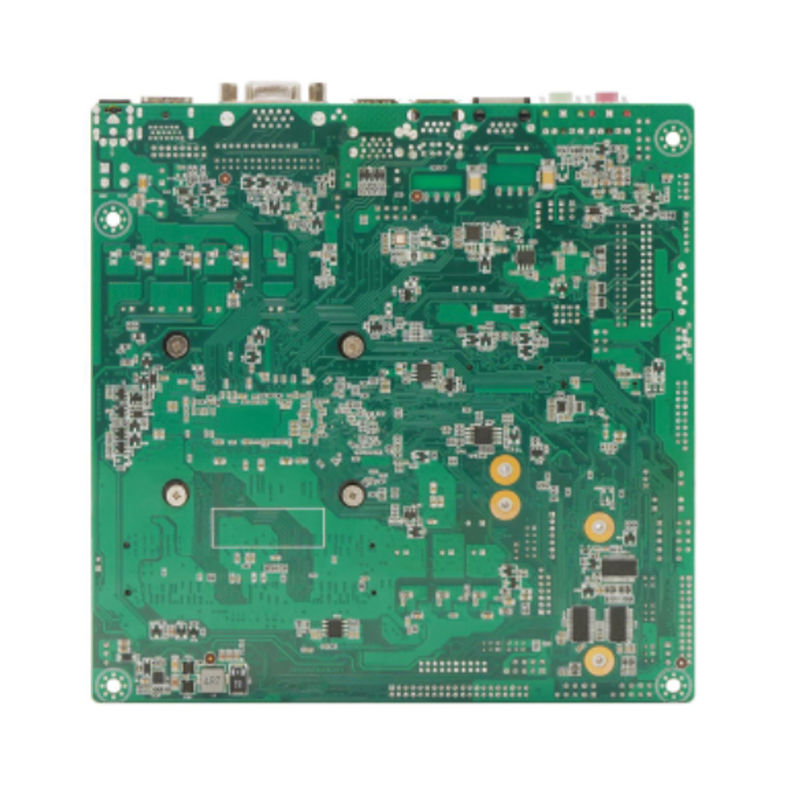

| CPU: | Support Intel®Tiger Lake-UP3 Processor (1135G7/1145G7, Etc.) | RAM: | DDR4 3200MHz, Max64GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN (Dual LAN For Choose) | Display: | LVDS1/EDP1+EDP2+HDMI+VGA Output |
| COM: | 6*COM | Size: | 170 X 170 Mm |
| Power: | DC 12~19V Power Supply |
Key features
--- Support Intel®Tiger Lake-UP3 Processor (1135G7/1145G7, etc.)
--- Support dual-channel SO-DIMM, DDR4 3200MHz, Max64GB
--- Support LVDS1/EDP1+EDP2+HDMI+VGA output, four
displays synchronously and asynchronously
--- Onboard 1*Realtek RTL8111H/8111G Gigabit network card
(optional dual network)
--- Support 2*USB3.2 Gen2 (10Gbps), 2*USB3.2 Gen1 (5Gbps)
--- 7*USB2.0
--- 6*COM (supports COM2/3 two-way RS485)
--- 1*M.2 M Key supports PCIEX2/SATA adaptive; 1*SATAⅢ(6.0
Gb/s)
--- 1*M.2 E Key, supports Wifi6/Bluetooth module expansion;
--- 1*M.2 B Key, supports 4G/5G module expansion (optional);
--- 1*SIM card slot
--- DC 12~19V power supply (12V requires a 7A or above adapter)
--- Size: 170*170 mm ITX Motherboard
Specifications
| CPU |
Intel® Tiger Lake-UP3 Processor ( i3-1125G4 / i5-1135G7 / i5-1145G7 / i7-1165G7 / i7-1195G7 / i7-11390H ) |
| Chipset | Intel® SOC |
| Display Chip | Intel® Iris® Xe Graphics |
| Display Output | LVDS1/EDP1 + EDP2 + HDMI + VGA |
| Multi-Display | Supports asynchronous display across four screens |
| USB Ports | 2 × USB 3.2 Gen2 (10Gbps) 2 × USB 3.2 Gen1 (5Gbps) 7 × USB 2.0 |
| Memory | 2 × SO-DIMM slots, DDR4 3200MHz, supports up to 32GB |
| Sound Effects | Onboard ALC897 audio decoding controller Independent power amplifier NS4251 (3W @ 4Ω MAX) |
| Network Card | Onboard 1 × Realtek RTL8111H/8111G Gigabit Ethernet (dual network optional) |
| Storage | 2 × M.2 M Key, supports PCIe x2/SATA adaptive 1 × SATA III (6.0 Gb/s) |
| Expansion Slots | 1 × M.2 E Key, supports Wi-Fi 6/Bluetooth module expansion 1 × M.2 B Key, supports 4G/5G module expansion 1 × SIM card slot |
| COM Ports | IT8786E-I controller |

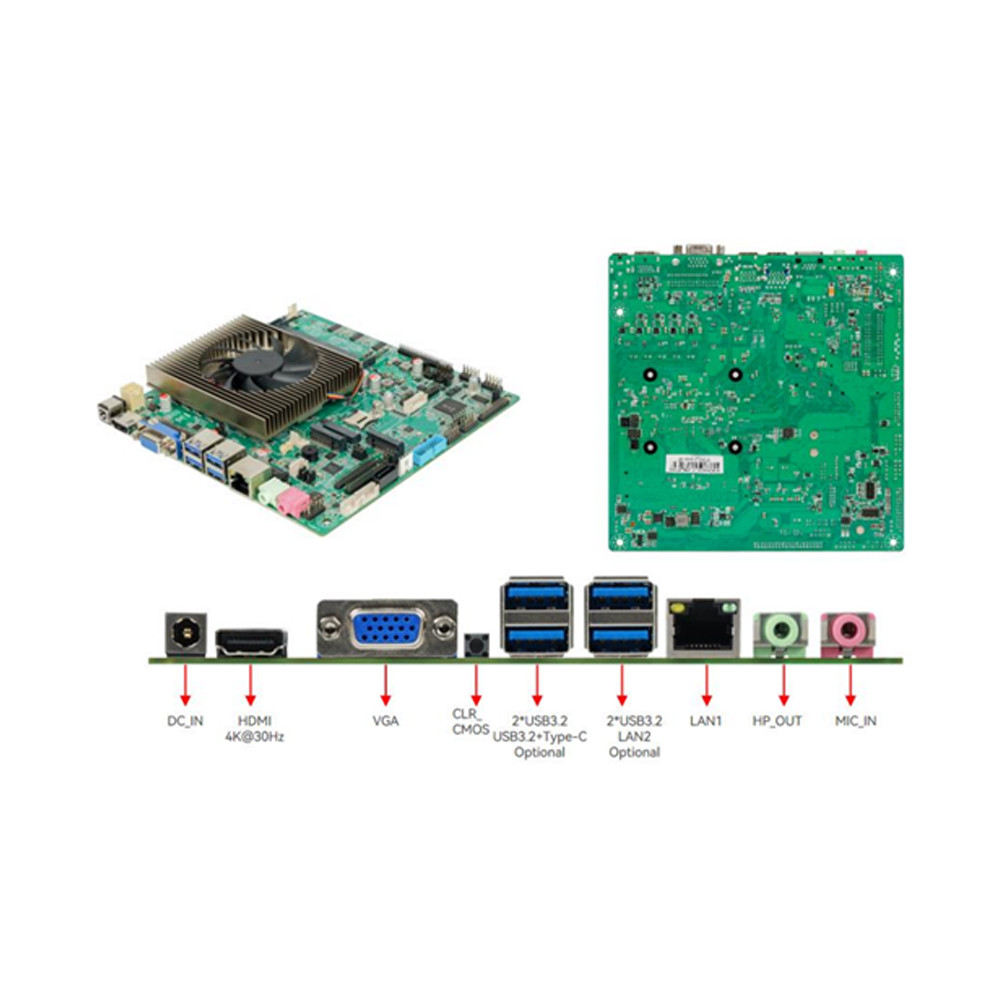

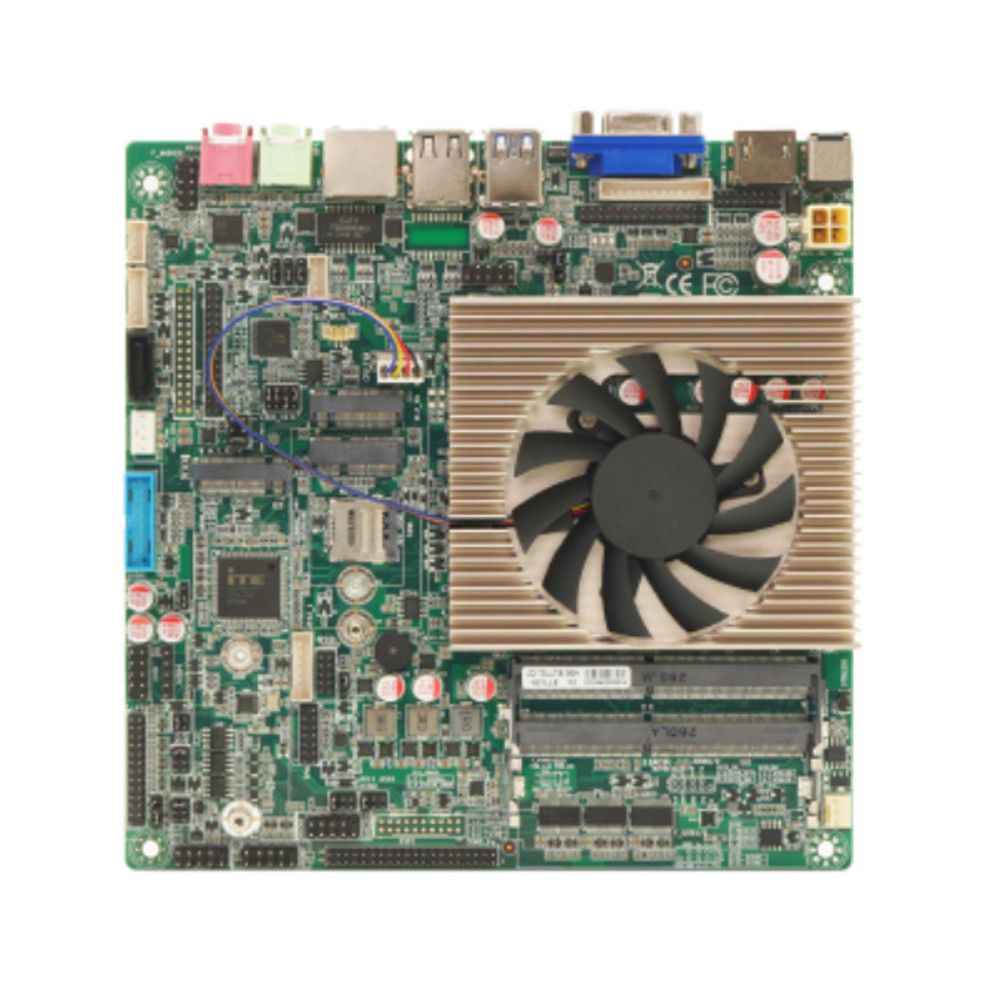

| Rear I/O interface | 1*DC_IN |
| 1*HDMI | |
| 1*VGA | |
| 1*CLR_CMOS button | |
| 2*USB3.2 Gen2(10Gbps) | |
| 2*USB3.2 Gen2 ( 1Lan/Type C optional) | |
| 1*LAN1 | |
| 1*F_OUT | |
| 1*F_MIC | |
|
Internal I / O connector |
1*F_AUDIO pin,1*Speaker pin |
| 1*INVERT pin | |
| 2*EDP pins,1*LVDS pin | |
| 1*BKCL pin | |
| 1*SATA pin,1*SATA_PWR pin | |
| 1*F_USB1 (expandable 2*USB3.2 Gen1) | |
| 3*F_USB2.0 (can be expanded to 5*USB2.0) | |
| 1*LPT pin | |
| 1*JPS2 pin | |
| 1*GPIO pin | |
| 1*TPM pin | |
| 1*F_PANEL pin | |
| 6*COM pins | |
| 1CFAN pin,1SFAN pin | |
| 1JHDMI pin,1JVGA pin | |
| 1*ATX_IN socket | |
| BIOS | AMI BIOS |
| Power Supply | DC 4PIN ATX 12~19V power input |
| Cooling System | Includes a new CPU radiator |
| Working Environment | Temperature: -15~60℃; 0% ~ 95% humidity, non condensing |
| Size | 170*170 mm ITX Motherboard |
Support processors model:
ITX-Z6741D-11-I3 ( i3-1125G4 6*COM,1*LVDS,1*EDP PIN,1*LAN )
ITX-Z6741D-11-I5 ( i5-1135G7 6*COM,1*LVDS,1*EDP PIN,1*LAN )
ITX-Z6741D-11-I5 ( i5-1145G7 6*COM,1*LVDS,1*EDP PIN,1*LAN )
ITX-Z6741D-11-I7 ( i7-1165G7 6*COM,1*LVDS,1*EDP PIN,1*LAN )
ITX-Z6741D-11-I7 ( i7-1195G7 6*COM,1*LVDS,1*EDP PIN,1*LAN )
ITX-Z6741D-11-I7 ( i7-11390H, 6*COM,1*LVDS,1*EDP PIN,1*LAN )
