| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-Z6802D-3TH-I3 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Intel Core I3 3217U Dual-core 1.8GHZ | RAM: | Support 1*SO-DIMM DDR3L 1333MHz,Max8GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | Support VGA+LVDS+H-D-M-I Display |
| COM: | 6*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |
Key features
Integrated Intel Core i3 3217U Dual-core 1.8GHZ
Integrated Intel HD Graphics
Support VGA+LVDS+HDMI display
Support 1*SO-DIMM DDR3L 1333MHz,Max8GB
Onboard Realtek ALC662HD audio decoding controller
2*SATA II
8*USB2.0
6*COM
1*VGA port
1*HDM port
2*RJ-45 LAN port
1*LPT pin
1*GPIO pin
1*PS/2 pin
Size: 170*170 mm ITX Motherboard
Specifications
| Model | ITX-Z6802D-3217U |
| Processor | Integrated Intel Core i3 3217U Dual-core 1.8GHZ |
| GPU | Intel HD Graphics |
| Chipset | HM65 |
| Display | Support VGA, LVDS , HDMI Display |
| Memory | Support 1*SO-DIMM DDR3L 1333MHz,Max8GB |
| Network | Onboard 2* Realtek RTL8111F Gigabit Ethernet |
| Audio | Onboard Realtek ALC662HD, audio decoding controller |
| Storage | 2*SATA II |
| USB | 8*USB2.0 |
| PCI-E | 2*MINI-PCIE(for M-SATA/WIFI) 1*SIM |
| COM | 6*COM |

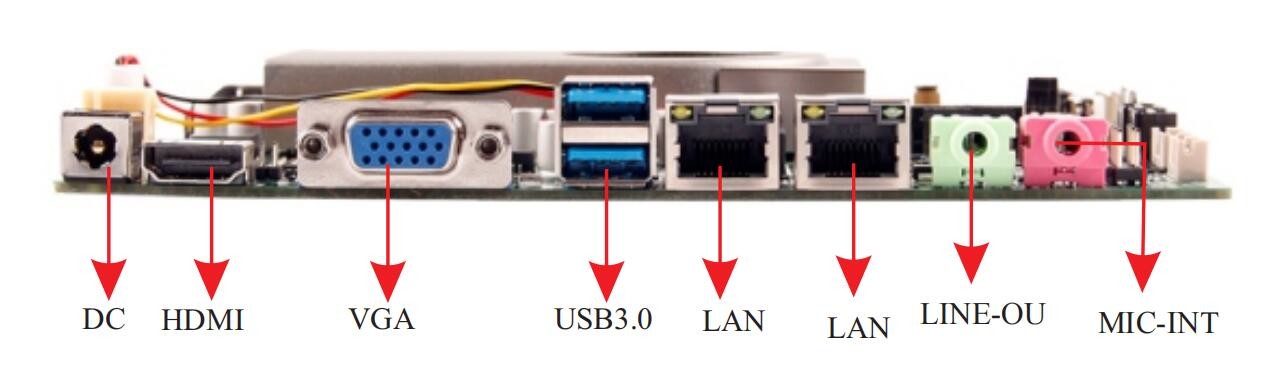

| Rear I/O |
2*USB2.0 port 1*VGA port 1*HDM port 1*DC 2*RJ-45 LAN port 1*MIC-IN 1*LINE-OUT |
|

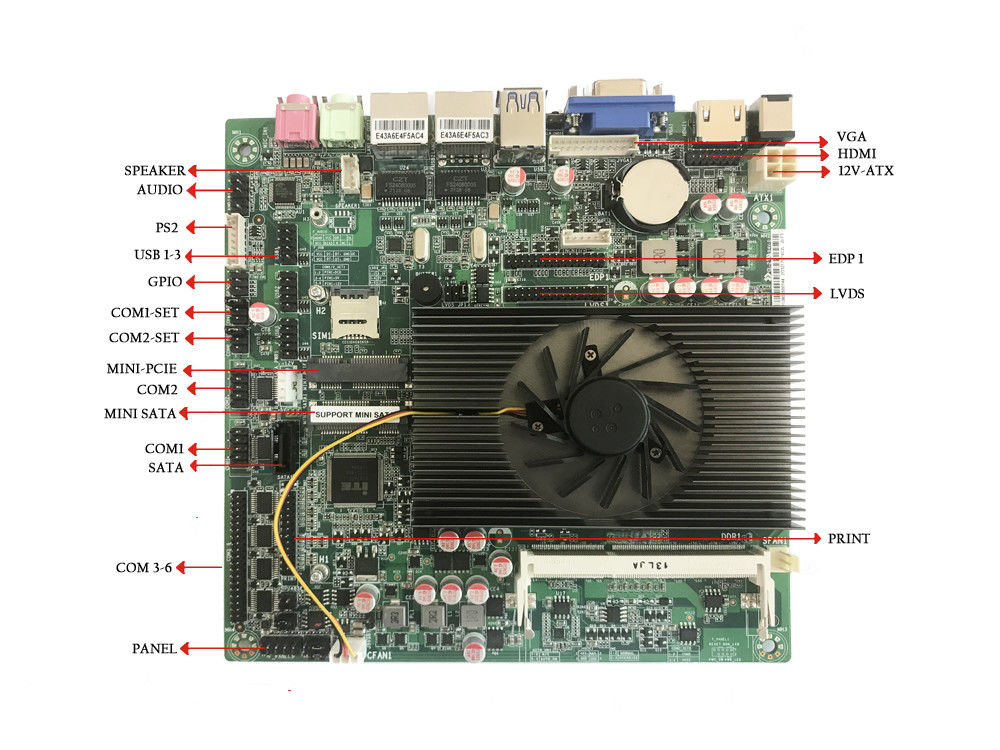

Internal I/O |
1*30PIN LVDS 1*LPT pin 1*12pin VGA pin 1*HDM pin 6*COM 1*4PIN SPEAKER 1*6PIN INVERT 1*4pin ATX 1*F-PANEL pin 3*USB2.0 pin(support extension 6*USB2.0 port) 1*SPDIF 1*GPIO pin 1*PS/2 pin 1*CLR_CMOS jumper cap 1*AUTO-ON jumper cap 2*SATA-PWR pin 2*CPU-FAN pin |
| BIOS | AMI BIOS |
| Power Supply | DC-IN,built-in 4PIN DC power supply interface |
| Cooling System | Comes with CPU radiator and fan |
| Working Environment | Temperature: -15~60℃; 0% ~ 95% humidity, non condensing |
| Size | 170*170 mm ITX Motherboard |
