| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6512DW-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Celeron J1900 Quad Cores 4 Threads 2.0Ghz Processor | RAM: | Onboard 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*COM (5*RS232 COM, 1*RS-485/RS-422) | Size: | 170 X 170 Mm |
| Power: | Wide Voltage 8-36V Power Supply | ||
| Highlight: | J1900 Small Itx Motherboard,Dual NIC Small Itx Motherboard,Industrial Pc Motherboard 6Com |
||
Celeron® J1900 cores mini itx industrial pc motherboard 6 com dual NIC Onboard RAM SSD 8-36V power
Notice :
When you inquiry , you can choose one of the following Model No.
ITX-P6512DW-BT-J1800
ITX-P6512DW-BT-J1900
ITX-P6512DW-BT-N2806
ITX-P6512DW-BT-N2900
ITX-P6512DW-BT-E3825
ITX-P6512DW-BT-E3826
ITX-P6512DW-BT-E3845
Celeron® J1900 quad cores mini itx industrial pc motherboard 6 com 2 lan supports touch screen Wide voltage 8-36V power supply
Key features
Intel®4thAtomBaytrail-D/I/M N2806 /J1800/N2900/J1900/E3825/E3826/E3845 processor
Onboard 2GB/4GB RAM
Integrated Intel HD Graphics
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support 2*SATA2.0
Support 1* M-SATA Scoket
Onboard EMMC 32GB/64GB/128GB (Optional)
6*COM (5*RS232 COM, 1*RS-485/RS-422 )
1*USB3.0 , 5*USB2.0
2*Gigabit LAN
Support for touch screen (4wire 5wire 8wire)
Wide voltage 8-36V power supply
Dimension: 170mm X 170mm
Specifications
| Processor | CPU | Integrated Intel®4thAtomBaytrail-D/I/M N2806 /J1800/N2900/J1900/E3825/E3826/E3845 processor |
| Burst Frequency 2.42Ghz | ||
| chipset | Support Baytrail-I/D/M serial Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology architecture | Single channel DDR3 1066/1333MHz |
| Onboard 2GB/4GB RAM | ||
| Can add 1*DDR3 SODIMM 240 Socket | ||
| Display | Graphic controller | Integrated Intel HD Graphics |
| Dual LVDS and EDP | LVDS support dual channel 24bits output,Max resolution1920 x 1200 | |
| EDP max support resolution 2560*1600 (LVDS and EDP display for optional) | ||
| VGA | VGA max support resolution 2048x1536 | |
| HDMI | HDMI max support resolution 1920x1200 | |
| Dual display support | LVDS+VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display | |

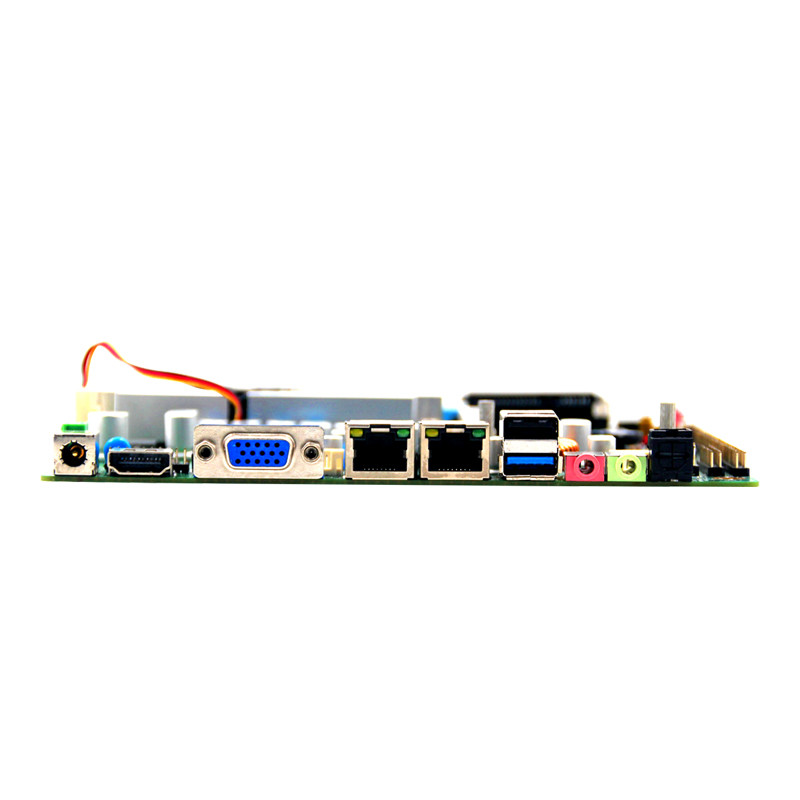

| I/O back panel | Port | 1*DC |
| 1*VGA | ||
| 1*HDMI | ||
| 2*LAN | ||
| 1*USB2.0, 1*USB3.0 | ||
| 1*LINE OUT | ||
| 1*MIC | ||
| 1*Digital audio interface | ||
| Internet | controller | 2*RTL8111E-V Gigabit Lan Port,RJ45 Port |
| Audio | controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | NCT6106D |
| hardware controller | watchdog timer | 0-255 Seconds,Provide a watchdog routine |
| Cooler | Aluminum fan heatsink(fanless optional) | |
| USB | 5*USB2.0, 1*USB3.0 Max support +5V/1A(When the touch screen is available, only one set of USB57 pins can be use and USB2.0 is 4) | |
| Input/output interface | Com | 5*RS-232, 1*RS422/485(can be choose 6*RS232) RS485Support automatic flow control |
| PS/2 | 1*PS/2 pin connector (supports PS/2 keyboard and mouse) | |
| Touch screen | Support for touch screen (4wire 5wire 8wire only one set of USB57 pins is available when the touch screen is available) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion wire | Mini-PCle | 2*Mini-PCIe socket,support PCIe and USB equipment |
| storage | SATA | 2*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1* M-SATA Scoket,Support SANDISK Protocol,Maximum transfer rate 3Gb/s | |
| EMMC | onboard 32GB/64GB/128GB (Optional) | |
| Power Supply | Power Type | Wide voltage 8-36V power supply |
| Power consumption | 20W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG |
Applications:
Bank ATM mainboard
Kiosk motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
Industrial production control
Industrial manufacture
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
