| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-PT662-B250 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | LGA1151 Interface Intel® 6th And 7th I3-i5-i7/Pentium/Celeron | Memory: | Dual Channel DDR4 2133/2400MHz |
|---|---|---|---|
| Network: | 2*Intel® I211AT Gigabit Ethernet | Display: | DP / HDMI / VGA Three Screen Synchronous Or Asynchronous Display |
| COM: | 10*COM (9*RS-232, 1*RS422/485) | Form Factor: | Mini ITX 170 X 170 Mm |
| Power: | ATX Power Supply | ||
| Highlight: | B250 Industrial Itx Motherboard,DDR4 Industrial Itx Motherboard |
||

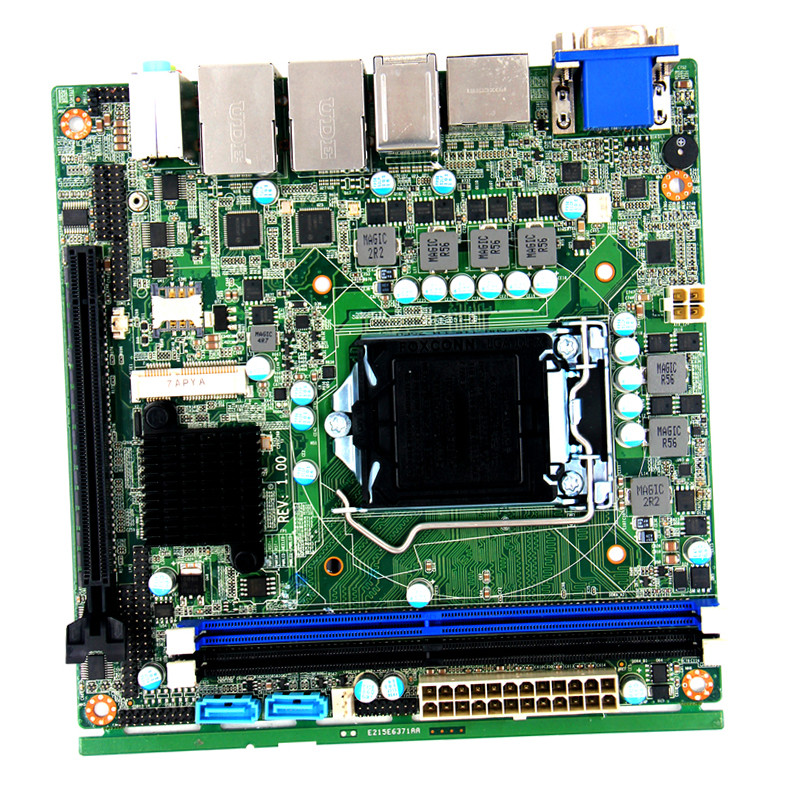

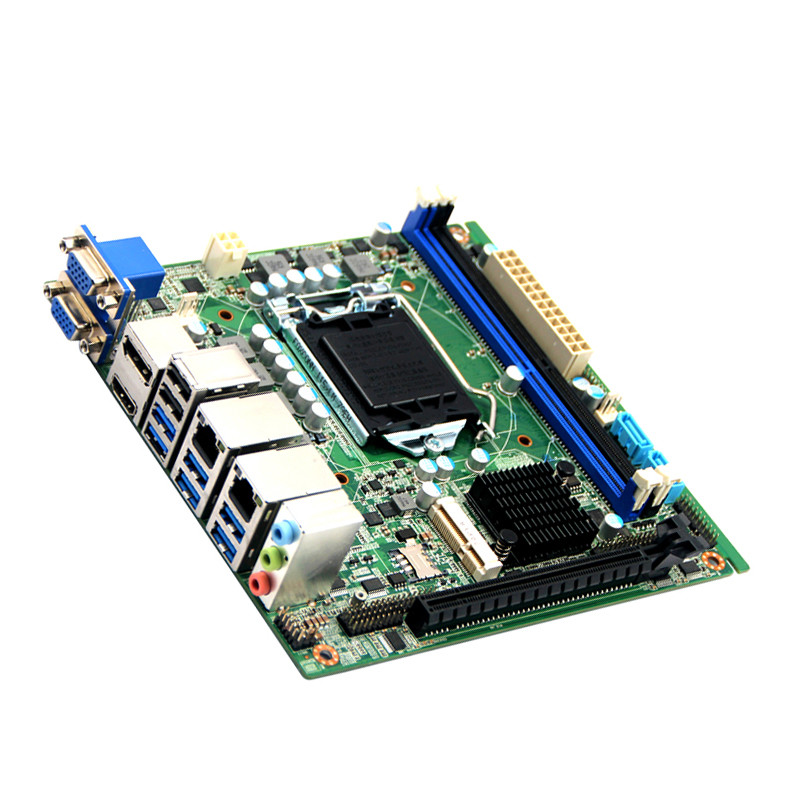

LGA 1151 Intel® B250 Chipset tablet pc motherboard support Dual channel DDR4 2133/2400MHz 10 serial ports 2 LAN DP display
Key features
Supports LGA1151 interface Intel® 6th and 7th i3-i5-i7/Pentium/Celeron CPU
Intel® B250 high-peed chipset
Support Dual channel DDR4 2133/2400MHz
Integrated Intel® HD Graphics
Support DP / HDMI / VGA three screen synchronous or asynchronous display
9*RS-232, 1*RS422/485
2*Gigabit LAN
6*USB2.0
6*USB3.0
2*SATAIII interface
Support touch panel 4wire 5wire 8wire(optional)
Mini-itx 170 x 170 mm
ATX Power supply
Specifications
| chipset | CPU | Supports LGA1151 interface Intel®6th and 7th i3-i5-i7/Pentium/Celeron CPU |
| CPU package | LGA1151 | |
| chipset | H110/H170/ B250 high -peed chipset | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Dual channel DDR4 2133/2400MHz |
| socket | 2*DDR4 ram socket | |
| Video | Graphics Controller | Intel® HD Graphics 610 (G4560 graphics card); graphics card type is related to CPU |
| VGA | VGA support max resolution 2048x1536 | |
| HDMI | Maximum resolution support (HDMI1.4) 4096*2304 Support 4K display | |
| DP | Max support resolution:4096*2304 | |
| Triple display | Support VGA + HDMI + DP three screen synchronous or asynchronous display | |

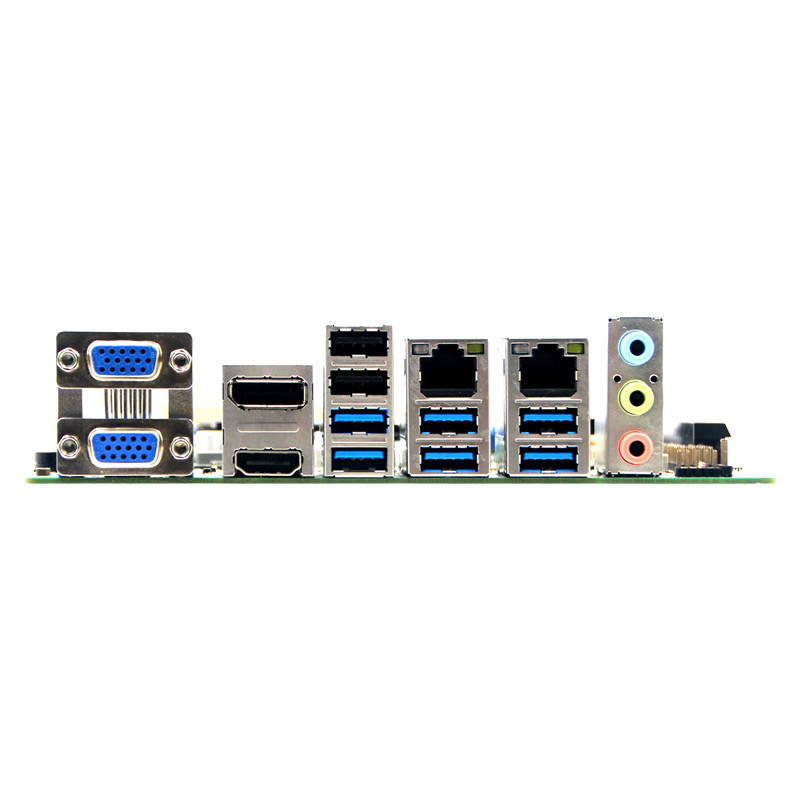

| I/O back panel | Interface | 1*DP,1*HDMI,2*VGA 2*LAN,6*USB3.0 2*USB2.0(when the chipset is H110,only with 4*USB3.0) 1*MIC-OUT/LINE-OUT/LINE IN |
| Internet | controller | 2*Intel® I211AT Gigabit Ethernet |
| Audio | controller | Realtek HD ALC662 Audio Decoder (LINE-OUT+MIC_IN+LINE-IN) |
| Super I/O | controller | NCT6106D |
| Hardware control | Watchdog timer | 0-255Seconds, providing watchdog routines |
| Input/output interface | USB |
6*USB3.0 compatible USB2.0 / 1.1 6*USB2.0 MAX Support+5V/1.5(when the chipset is H110,it with 4*USB3.0,4*USB2.0) |
| Com | 9*RS-232, 1*RS232/422/485 optional RS485Supports automatic flow control | |
| PS/2 | 1*PS/2 pin interface | |
| Expansion Bus | Mini-PCle | 1*Mini-PCIeSlots,support PCIe and USB devices |
| Storage | SATA | 2*standard SATAIIIInterface, maximum transmission rate 6Gb/s |
| Power supply | Power type | ATX Power supply |
| Power consumption | 80W | |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%Relative humidity, no condensation | |
| Storage humidity | 0% ~ 90%Relative humidity, no condensation | |
| Dimensions | Size | 170 x 170 mm |
| Weight | 0.5KG |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
