| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6822D-2TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ I3-2310M Processor Dual Cores 4 Threads 2.1Ghz | RAM: | Single Channel DDR3 1066/1333/1600MHz Up To 8GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*COM (5*RS232 COM, 1*RS-485/RS-422) | GPIO: | 8bit GPIO |
| Power: | Single DC 12V Power Supply | Size: | 170 X 170 Mm |
| Highlight: | X86 Mini Pc Motherboard,Mini Pc Motherboard 6COM,I3-2310M Dual LAN Motherboard |
||

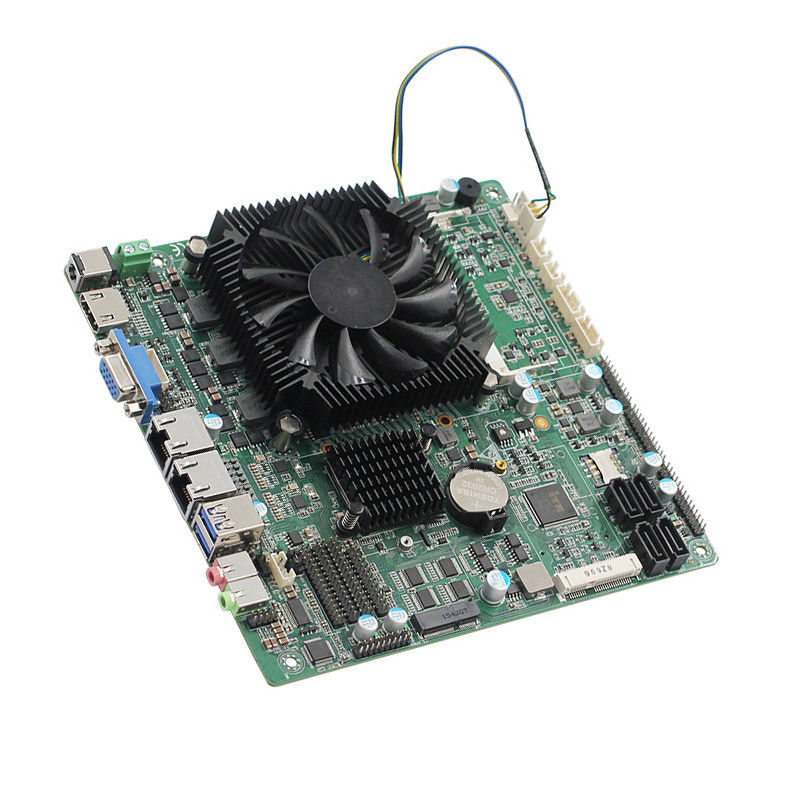

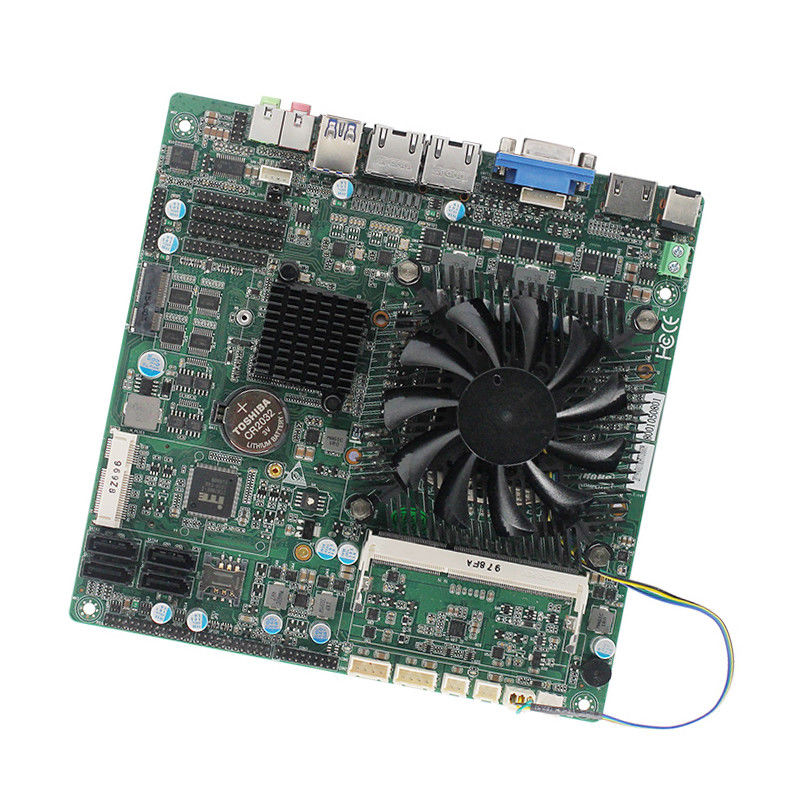

Dual Core i3-2310M x86 Industrial mini itx pc motherboard 6 COM dual LAN Queuing machine mainboard
Notice :
When you inquiry , you can choose the following Model :
ITX-P6822D-2TH-I3 , onboard Intel® Core™ Sandy Bridge i3-2310M Processor dual cores 4 threads 2.1Ghz
ITX-P6822D-2TH-I5 , onboard Intel® Core™ Sandy Bridge i5-2415M Processor dual cores 4 threads 2.3~2.9Ghz
ITX-P6822D-2TH-I7, onboard Intel® Core™ Sandy Bridge i7-2620M Processor dual cores 4 threads 2.7~3.4Ghz
Core™ i3-2310M x86 Industrial mini itx pc motherboard with plentiful interface 6 COM 2 LAN, 10 USB, Supports dual channel 24-bit output,
1* HDMI aximum resolution support 1920x1080, 1*VGA Maximum resolution support 2048x1536 , and Support 8-bit GPIO providing routines, freely defined input/output 3.3V@24mA level
Specifications
| Processor | CPU | Intel Mobile 2nd,3rd i3-i5-i7 CPU |
| CPU Package | RPGA988 | |
| Chipset | HM77 or QM77 | |
| BIOS | EFI BIOS | |
| Ram | Technical architecture | Single channel DDR3 1066/1333/1600MHz |
| Memory | 1*DDR3 SODIMM 204 Socket,Max support 8GB DDR3 memory,1066/1333MHz. | |
| Video | Graphic controller | Intel HD graphics 3000 (Graphics card type is related to CPU) |
| Dual LVDS | Supports dual channel 24-bit output | |
| HDMI | HDMI aximum resolution support 1920x1080 | |
| VGA | VGA Maximum resolution support 2048x1536 | |
| Dual display support | LVDS+VGA+HDMI Synchronous or asynchronous dual display (two out of three) | |
| Rear Panel I/O | Ports |
1*VGA 1*HDMI 2*LAN 2*USB3.0 2*USB2.0 1*MIC-OUT/LINE-OUT |
| Network | Controller | 1*RTL8111H Gigabit Ethernet,RJ45 port(can choose 2 lan port) |
| Audio | Controller | Realtek HD ALC662 audio decoding(Left and right channel + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware Monitor | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum + copper fan radiator | |
| Input/Output interfaces | USB | 10*USB2.0,2*USB3.0(When dual network cards are used, there are 8 USB2.0 and 2 USB3.0) |
| Com port | 6*com port(5*RS232 and 1*RS485/RS422,4*RS-232, 2*RS422/485 or 6*RS232,RS485 Support automatic flow direction control) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIe socket,support PCIE and USB device |
| NGFF | 1*NGFF port(KEY E) | |
| Storage | SATA | 3*standard SATAII interfaces, the maximum transmission rate is 3Gb / s, 1*SATAIII interface is SATA1, the maximum transmission rate is 6Gb / s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol,Maximum transmission rate 6gb/s | |
| Power supply | Power Type | Single Input DC Power Supply,DC12V,+/-5% |
| Working environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90%(non-condensing) | |
| Storage Humidity | 0% ~ 90%(non-condensing) | |
| System support | Windows XP Windows7 Windows8.1 Windows10 Linux | |
| Dimensions | Size | 170*170 mm |
| Weight | 0.6KG |
Warranty 1 Years
Shipping
Support DHL / UPS / FEDEX / TNT / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
