| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6801DPS2-CDV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel Atom® Processor D2550 Dual Cores 4 Threads 1.86Ghz Processor | RAM: | Integrated 2GB\4GB DDR3 |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | VGA+LVDS Synchronous Or Asynchronous Display |
| COM: | 6*COM | PS2: | Support PS2 Port |
| Size: | 170 X 170 Mm | Power: | Single DC 12V Power Supply |
| Highlight: | D2550 Mini Itx Industrial Motherboard,Mini Itx Industrial Motherboard 2G |
||

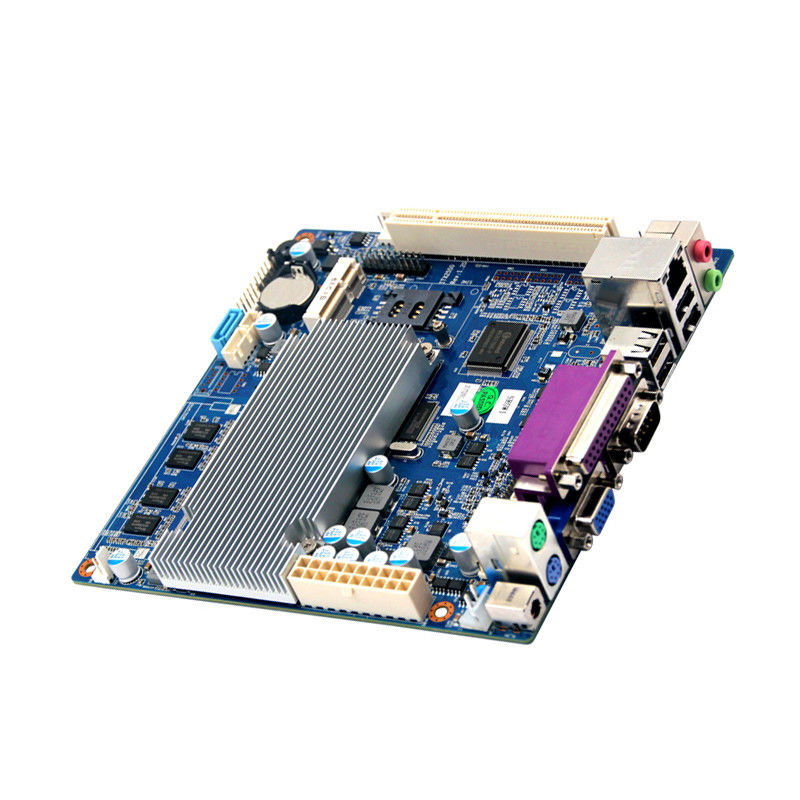

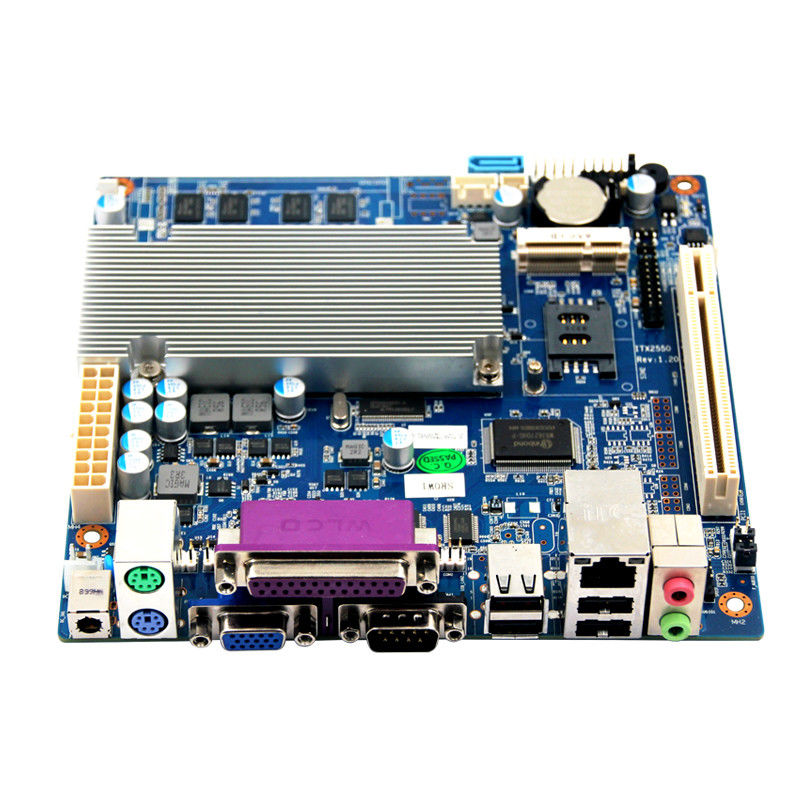

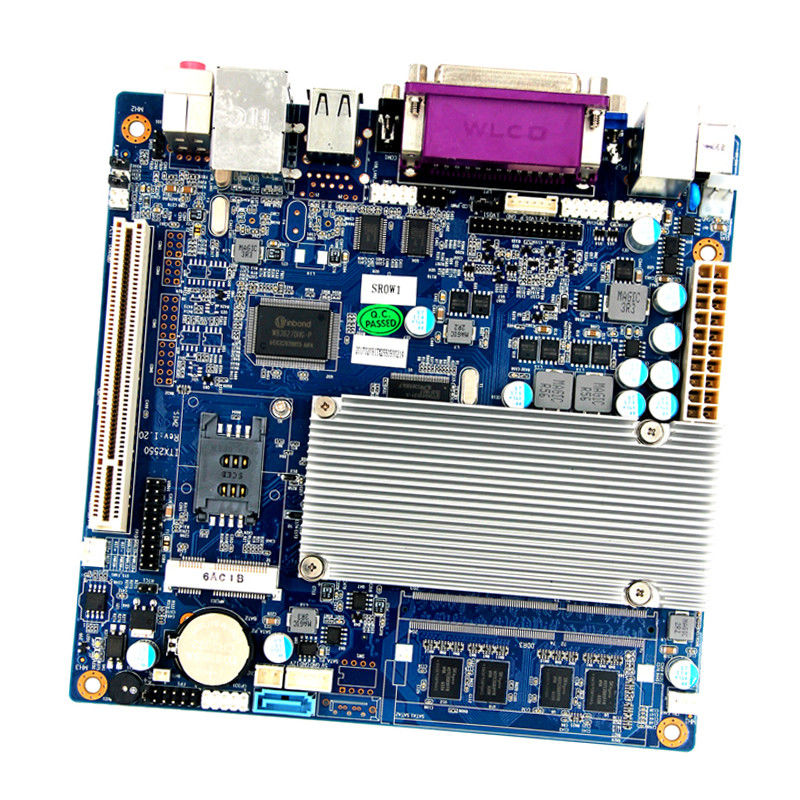

Mini-Itx industrial motherboard Dual core D2550 2G RAM 6COM with LPT, PS/2 port POS mainboard
Notice:
When you inquiry , you can choose the following Model
ITX-P6801DPS2-CDV-N2600 onboard Atom®N2600 Dual cores 4 threads 1.6Ghz processor
ITX-P6801DPS2-CDV-N2800 onboardAtom®N2800 Dual cores 4 threads 1.86Ghz processor
ITX-P6801DPS2-CDV-D2550 onboard Atom®D2550 Dual cores 4 threads 1.86Ghz processor
Mini-Itx industrial motherboard D2550 processor 6 COM , 8 USB , 2G RAM , with 1*LPT, 1*PS/2 POS mainboard
Support VGA+LVDS Synchronous or asynchronous display, DC12V power supply
Specifications
| Processor | CPU | Intel® Atom D2550/N2600/N2800 dual core processors |
| CPU Package | BGA559 | |
| Chipset | Intel NM10 Express Chipset (Intel CG82NM10 PCH) | |
| BIOS | AMI EMI 16MB SMT/DIP-SPI Flash ROM | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333MHz,maximum up to 4GB. |
| Capacity | 2GB/4GB | |
| Video | Graphic controller | Intel GMA3650 Graphics Core(DVMT Max 384MB) |
| LVDS | 24bit Single Channel LVDS | |
| VGA | Resolution maximum:1366*768 | |
| Double display support | Support VGA+LVDS Synchronous or asynchronous dual display | |
| Rear panel I/O | rear panel I/O | 1*VGA,1*LPT,1*RS232,1*LAN,4*USB2.0,1*PS/2, 1*MIC-OUT/LINE-OUT,1*DC |
| Network | Controller | RTL8111E-V LAN,support RTL/PXE diskless booting |
| Radio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan or Fanless | |
| Input/Output Interface | USB | 8*USB2.0 |
| Series | 4*RS232 ,2*RS232/485 optional, RS485 supported automatic flow control | |
| PS/2 | 1*PS/2 expansion header | |
| GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
| Extended bus | mPCle |
1*miniPCIE socket ,supported PCIE and USB device 1*PCI |
| SIM slot | 1*sim slots | |
| Storage | SATA | 2*SATA2.0 Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
| Power consumption | 35W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG |
Applications:
Industrial production control
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
