| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6801D-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Celeron® J1800 Dual Cores 2 Threads 2.41Ghz Processor | Memory: | Single Channel DDR3 1066/1333MHz |
|---|---|---|---|
| Network: | 1*Gigabit LAN | Video: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| Serial Port: | 6*COM | Form Factor: | 170 X 170 Mm |
| Power: | Single DC 12V Power Supply | ||
| Highlight: | Mini Itx Motherboard Fanless,Industrial Mini Itx Motherboard,J1800 fanless itx motherboard |
||

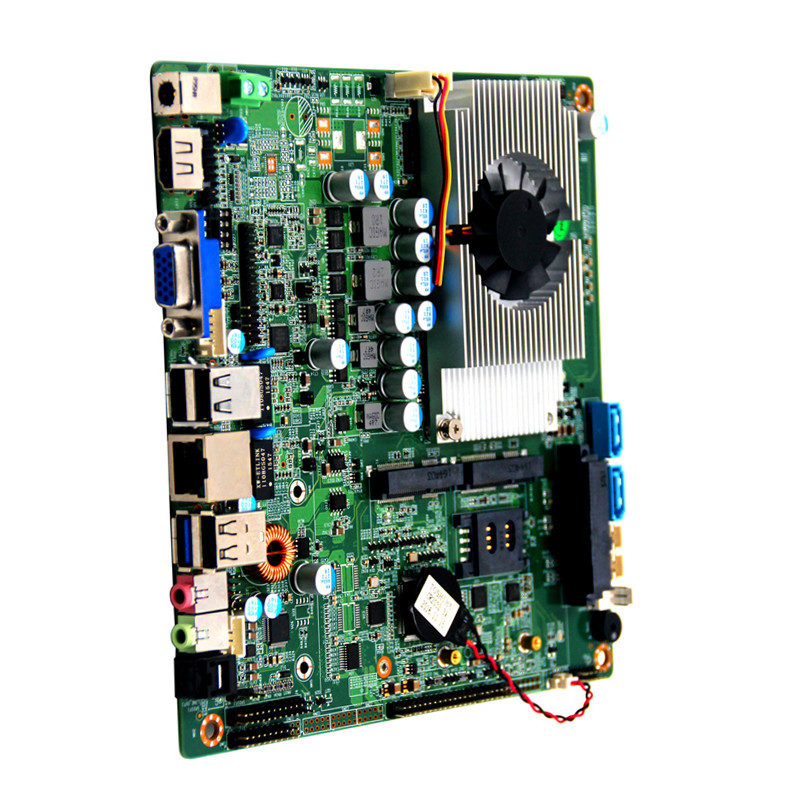

Mini Itx J1800 Industrial Fanless Motherboard Dual Display 6com Port Mainboard
Notice :
When you inquiry , you can choose one of the following :
ITX-P6801D-BT-J1800
ITX-P6801D-BT-J1900
ITX-P6801D-BT-N2806
ITX-P6801D-BT-N2900
Mini itx J1800 industrial Fanless motherboard dual display 6com port mainboard
Key features
Integrated Celeron® J1800 dual cores 2 threads 2.41Ghz processor
Single channel DDR3 1066/1333MHz
Integrated Intel HD Graphics
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support 2*SATAII
Support 1* M-SATA Scoket
Onboard EMMC 32/64/128G(Optional)
6*COM (5*RS232 COM, 1*RS-485/RS-422 )
8*USB2.0
1* Gigabit LAN
Support for touch screen (4wire 5wire 8wire )
DC 12V power supply
Dimension: 170mm X 170mm
Specifications
| Processor | CPU | Intel®4thAtomBaytrail-D/I/M N2806 /J1800/N2900/J1900/E3825/E3826/E3845 processor |
| CPU package | BGA | |
| Chipset | Baytrail-D/I/M Processor | |
| BIOS | EFI BIOS | |
| Memory | Technical architecture | Single Channel DDR3 1066/1333 MHz |
| Capacity | Onboard 2GB/4GB DDR3 | |
| Socket | Can add 1* RAM socket,Max. Up to 8GB | |
| Video | Graphic controller | Intel HD Graphics |
| Dual LVDS&EDP | LVDS support 24bit dual channel LVDS connector(Maximum supported 1920 x 1200)EDP Maximum supported 2560*1600(LVDS and EDP Display only can Alternative) | |
| VGA | VGA Maximum supported 2048x1536 | |
| HDMI | HDMI Maximum supported 1920x1080 | |
| Dual display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |

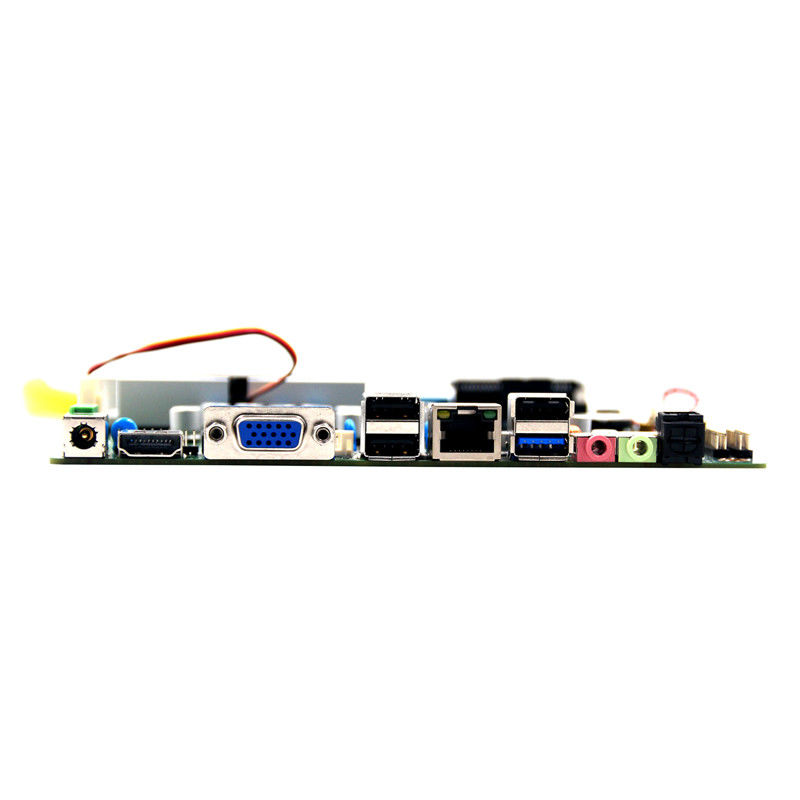

| Rear Panel I/O | Ports | 1*DC Power Supply Interface 1*VGA 1*HDMI 1*USB3.0 3*USB2.0 1*RJ45 port, 1*LINE OUT 1*MIC 1*Digital Audio Interface |
| Network | Controller | 1*RTL8111E-V PCI-E Gigabit Ethernet LAN,RJ45 ports,(dual LAN optional,Rear 2*USB) |
| Audio | Controller | Onboard Realtek HD ALC662 chipset(line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Input/Output interfaces | USB | 8*USB2.0,Max. supported 5V/1A |
| Serial port | 5*RS232/1* 422/485,RS485 supported automatic flow control | |
| PS/2 | 1*PS/2 Pin(Support PS/2 keyboard Mouse) | |
| Touch Screen | Support Touch Screen(4wire 5wire 8wire When Touch screen use,USB7 8pins only can use 1 group) | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 2*Mini-PCIe socket,support PCIe,USB device |
| Storage | SATA | 2*SATAII interface(Maximum transmission rate to 3gb/s) |
| M-SATA | 1* M-SATA Scoket,support SANDISK protocol(Maximum transmission rate to 3gb/s) | |
| EMMC | 32/64/128G(Optional) | |
| Power Supply | Power Type | Single-input DC power supply,DC 12V Power Supply |
| Power Consumption | 20W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG |
Warranty 1 year
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
