| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6801D-H61 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | LGA1155 Intel® 3th I3-i5-i7 CPU | RAM: | 2*DDR3 1066/1333/1600Mhz Up To 16GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | DVI+ VGA, DVI+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*COM | Size: | 170 X 170 Mm |
| Power: | Single DC 12V Power Supply |

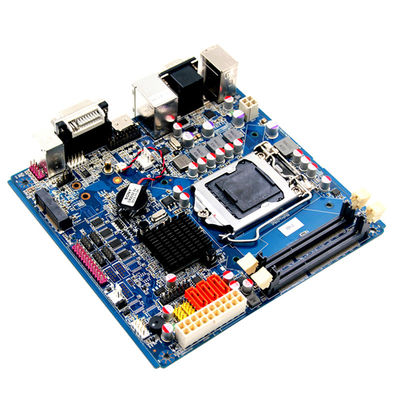

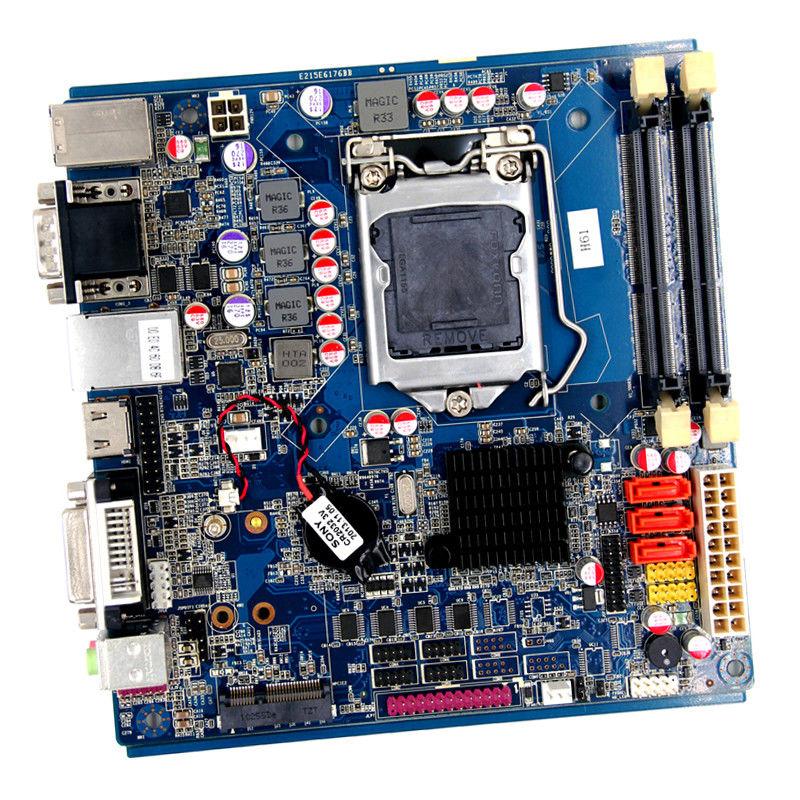

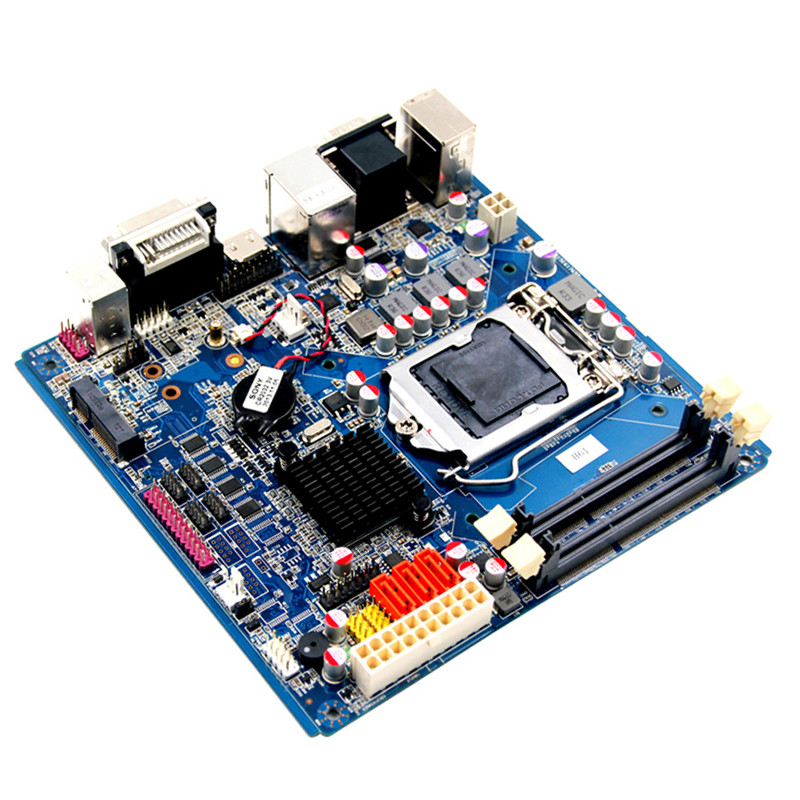

Intel H61mini-itx motherboards LGA1155 6COM 8USB DDR3 industrial Laptop mainboards 3*SATA2.0 with DVI, HDMI, VGA
Key features
Support LGA1155 Intel® 3th i3-i5-i7 CPU
Intel® H61 Express Chipset
Dual Channel DDR3 1066/1333/1600Mhz up to 16GB
Integrated Intel® HD Graphics
Support DVI+ VGA, DVI+HDMI, HDMI+VGA Synchronous or asynchronous display
6*COM
1*Gigabit LAN
8*USB2.0
3* SATA2.0
1* M-SATA Scoket
Mini-itx 170 x 170 mm
Single input DC12V power supply
Specifications
| Processor | CPU | Intel 3th i3-i5-i7 CPU(LGA1155 CPU) |
| CPU Package | LGA 1155 Socket | |
| Chipset | Intel H61 | |
| BIOS | EUFI BIOS | |
| RAM | Technology framework | Dual Channel DDR3 1066/1333/1600Mhz |
| Capacity | SO-DIMM socket,maximum up to 16GB | |
| Socket | 2*RAM socket | |
| Video | Graphic controller | Intel HD Graphic 2500 or Other(According to CPU model) |
| HDMI | Resolution maximum:1920*1200 | |
| DVI | Resolution maximum:2560x1600,60Hz | |
| VGA | Resolution maximum:2048x1536,60Hz | |
| Double display support | DVI+ VGA,DVI+HDMI,HDMI+VGA,Synchronous or asynchronous display | |
| I/O Back Panel | Ports | 1*PS/2 4*USB 2*COM 1*DVI 1*VGA 1*HDMI 1*adiuo 1*MIC 1*GLAN |
| Network | Controller | RTL8111EL LAN,support RTL/PXE diskless booting |
| Audio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Super I/O | Controller | |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Standard H61 Fan | |
| Input/Output Interface | USB | 8*USB2.0, Max. Current supported 5V/1A |
| Serial ports | 5*RS232 ,1*RS422/485 optional, RS485 supported automatic flow control | |
| GPIO | 16bit,Free definition of input/output,3.3V@24mA | |
| Extended bus | Mini-PCle | 1*miniPCIE socket ,supported WIFI and 3G |
| Storage | SATA | 3*SATA2.0 Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Support sysytem | Windows7 Windows 10 Linux | |
| Dimension | Form Factor | Mini-itx |
| Size | 170 x 170 mm | |
| Power Supply | Power Type | Single input DC power supply ,DC12V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% non-condensing | |
| Storge humidity | 0% ~ 90% non-condensing |
