| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6522D-BRS |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® Processor N3160 Quad Cores 4 Threads 1.6Ghz Processor | RAM: | Onboard 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | VGA+HDMI Dual Display |
| COM: | 6*RS-232 Or 4*RS232, 2*RS422/RS485 | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | 2LAN Mini Itx Motherboard,N3160 Mini Itx Motherboard,N3710 Quad Core Motherboard |
||

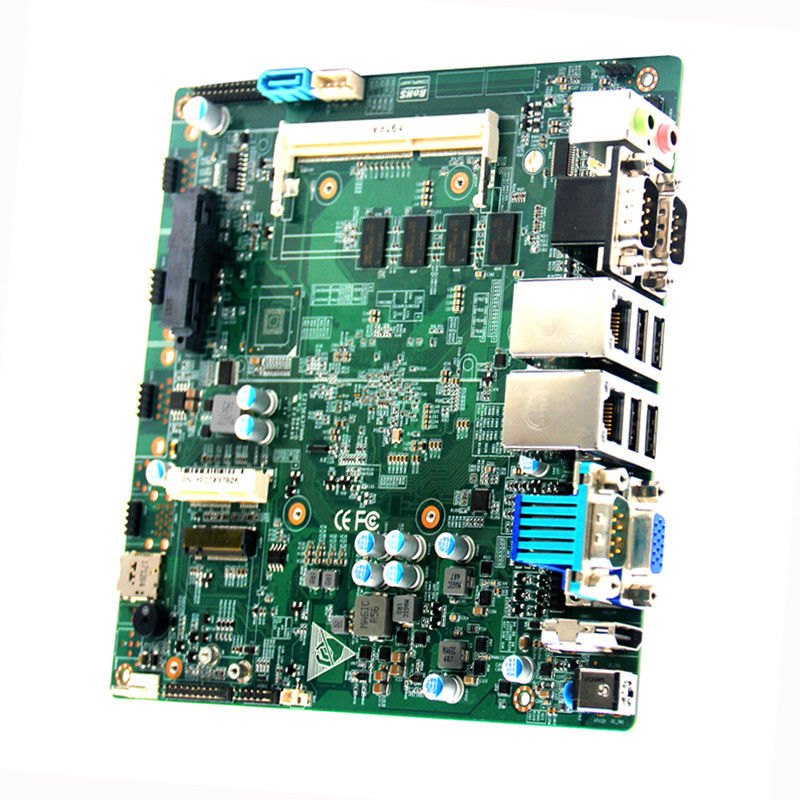

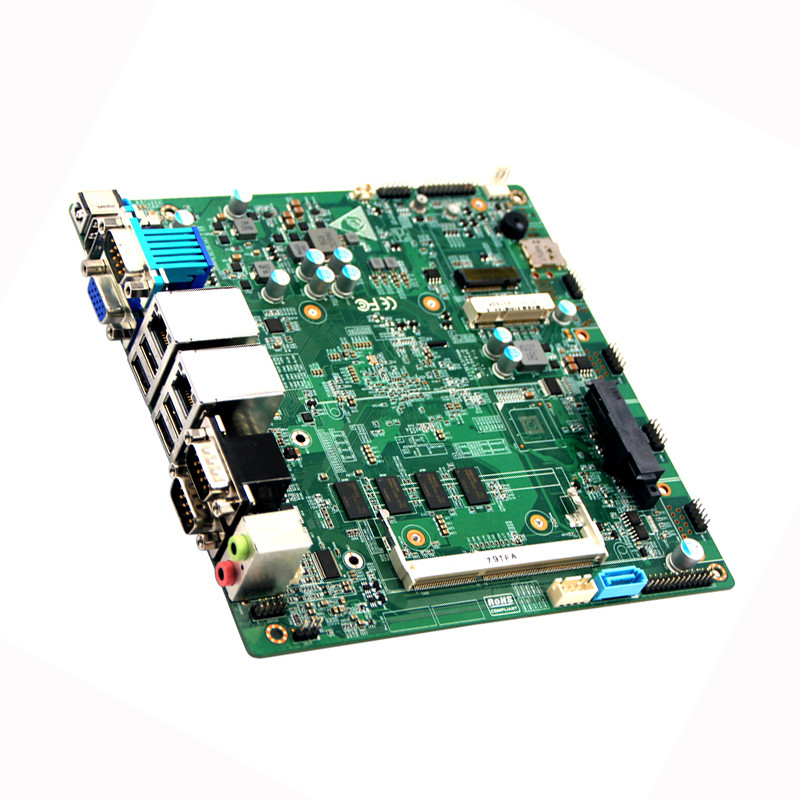

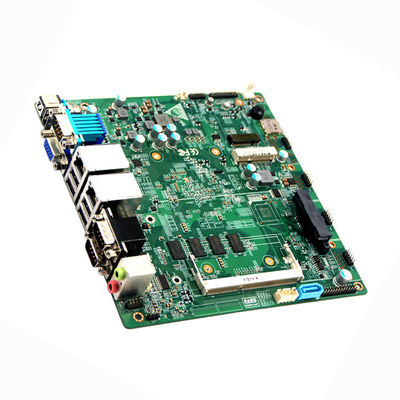

Intel ® Braswell Quad Core N3160 / N3710 Mini ITX Motherboard Onboard 4GB Ram 2LAN Industrial Computer
Notice:
When you inquiry , you can choose one of the following Model
ITX-P6522D-BRS-N3160 Integrated Celeron® Processor N3160 quad cores 4 threads 1.6~2.24Ghz processor
ITX-P6522D-BRS-N3710 Integrated Celeron® Processor N3710 quad cores 4 threads 1.6~2.56Ghz processor
intel ® Braswell quad core N3160 mini ITX motherboard onboard 4GB Ram 2LAN industrial computer
Key features
Integrated Celeron® Processor N3160 quad cores 4 threads 1.6Ghz processor
Single Channel DDR3 1066/1333MHz
Integrated 2GB4GB DDR3
Integrated Intel® HD Graphics
Support VGA+HDMI dual display support synchronous and asynchronous
6*RS-232 or 4*RS232, 2*RS422/RS485
2*Gigabit LAN
5*USB2.0
2*USB3.0
1 * SATAIII interface
1 * M-SATA Scoket
Mini-itx 170 x 170 mm
Single input DC 12V power supply
Specifications
| Processor | CPU |
Support Intel Braswell series processor Integrated Celeron® Processor N3160 quad cores 4 threads 1.6Ghz processor Burst Frequency 2.24Ghz |
| CPU Package | BGA | |
| Chipset | Intel Braswell single chip | |
| BIOS | EFI BIOS | |
| Ram | Technical architecture | Single Channel DDR3 1066/1333MHz |
| Capacity | Integrated 2GB4GB DDR3 | |
| RAM Socket | 1 slot can be added, maximum 8GB memory expansion | |
| Video | Graphic controller | Intel HD Graphics |
| VGA | VGA supports a maximum resolution of 2048x1536 | |
| HDMI | The maximum resolution supports 2560×1600 | |
| Double display support | VGA+HDMI dual display support synchronous and asynchronous | |

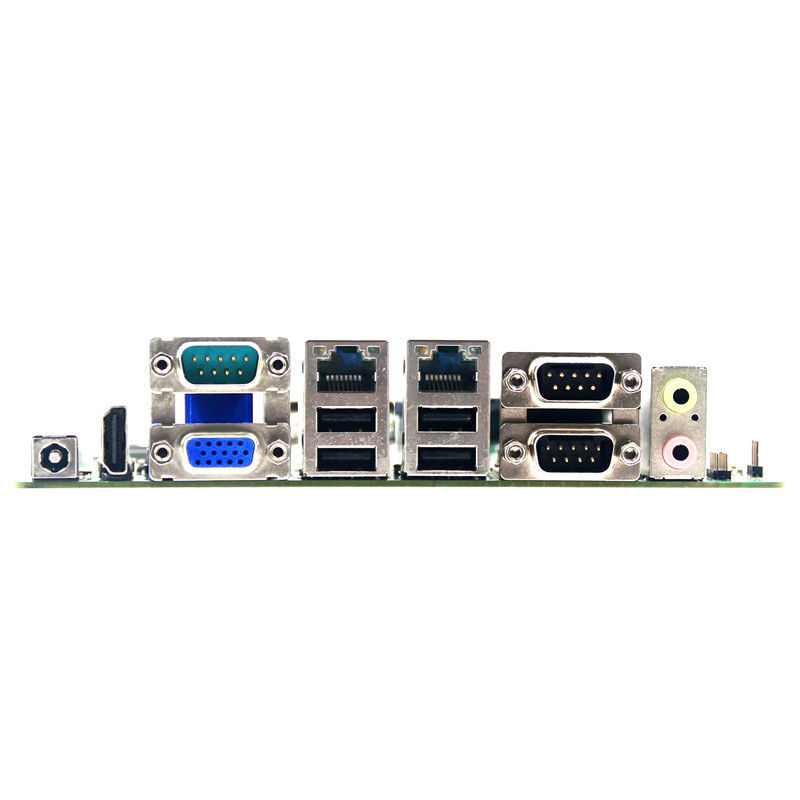

| I/O Panel | Ports | 1*VGA 1*HDMI 4*USB2.0 2*USB3.0 6*COM 2*RJ45 network card 1*LINE OUT 1*MIC IN 1*DC interface 1*Quick switch button with indicator light 1*Hard disk indicator light 1*Power indicator light 1*Reset button |
| Network | Controller | 2 RTL8111E Gigabit Ethernet |
| Audio | Controller | Rui Qi HD ALC662 audio decoding (left and right channels + microphone) |
| Super I/O | Controller | IT8786E |
| Hardware Monitor | Watchdog-Timer | 0-255 seconds, providing watchdog routines |
| Cooler | The default is no fan (optional fan) | |
| Input/Output interfaces | USB | 5*USB2.0, 2*USB3.0 maximum support +5V/1A |
| Serial port | 6*RS-232 or 4*RS232, 2*RS422/RS485 (alternative) | |
| PS/2 | 1*PS/2 Pin interface | |
| GPIO | 8-bit, Sample Routine, Freely Defined Input/Output, 3.3V @ 24mA Level | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe slot supporting PCIe and USB devices |
| Storage | SATA | 1*standard SATAIII interface, maximum transfer rate 6Gb/s (and SATA_HDD interface select one) |
| M-SATA | 1*M-SATA Scoket, support SANDISK protocol, maximum transmission rate 6gb/s | |
| SATA_HDD | 1*SATA_HDD interface (and SATA interface select one) | |
| NGFF | 1*NGFF interface (support WIFI and 3G/4G module) | |
| Power supply | Power Type | DC12V power supply |
| Power Consumption | 20W | |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Working temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| MEASURE | Size | 170 x 170 mm |
