| CPU: | Intel® Broadwell I3-5005U I5-5200U I7-5500U | RAM: | Onboard 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS+VGA+HDMI Three-screen Synchronous Or Asynchronous Display |
| COM: | 6*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | Dual Gigabit Ethernet Motherboard 6Com,Dual Gigabit Ethernet Motherboard 2Lan,4GB dual ethernet motherboard |
||

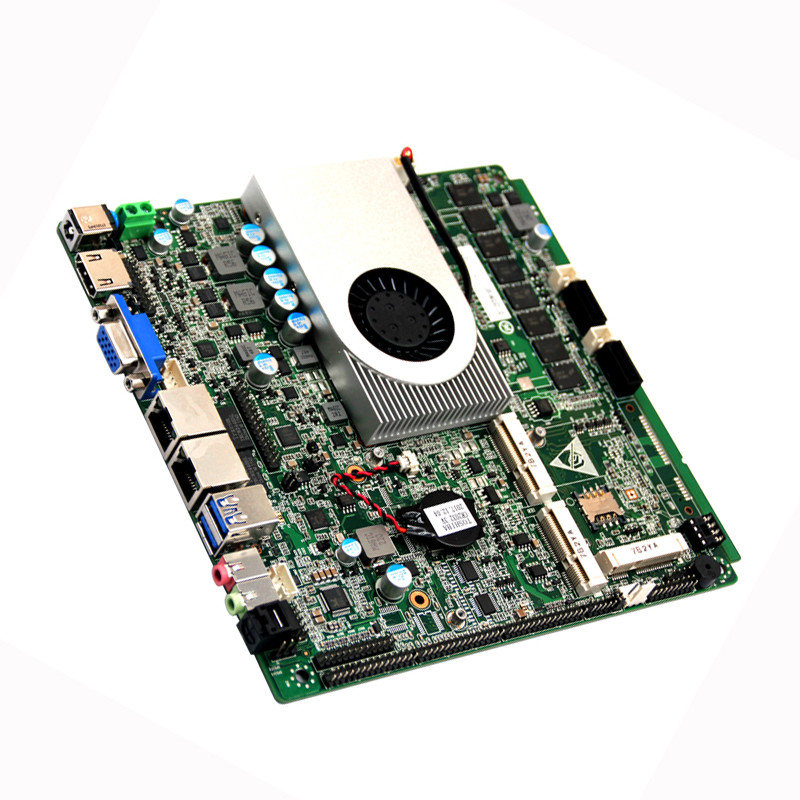

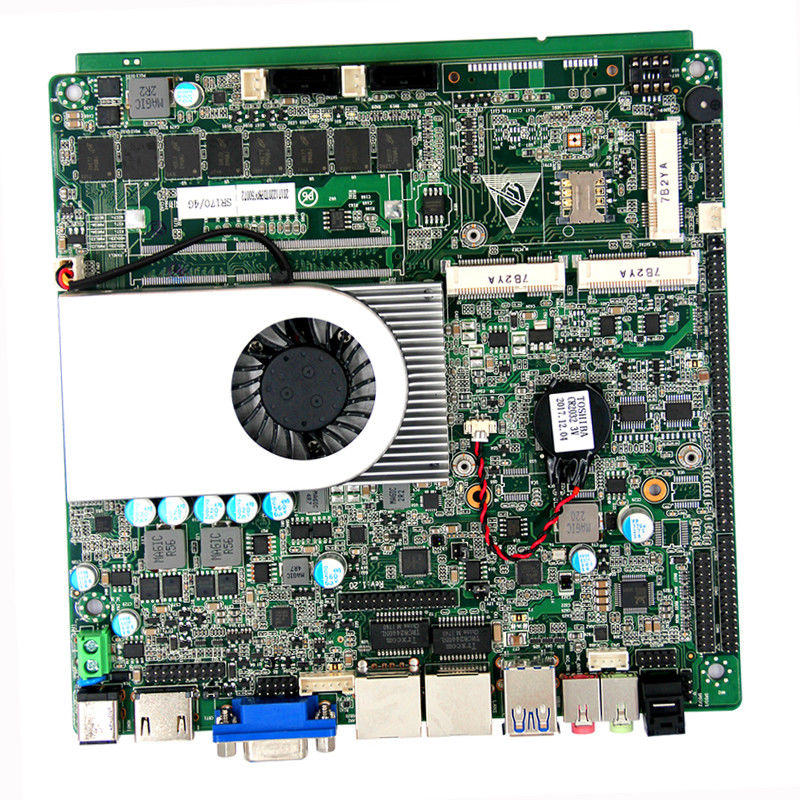

Broadwell i3-5005U i5-5200U i7-5500U mini itx industrial motherboard 6 com 2 lan POS mainboard onboard 4GB Memory
Notice :
When you inquiry , you can choose the following Model :
ITX-P6522D-5TH-I3 ,onboard Intel® Broadwell i3-5005U dual cores 4 threads 2.0 Ghz processor (or i3-5010U, 2.1Ghz)
ITX-P6522D-5TH-I5 ,onboard Intel® Haswell-U i5-5200U dual cores 4 threads 2.2~2.7Ghz processor (or i5-5257U, 2.7~3.1Ghz)
ITX-P6522D-5TH-I7, onboard Intel® Haswell-U i7-5500U dual cores 4 threads 2.4~3.0Ghz processor (or i7-5557U, 3.1~3.4Ghz)
Key features
Integrated Intel® Broadwell i3-5005U / i5-5200U / i7-5500U processor
Single Channel DDR3L 1066/1333/1600MHz up to 8GB
Onboard 2GB / 4GB DDR3L
Integrated Intel® HD Graphics 5500
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support LVDS+VGA+HDMI Three-screen synchronous or asynchronous display
6*COM
2*Gigabit LAN
5*USB2.0
2*USB3.0
2* SATA3.0
1* M-SATA Scoket
Mini-itx 170 x 170 mm
DC 12V Power supply
Warranty 1 year
Specifications
| Processor | CPU | Integrated Intel® Core™ 5th Mobile Broadwell-U Soc i3/i5/i7 CPU |
| CPU package | BGA | |
| Chipset | Intel Haswell-U series SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology architecture | Single Channel DDR3L 1066/1333/1600MHz |
| Capacity | Onboard 2GB4GB DDR3L | |
| RAM Slot | 1x RAM slot ,max. 8GB RAM | |
| Video | Graphics controller | Intel HD Graphics 5500(I3-5010U graphics card)The graphics card is related to the CPU |
| Dual LVDS&EDP | Dual-channel 24bit LVDS to max. 1920 x 1200 resolutions, ED Psupport max. Resolutions 3200*2000(Optional) | |
| VGA | VGA max support 2048*1536 resolution | |
| HDMI | HDMI(HDMI1.4)max.resolution :3200*2000@60HZ,Support 4K display | |
| Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| Three Display | Support LVDS+VGA+HDMI Three-screen synchronous or asynchronous display | |
| I/O Panel Port | Ports | 1*VGA,1*HDMI,1*LAN,4*USB3.0/1*MIC-OUT/LINE-OUT,1*SPDIF |
| Network | CONTROLLER | 2*RTL8111E-V Gigabit Ethernet Port,RJ45Port |
| Audio | CONTROLLER | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | CONTROLLER | NCT6106D |
| Hardware controller | Watchdog timer | 0-255 Seconds, providing a watchdog routine |
| Cooler | Alluminum Alloy heat sink with Fan(Support automatic and manual fan speed adjustment) | |
| Input/output Port | USB | 2*USB3.0 compatible USB2.0 / 1.1,5*USB2.0,max. Support +5V/1A (When choose 2 Lan card,have 3*USB2.0) |
| Serial port | 4*RS-232, 2*RS422/485,RS485 Support automatic flow control(can choose 6*RS232) | |
| PS/2 | 1*PS/2 pin headrer | |
| Touch Panel | Support touch screen(4wire 5wire 8wire Mini-PCIE2 can use USB singale device,touch screen can’t use) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Expansion Bus | Mini-PCle | 2*Mini-PCIe slot,Support PCIe and USB device(Touch screen can use,Mini-PCIE2 only can use PCIE singal device) |
| Storage | SATA | 2*SATA3.0 , 6GB/s maximum speed |
| Onboard SSD&SATA HDD1 | Onboard SSD or SATA HDD1(Optional) | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol , 6gb/s maximum | |
| Power supply | Power type | Single DC input,DC12V,+/-5% |
| Power consumption | 35W | |
| Working Environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90% (non-condensing) | |
| Storage Humidity | 0% ~ 90% (non-condensing) | |
| Form factor | Size | 170 x 170 mm |
| Weight | 0.5KG |
Applications:
Industrial production control
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
