| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6521D-4TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Haswell-U I7-4500U Dual Cores 4 Threads 1.8Ghz Processor | RAM: | Onboard 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*COM (4*RS-232, 2*RS422/485) | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | Itx Industrial PC Motherboard,Industrial PC Motherboard I7-4500U,Industrial Mini PC Motherboard |
||

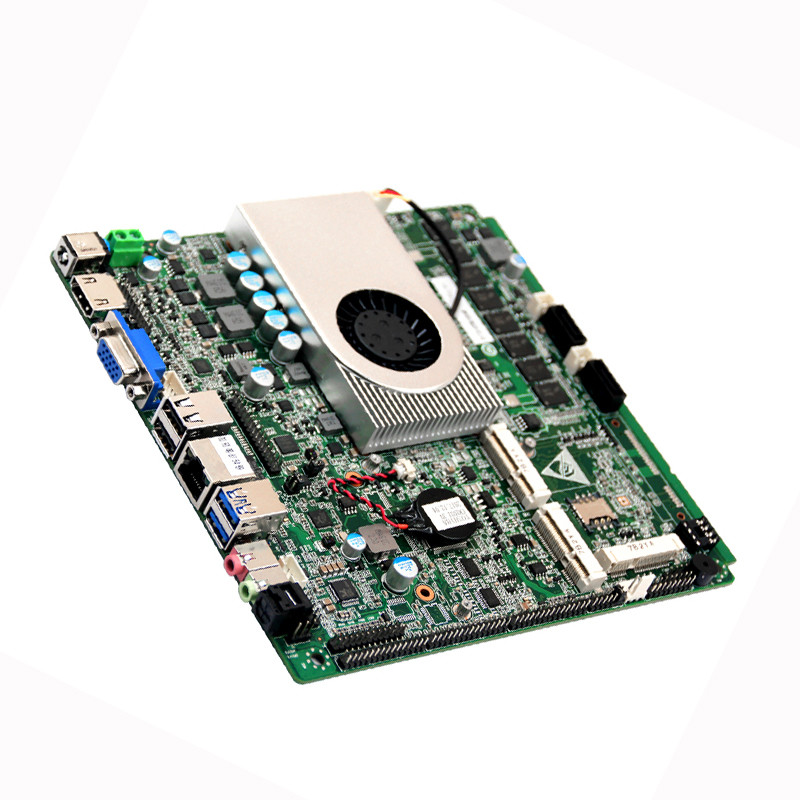

Haswell-U i7-4500U dual cores mini itx industrial pc motherboard 6 COM onboard 4G ram support touch screen
Notice
When you inquiry , you can choose one of the following Model
ITX-P6521D-4TH-I3 ,Integrated Intel® Haswell-U i3-4010U dual cores 4 threads 1.7Ghz processor
ITX-P6521D-4TH-I5 ,Integrated Intel® Haswell-U i5-4200U /4300U dual cores 4 threads 1.6~2.6Ghz /1.9~2.9Ghz processor
ITX-P6521D-4TH-I7, Integrated Intel® Haswell-U i7-4500U dual cores 4 threads 1.8~3.0Ghz processor
Haswell-U i7-4500U dual cores mini itx industrial pc motherboard 6 COM onboard 4G ram support touch screen
Key features
Integrated Intel® Haswell-U i7-4500U dual cores 4 threads 1.8Ghz processor
Single Channel DDR3L 1066/1333/1600MHz
Onboard 2GB4GB DDR3L
Intel HD Graphics 4400
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
4*RS-232, 2*RS422/485
1*Gigabit LAN
5*USB2.0
2*USB3.0
2 * SATAIII interface
1 * Mini-PCIe M-SATA Scoket
Support touch panel 4wire 5wire 8wire(optional)
Mini-itx 170 x 170 mm
DC 12V Power supply
Specifications
| Processor | CPU |
Intel® Core™ 4th Mobile Haswell-U Soc i3/i5/i7 CPU Integrated Intel® Haswell-U i7-4500U dual cores 4 threads 1.8Ghz processor Max Turbo Frequency 3.0Ghz |
| CPU package | BGA | |
| Chipset | Intel Haswell-U series SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology architecture | Single Channel DDR3L 1066/1333/1600MHz |
| Capacity | Onboard 2GB4GB DDR3L | |
| RAM Slot | 1x RAM slot ,max. 8GB RAM | |
| Video | Graphics controller | Intel HD Graphics 4400(I3-4010U graphics card)The graphics card is related to the CPU |
| Dual LVDS&EDP |
Dual-channel 24bit LVDS to max. 1920 x 1200 resolutions EDP support max. Resolutions 3200*2000(Optional) |
|
| VGA | VGA max support 2048*1536 resolution | |
| HDM(I) | HDM(I)(HDM(I)1.4)max.resolution :3200*2000@60HZ,Support 4K display | |
| Dual display | LVDS + VGA,LVDS+HDM(I),HDM(I)+VGA Synchronous or asynchronous display | |
| Three Display | Support LVDS+VGA+HDMI Three-screen synchronous or asynchronous display | |
| I/O Panel Port | Ports | 1*VGA,1*HDMI,1*LAN,4*USB3.0/1*MIC-OUT/LINE-OUT,1*SPDIF |
| Network | CONTROLLER | 1*RTL8111E-V Gigabit Ethernet Port,RJ45Port(can choose 2 Lan) |
| Audio | CONTROLLER | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | CONTROLLER | NCT6106D |
| Hardware controller | Watchdog timer | 0-255 Seconds, providing a watchdog routine |
| Cooler | Alluminum Alloy heat sink with Fan(Support automatic and manual fan speed adjustment) | |
| Input/output Port | USB | 2*USB3.0 compatible USB2.0 / 1.1,5*USB2.0,max. Support +5V/1A (When choose 2 Lan card,have 3*USB2.0) |
| Serial port | 4*RS-232, 2*RS422/485,RS485 Support automatic flow control(can choose 6*RS232) | |
| PS/2 | 1*PS/2 pin headrer | |
| Touch Panel | Support touch screen(4wire 5wire 8wire Mini-PCIE2 can use USB singale device,touch screen can’t use) | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| Expansion Bus | Mini-PCle | 2*Mini-PCIe slot,Support PCIe and USB device(Touch screen can use,Mini-PCIE2 only can use PCIE singal device) |
| Storage | SATA | 2*SATA3.0 , 6GB/s maximum speed |
| Onboard SSD&SATA HDD1 | Onboard SSD or SATA HDD1(Optional) | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol , 6gb/s maximum | |
| Power supply | Power type | Single DC input,DC12V,+/-5% |
| Power consumption | 35W | |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%Relative humidity, no condensation | |
| Storage humidity | 0% ~ 90%Relative humidity, no condensation | |
| Dimensions | Size | 170 x 170 mm |
| Weight | 0.5KG |
