| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6442D-4THM |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ Haswell I5-4210M Processor Dual Cores 4 Threads 2.6Ghz | RAM: | Onboard 2GB/4GB DDR3L |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*RS232 COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | Dual Lan Port Motherboard I3,Dual Lan Port Motherboard I5,I7 dual lan motherboard |
||

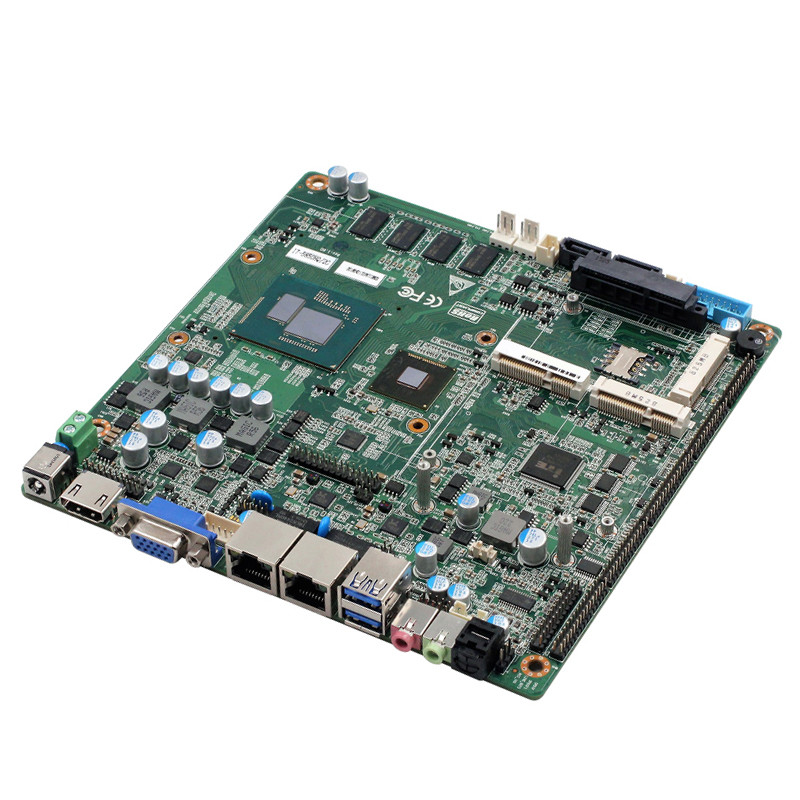

Intel® 4th Haswell I3 I5 I7 QM87 industrial motherboard 2 RTL8111E Gigabit Lan 6COM Port
Notice :
When you inquiry , you can choose the following Model :
ITX-P6442D-4THM-I3 , onboard Intel® Core™ Haswell i3-4000M Processor dual cores 4 threads 2.4Ghz
ITX-P6442D-4THM-I5 ,onboard Intel® Core™ Haswell i5-4210M Processor dual cores 4 threads 2.6~3.2Ghz
ITX-P6442D-4THM-I7, onboard Intel® Core™ Haswell i7-4710HQ Processor Quad cores 8 threads 2.5~3.5Ghz
In-tel 4th Haswell I3 I5 I7 Processor QM87 industrial motherboard 2*RTL8111E Gigabit Lan 6COM Port onboard 4GB RAM
Key features
The Model No. ITX-P6442D-4THM-I5 Integrated Intel® Core™ Haswell i5-4210M Processor dual cores 4 threads 2.6~3.2Ghz, 4GB memory
Support LVDS VGA H-D-M-I Synchronous or asynchronous display with plentiful interface such as Dual Nic, 6 COM , 10 USB, 8Bit GPIO, DC power , 170mm X 170mm
Specifications
| Processor | CPU |
Intel Mobile 4/5th Haswell/Broadwell-H i5-i7 CPU( 5th only have I7) Integrated Intel® Core™ Haswell i5-4210M Processor dual cores 4 threads 2.6Ghz Max Turbo Frequency 3.2Ghz |
| CPU package | BGA | |
| Chipset | QM87/HM86/HM87 | |
| BIOS | UEFI BIOS | |
| Ram | Technology Architecture | Single channel DDR3 1066/1333/1600MHz |
| Capacity | Integrated 2GB4GB DDR3 | |
| RAM Slot | 1*Ram socket max expansion 12gb | |
| Video | Graphic Controller | Intel HD Graphics 4600 or above;Graphic core depends on CPU |
| Dual LVDS and EDP | Support dual channel 24bits output,Max support resolution :1920 x 1200 EDP max support resolution 3840*2160(only pick one of two) | |
| HDMI | Max support resolution HDMI(1.4)3840*2160 | |
| VGA | VGA support max resolution:2880*1800((depends on CPU) | |
| Dual display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| Triple display support | LVDS+HDMI+VGA Synchronous or asynchronous display | |
| I/O backpanel | Interface | 1*VGA,1*HDMI,2*LAN,2*USB3.0,1*line-OUT/MIC_IN 1*SPDIF |
| NETWORK | CONTROLLER | 2*RTL8111E gigabit lan Port,RJ45 port(When the rear is 2 sets of USB interfaces, only with 1*the network card ,) |
| AUDIO | CONTROLLER | REALTEK HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | CONTROLLER | IT8786E |
| HARDWARE MONITORING | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum + copper fan radiator | |
| I/O | USB | 4*USB3.0 compatible with USB2.0/1.1 (2 for pin header), 6*USB2.0 2 for standard USB interface, 4 for pin header (when 2 NICs, 6 USB2.0) All for pin headers) |
| Com | 5 RS-232, 1 RS422/485 optional, RS485 supports automatic flow control | |
| PS/2 | 5×2 2mm Pin | |
| Touch panel | Support touch screen(4wire 5wire 8wire) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| EXPANSION BUS | Mini-PCle | 2 Mini-PCIe slots for PCIe and USB devices |
| STORAGE | SATA | 2 standard SATA3.0 interfaces (only 1 SATA3.0 when the chipset is HM86) |
| SATA_HDD | 1 SATA_HDD (SATA2.0) interface | |
| M-SATA | 1*M-SATA deck (SATA3.0) | |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W | |
| WORKING ENVIRONMENT | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Working Humidity | 0% ~ 90%relative humidity, No condensation | |
| Storage Humidity | 0% ~ 90%relative humidity, No condensation | |
| MEASURE | Size | 170 x 170 mm |
| Weight | 0.5KG |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Warranty 1 year
