| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6441D-H81 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | LGA1150 Interface Intel 4th I3-i5-i7/Pentium/Celeron CPU | Memory: | Onboard 2GB/4GB DDR3L |
|---|---|---|---|
| Network: | 1*Gigabit LAN | Video: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| Serial Port: | 6*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | H81 Dual Core Processor Motherboard,Dual Core Processor Motherboard 6Com,X16 dual core motherboard |
||

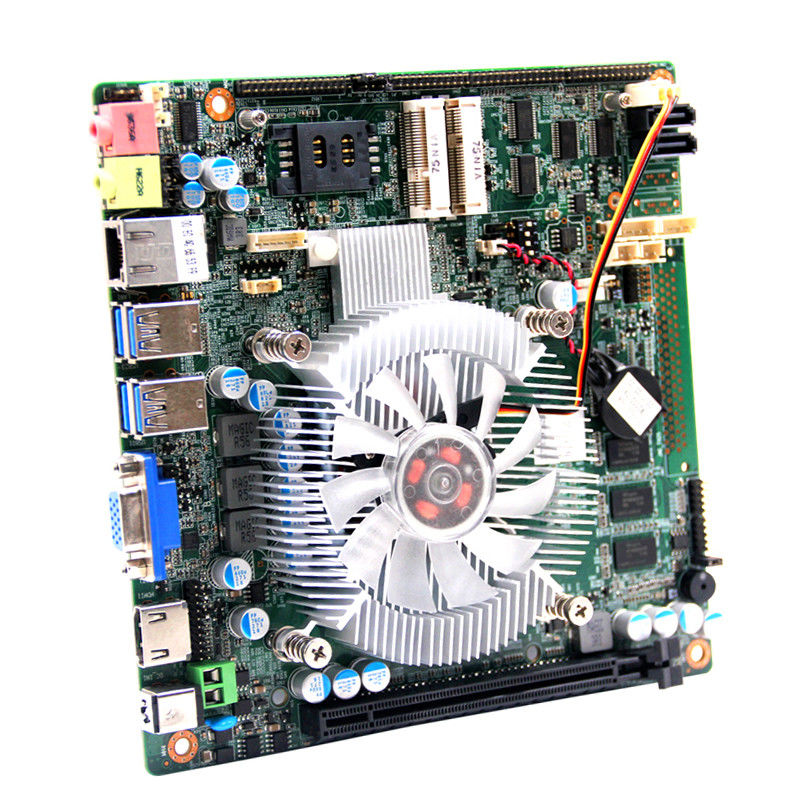

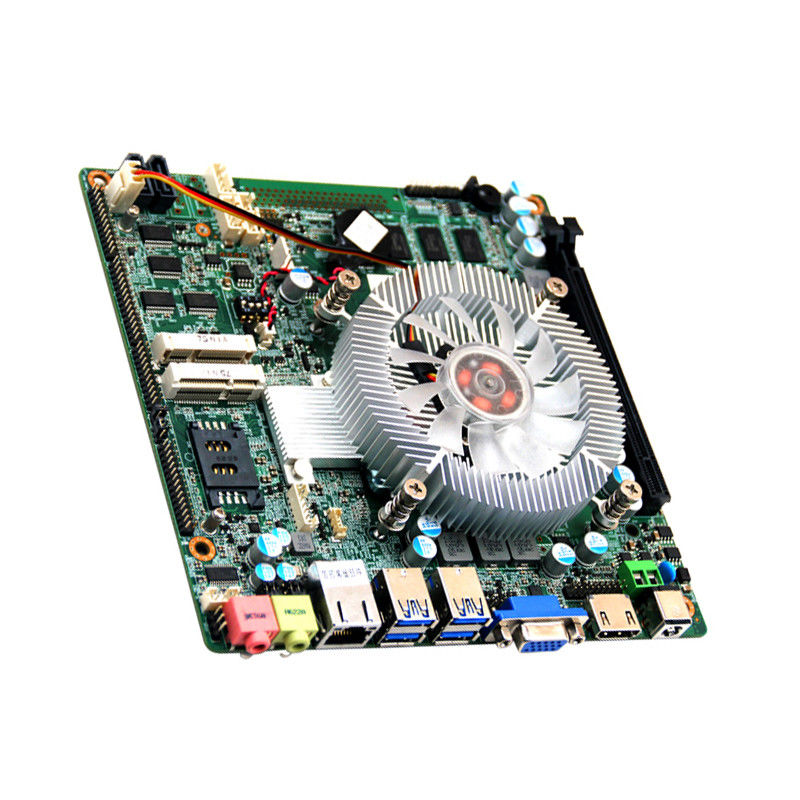

Haswell H81 Chipset mini itx industrial pc motherboard 6 com With PCIE X16 GPIO
Haswell Dual Core H81 Chipset motherboard lga 1150 4*USB3.0/USB2.0,4*USB 2.0 6*Serial port 8*GPIO industrial motherboards
With 1*PCIE X16
Key features
Support LGA1150 interface Intel 4th i3-i5-i7/Pentium/Celeron CPU
Intel® H81/HM86 Express Chipset Optional
Signal Channel DDR3 1066/1333/1600Mhz
Onboard 2GB/4GB DDR3L
Integrated Intel® HD Graphics
Support LVDS / VGA / HDMI display
6*COM
1*Gigabit LAN
4*USB2.0
4*USB3.0
4* SATA3.0
1* M-SATA Scoket
1*PCIe X16
Mini-itx 170 x 170 mm
DC 12V Power supply
Specifications
| Processor | CPU | Support LGA1150 processor, Intel 4th i3-i5-i7 CPU (optional) |
| CPU Package | BGA | |
| Chipset | Intel® H81/HM86 Express Chipset Optional | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333/1600Mhz |
| Capacity | Onboard 2GB/4GB DDR3L,maximum up to 8GB | |
| Socket | 1*PCIE 16X port | |
| Video | Graphic controller | Intel HD Graphics 3000/4000(According to CPU model) |
| Dual LVDS | Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200 | |
| HDMI | Resolution maximum:1920*1200 | |
| VGA | Resolution maximum:2048x1536 | |
| Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |

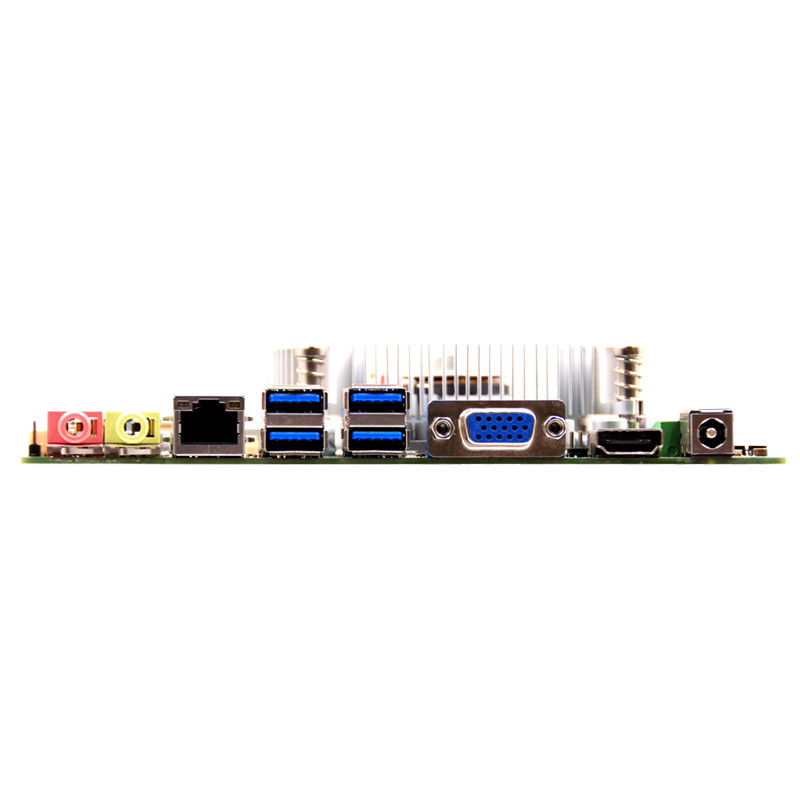

| I/O Back Panel | Ports | 1*HDMI,1*VGA,1*LAN.4*USB3.0,,1*MIC-OUT/LINE-OUT,1*DC |
| Network | Controller | 1*RTL8111E-V 1000M LAN,RJ45 ports |
| Audio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Standard H81 Fan | |
| Input/Output Interface | USB | 4*USB3.0/USB2.0,4*USB 2.0 expansion header),Max. supported 5V/1A |
| Serial ports | 4*RS232 ,2*RS422/485 optional, RS485 supported automatic flow control | |
| PS/2 | No. | |
| GPIO | 8*GPIO expansion header(8 bit),Free definition of input/output,3.3V@24mA electrical level | |
| Extended bus | Mini-PCle | 2*Mini-PCIE socket,Support PCIe and USB Device |
| Storage | SATA | 4*SATAIII Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V,+/-5%,Support AT/ATX power supply |
| Power Consumption | 35W | |
| Working Environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90% (non-condensing) | |
| Storage Humidity | 0% ~ 90% (non-condensing) | |
| Form factor | Size | 170 x 170 mm |
| Weight | 0.5KG |
Applications:
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
Industrial production control
Industrial manufacture
POS machine motherboard
Queuing machine motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
